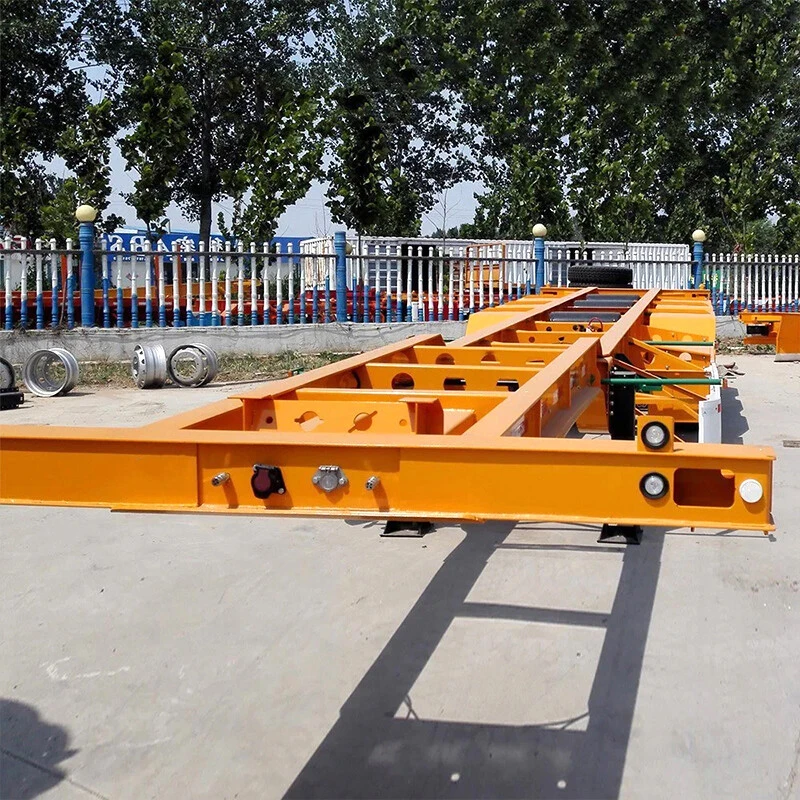

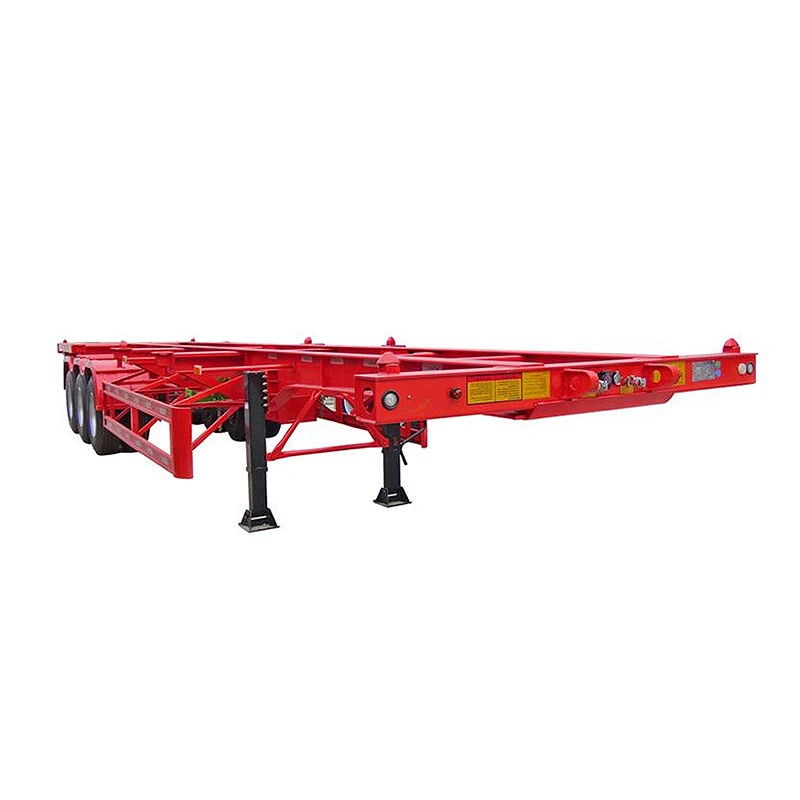

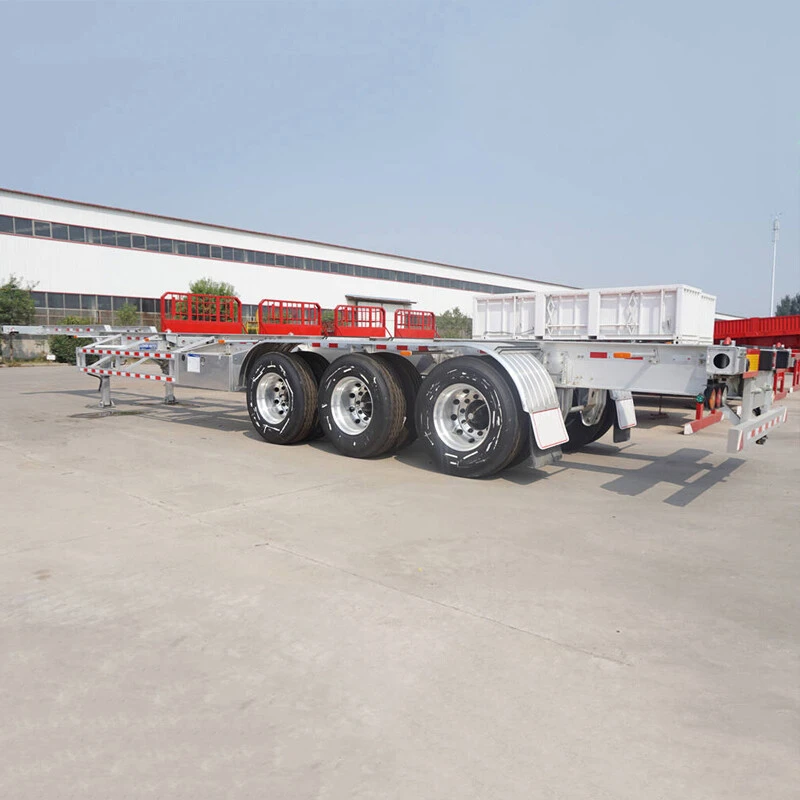

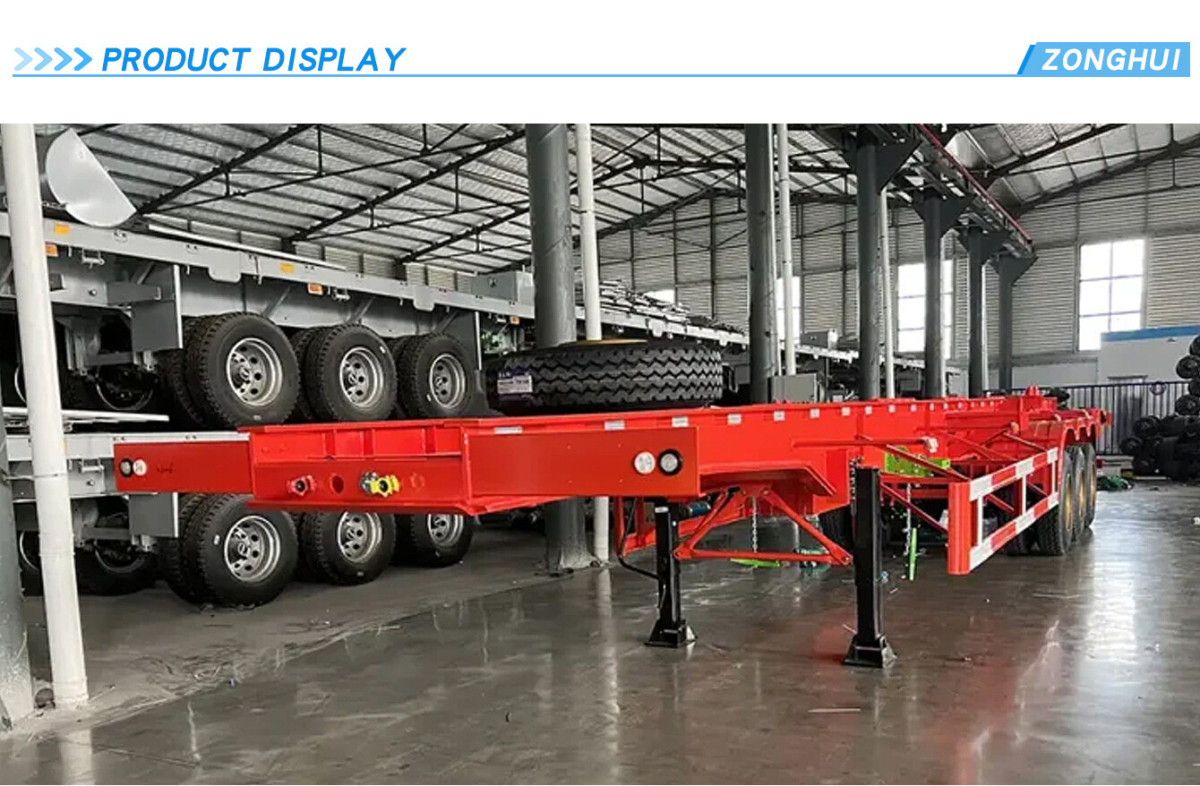

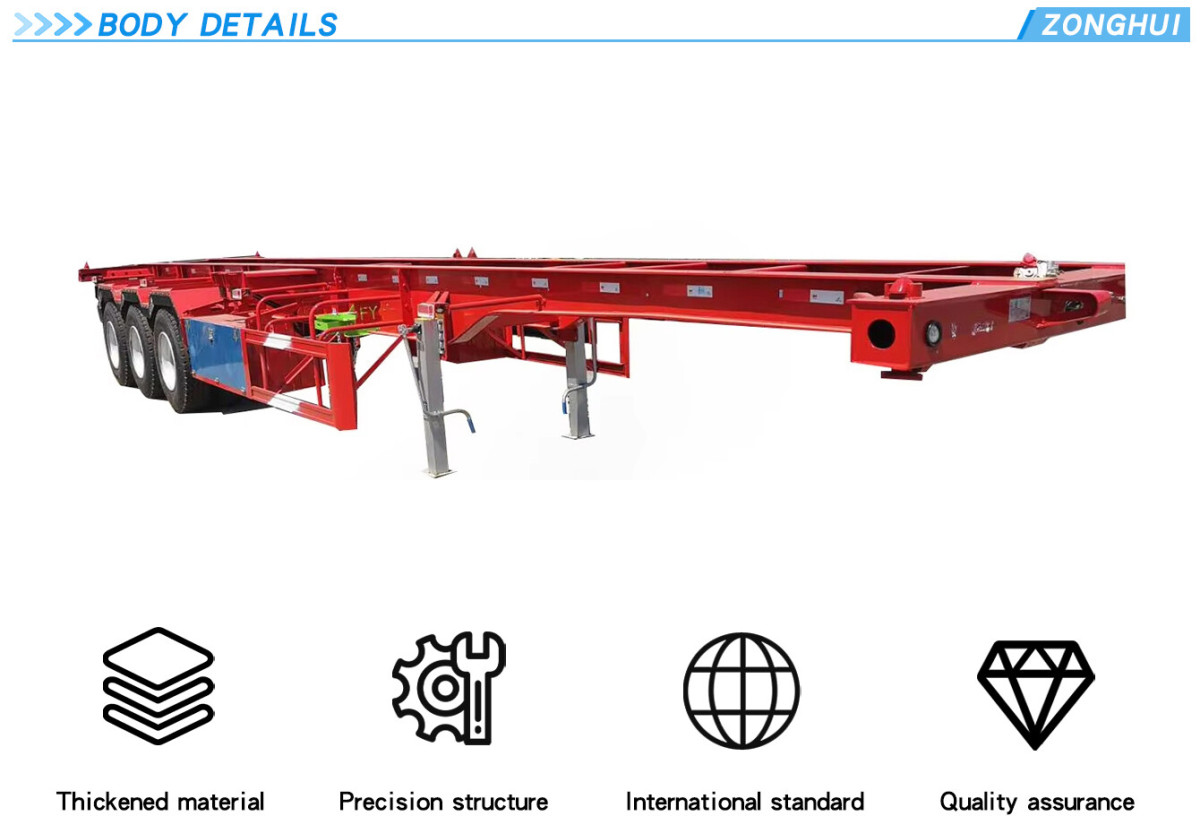

20FT 40FT Container Skeletal Trailer
Skeleton semi trailers are usually used to transport containers of 20 feet, 40 feet, and 45 feet. We can also produce skeleton semi trailers separately for customers according to their needs. The configuration of skeleton semi-trailer is very good and has met the certification requirements.

>>>>PRODUCT  DESCRIPTION

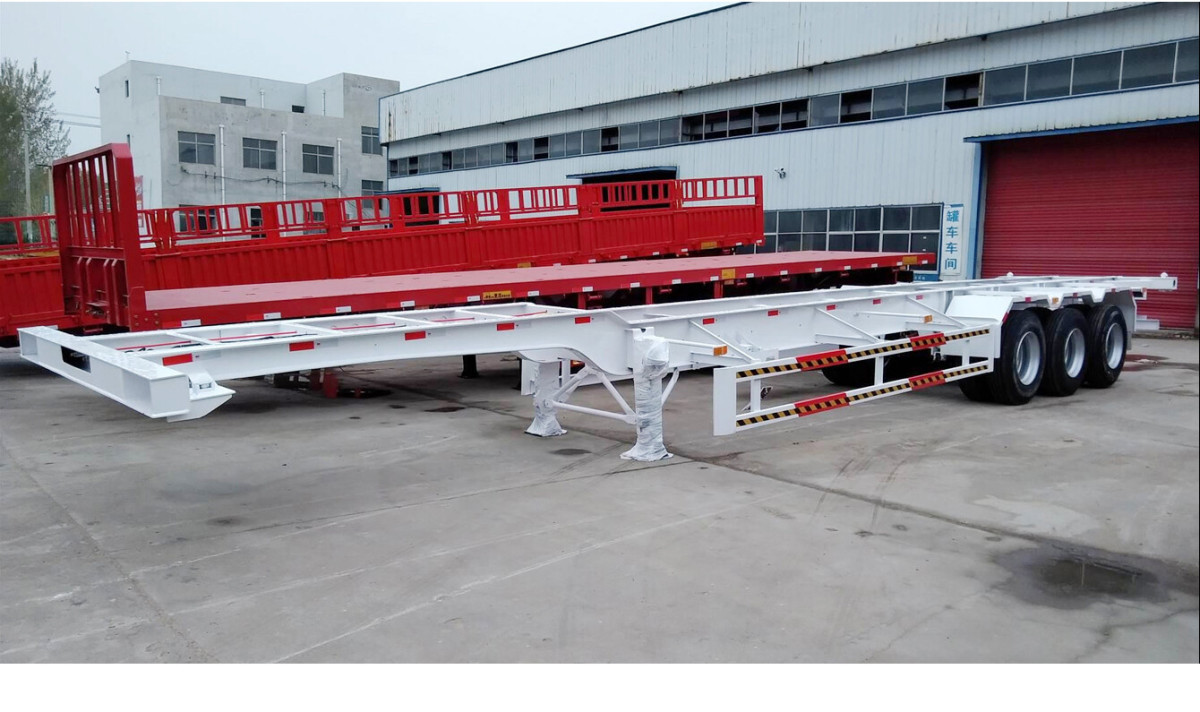

20ft 40ft container skeletal trailer can only be used to carry containers. It has the advantages of small dead weight, simple structure and convenient maintenance. According to the structural form, the 20ft 40ft container skeletal trailer is divided into two types: straight frame type and gooseneck type. straight frame semitrailers are suitable for carrying containers with flat bottom structure; The gooseneck semi-trailer is specially designed to carry containers with a grooved bottom structure to reduce loading height.


Specifications


  Dimension  12.5m×2.5m×1.6m
  Payload  20-50tons capacity
  Tare weight  About 6T

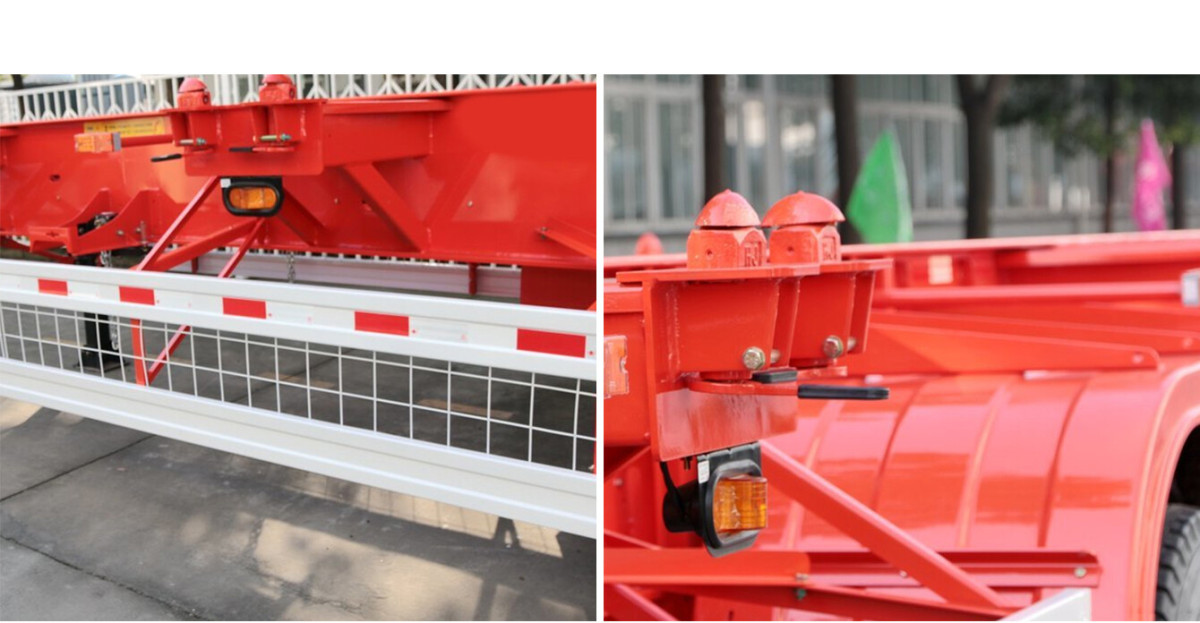

  Twist Lock  12 units for 20ft 40ft container
  Main beam  Q345B carbon steel material, “H” beam
  Frame Beam  Top Flange 14mm, Middle Flange 10mm, Bottom Flange 16mm
  Edge beam  14# Channel
  Through beam  10# Channel
  Along beam  6# Channelx6
  Axle  3 axles BPW FUWA
  Landing Gear  JOST brand 28T lifting capacity
  King Pin  2.00 or 3.5 inch

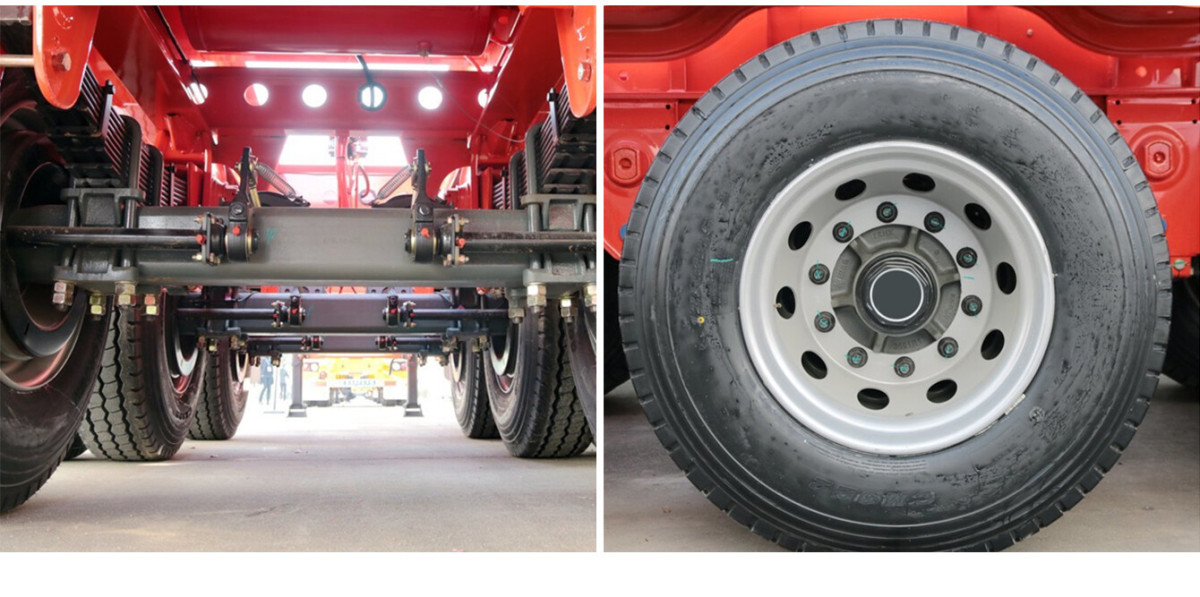

  Suspension  Mechanical or air bag suspension
  Leaf Spring  90mm(W)*16mm(T)*10 Layer
  Tires  12R22.5, 13R22.5, 315/80R22.5, 385/65R22.5
