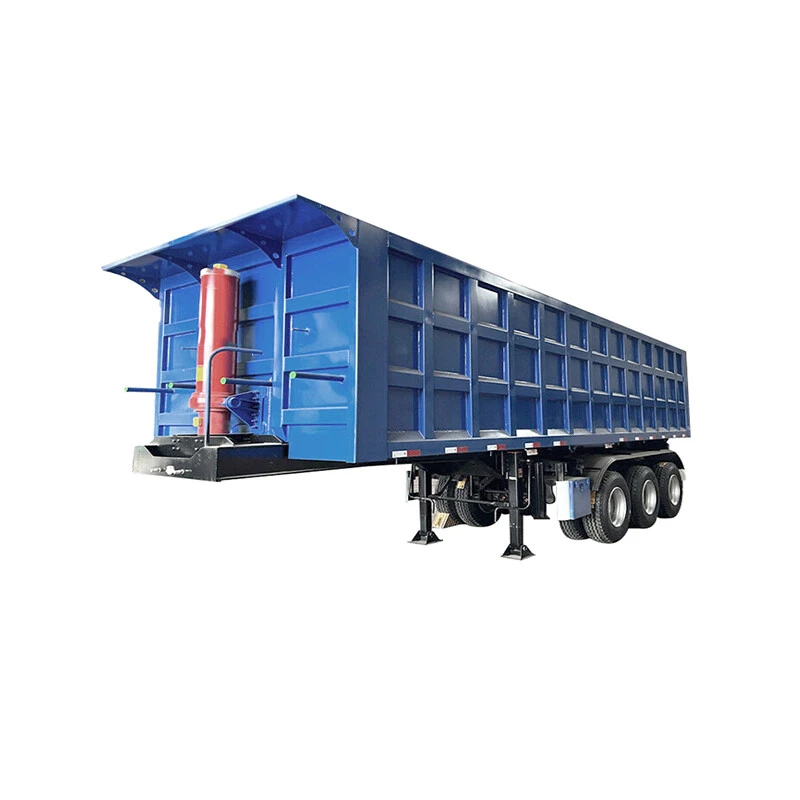

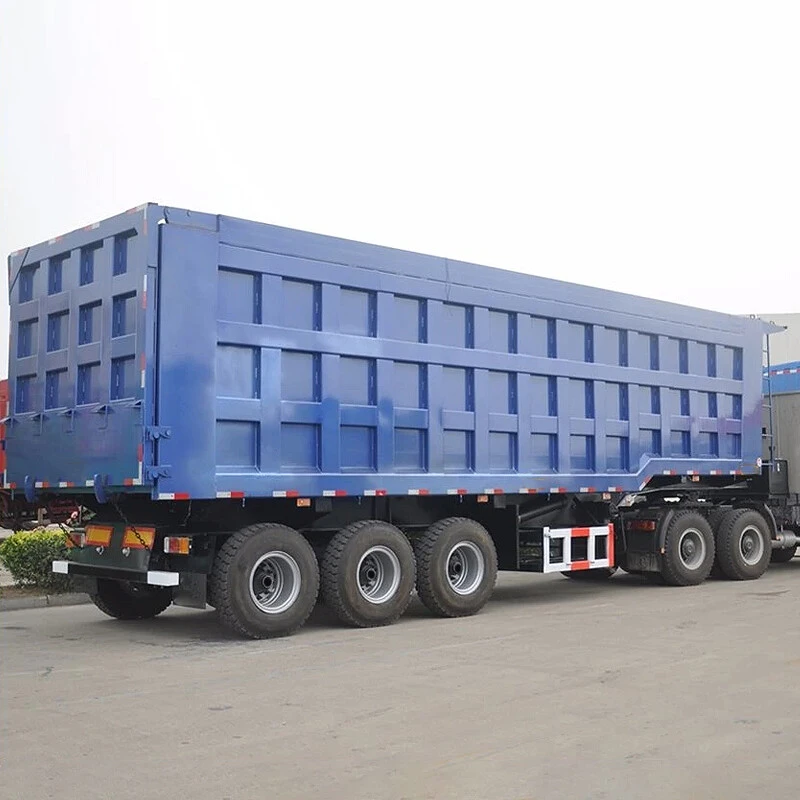

3 Axles 30 Cubic Meters Dump Tipper Trailer
3 axles dump tipper trailer features:
1. box body volume capacity according to your need to design
2.U shape and square shape box body for your choose
3. body thick, floor thick:8 mm, side: 6 mm, can carrying stone
4. reinforce spring suspension, increse trailer driving paylaod capacity

>>>>PRODUCT  DESCRIPTION

Specifications


  Shape  U shape/ square shape
  Dimension  9.2m*2.5m*3.2m (Outside) customized
  Box Dimension  8.5m*2.35m*1.5m
  Payload  40T- 50T
  Tare weight  About 10T

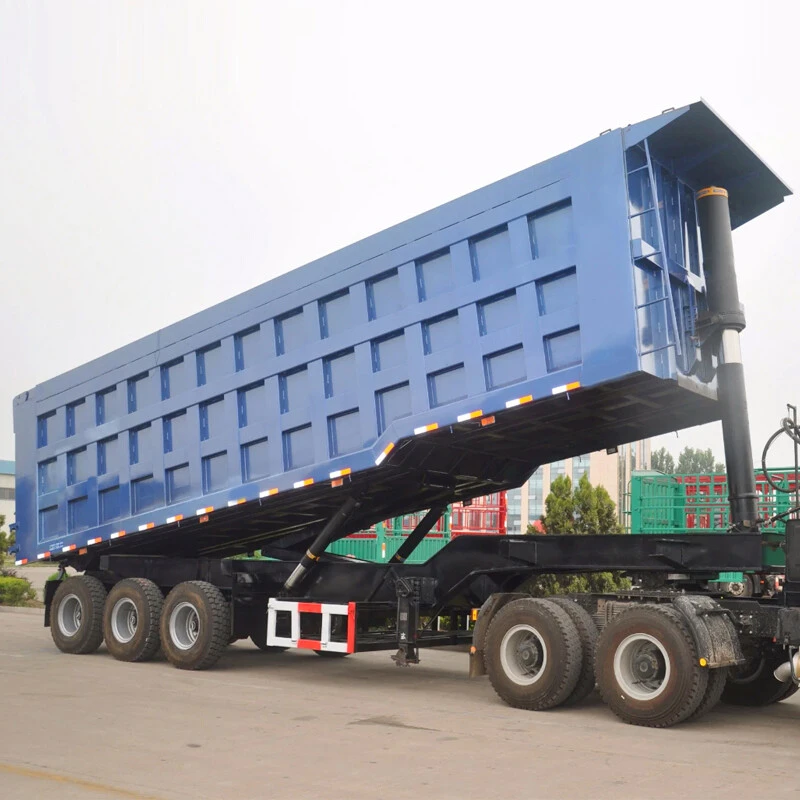

  Lifting system  196 hydraulic jacking
  Steel thickness  Bottom plate :8mm Side plate:6mm
  Axle  3 axles
  Landing Gear  heavy duty landing gear 28T
  King Pin  2.00 or 3.5 inch bolt-in king pin

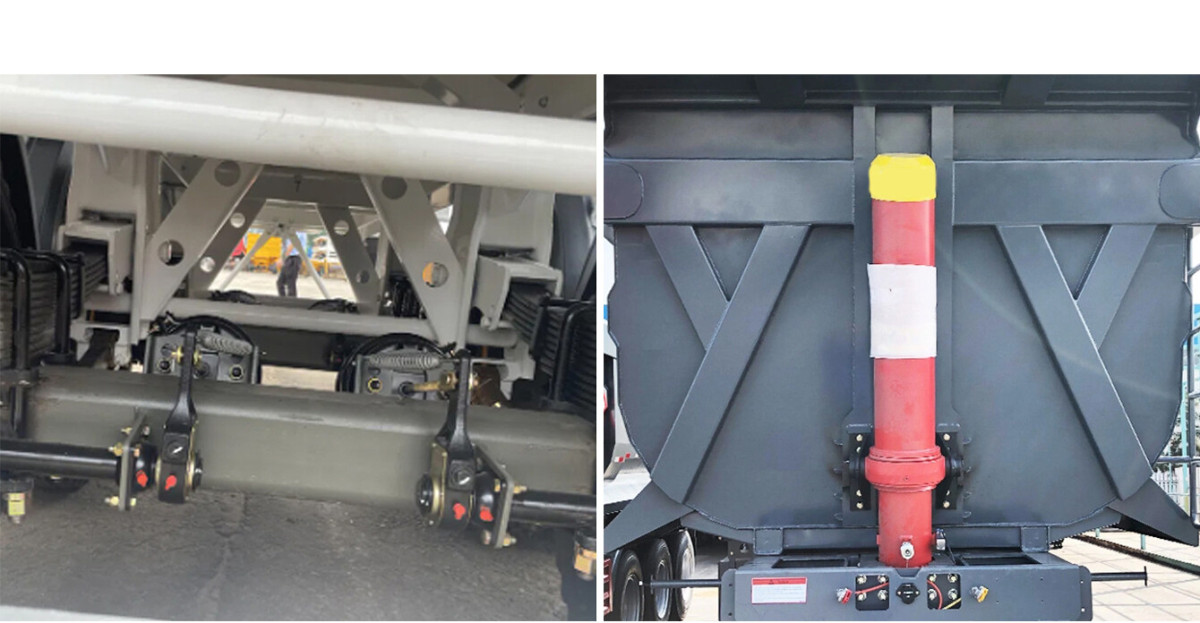

  Suspension  Mechanical suspension
  Leaf Spring(Strength)  90mm(W)*13mm(T)*10 Layer
  Tire  12R22.5*12pcs
  Accessories  One standard tool box
  Painting  Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
  Shipping Terms  By Flat rack or by bulk
