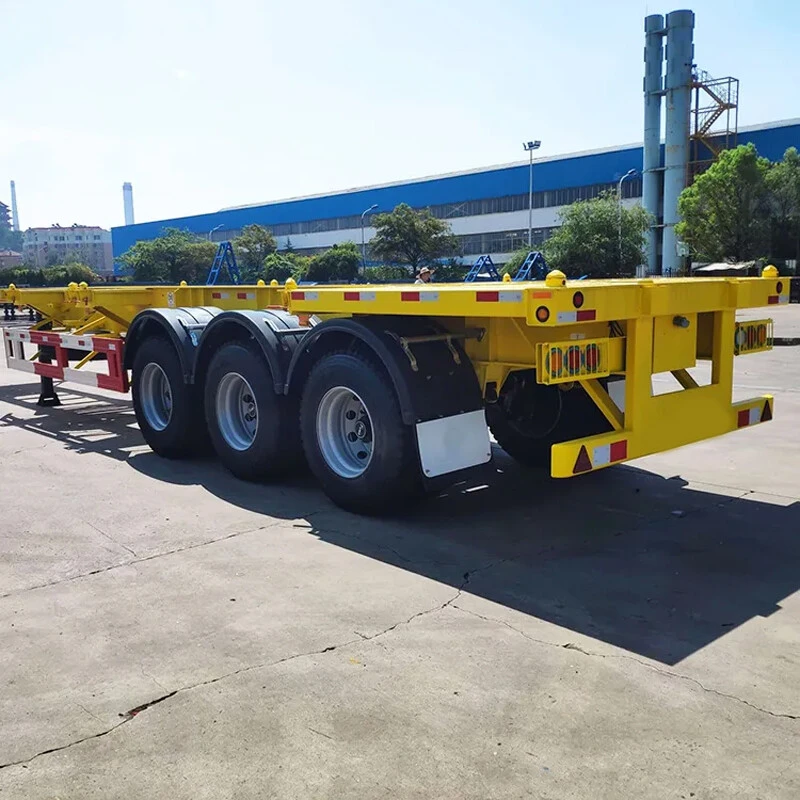

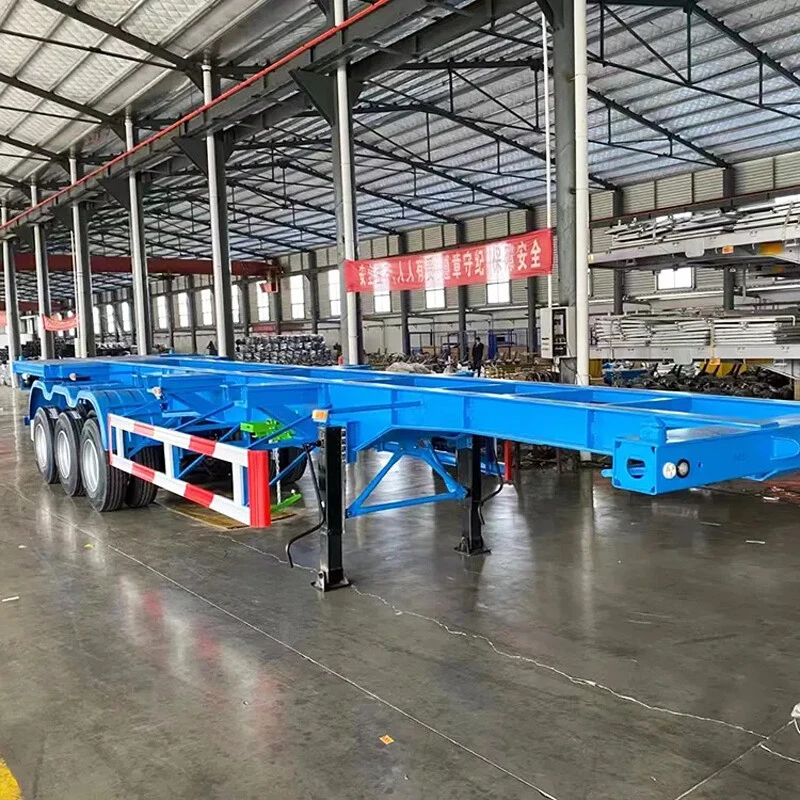

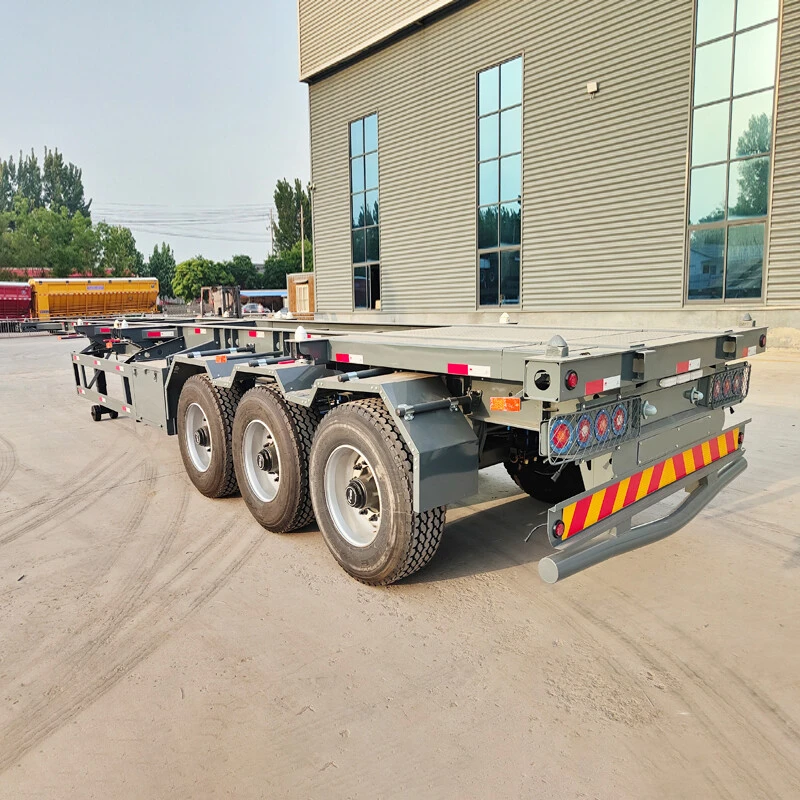

3 Axles 40 Feet Container Skeleton Semi Trailer
Skeleton semi trailers are usually used to transport containers of 20 feet, 40 feet, and 45 feet. We can also produce skeleton semi trailers separately for customers according to their needs. The configuration of skeleton semi-trailer is very good and has met the certification requirements.

>>>>PRODUCT  DESCRIPTION

FUNCTIONS:

1. This series container skeleton semi trailers are mainly used in containers transportation.

2. The rated capacity varies widely from 30Tons to 60Tons, and the dimension we can manufacture it according to your needs.

3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.

4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.


Specifications


  Dimension  12.5m×2.5m×1.55m (The height adjustable according to tractor)
  Payload  30-50Ton
  Tare weight  About 6.5T
  Twist lock  12 units
  Main beam  Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
  Frame Beam  Top Flange 14mm,width 140mm; Middle
  Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 500mm
  Axles  3pcs, FUWA / BPW brand
  Landing Gear  JOST brand
  King Pin  2″ or 3.5’’ Bolt-in type
  Suspension  Mechanical suspension
  Leaf spring  90mm*16mm*10layer
  Tire  12R22.5; 315/80R22.5*12pcs
  Rim  9.0-22.5*12pcs
  Accessories  One standard tool box
  Spare tire rack  Two
  Electrical system  24 volt electrical system
  Painting  Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
  Shipping term  By Bulk cargo / Ro-ro / Container ship
