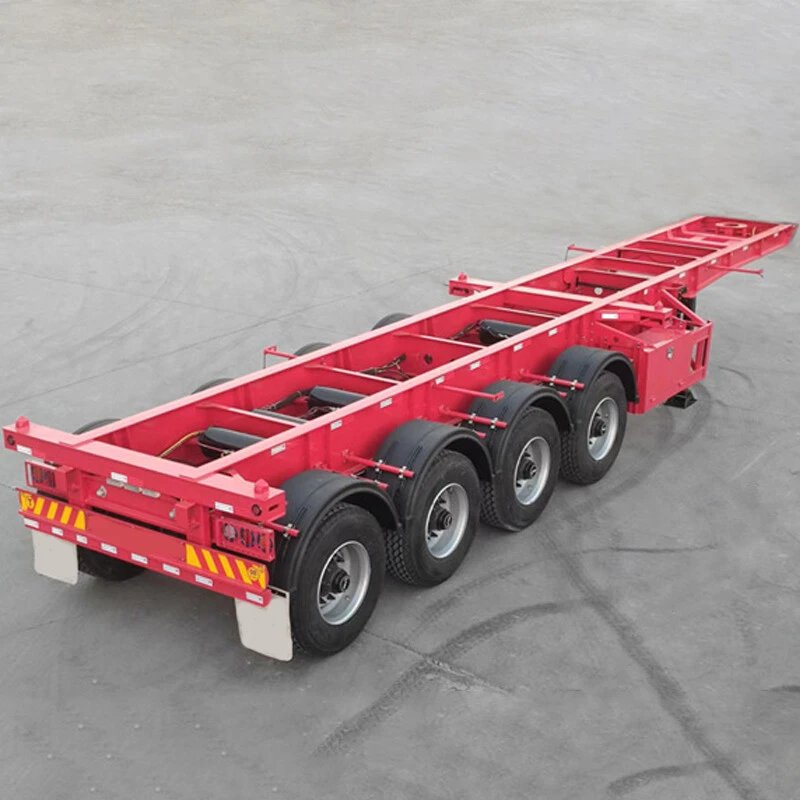

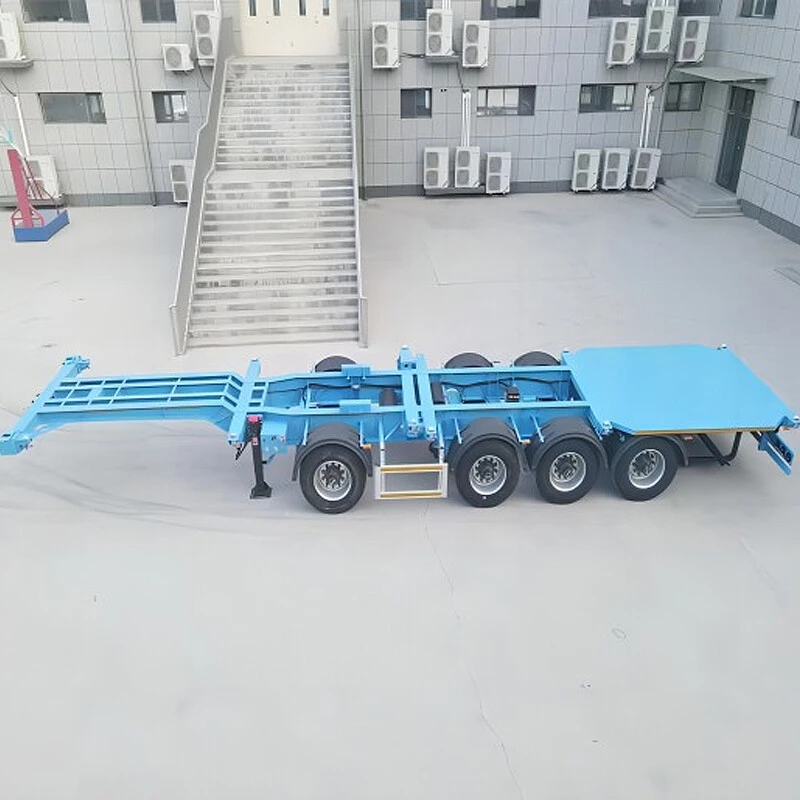

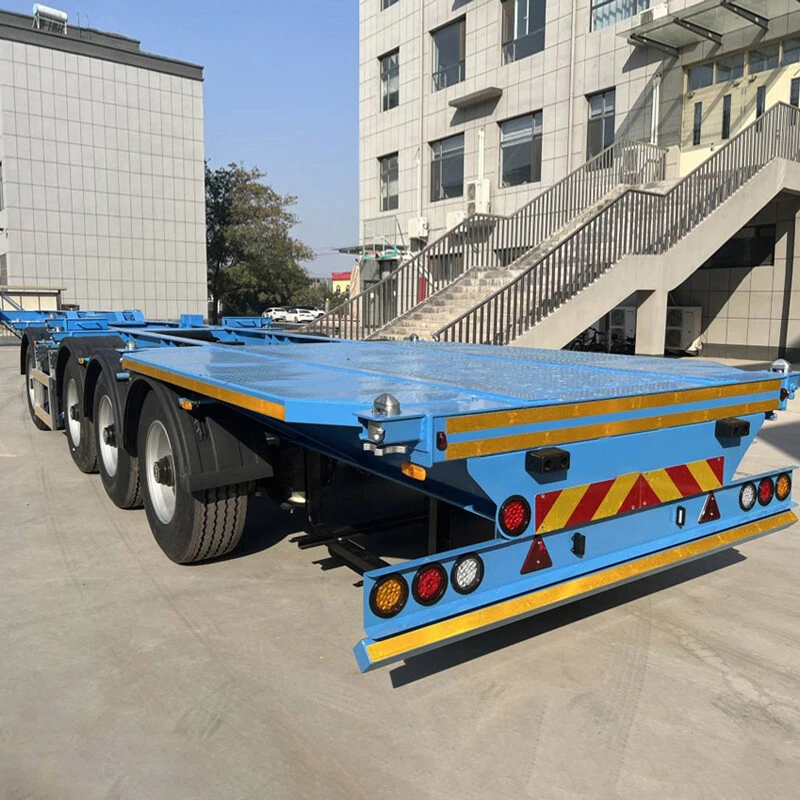

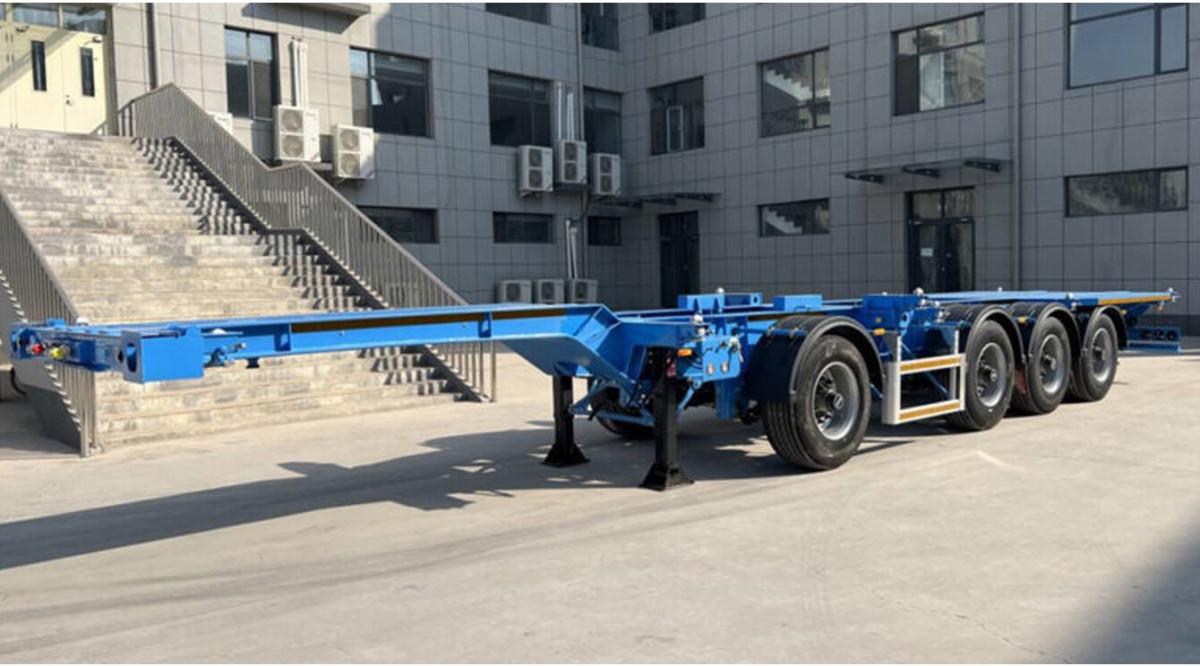

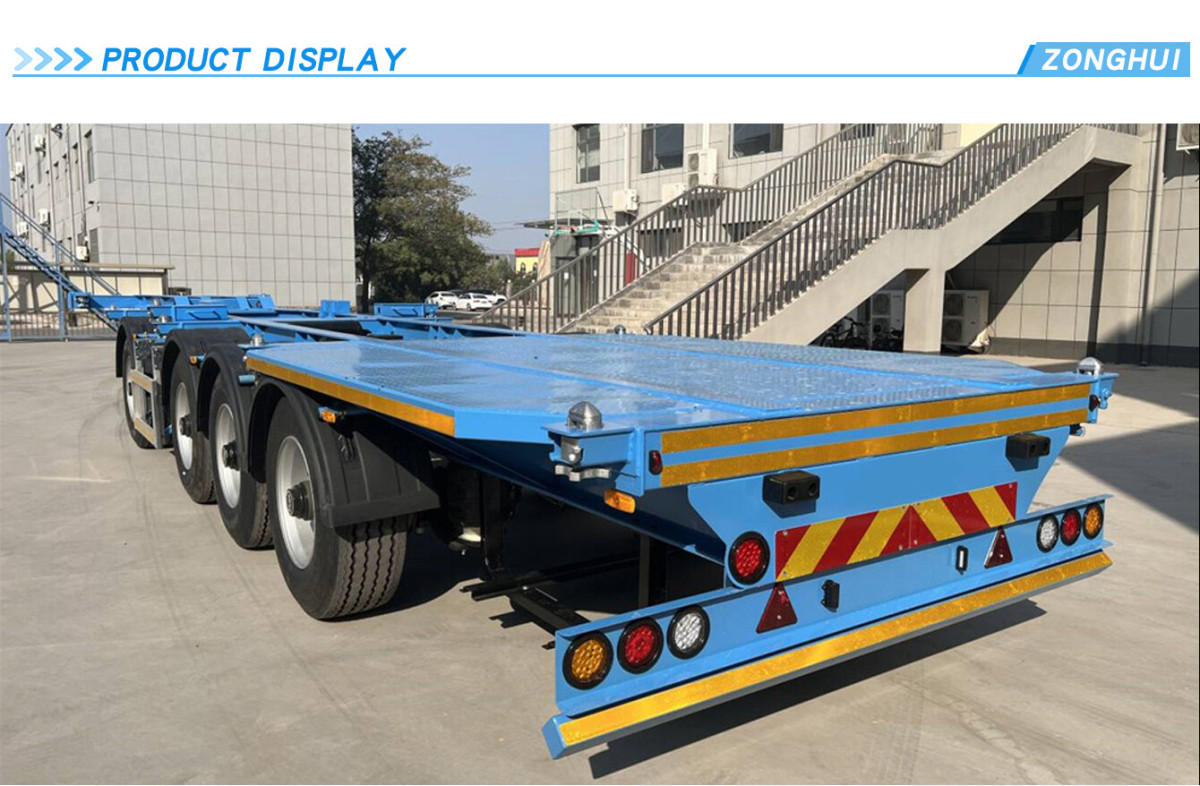

4 Axle Skeleton Semi Trailer
Skeleton semi trailers are usually used to transport containers of 20 feet, 40 feet, and 45 feet. We can also produce skeleton semi trailers separately for customers according to their needs. The configuration of skeleton semi-trailer is very good and has met the certification requirements.

>>>>PRODUCT  DESCRIPTION

The 4 axle skeleton semi trailer is a specialized transportation vehicle designed to handle heavy loads with enhanced stability and capacity.

This type of semi-trailer features a sturdy skeletal frame structure. The main frame is typically made of high-strength steel, which provides

excellent durability and strength to support large and heavy cargo. The four axles distribute the weight of the cargo more evenly, allowing

for greater load capacity compared to trailers with fewer axles.


Specifications


  Dimension  12.5m×2.5m×1.6m
  The rated load  60-80T
  Bottom Platform  4 mm Checkered Thickness
  Main beam  Welding design “I” 260mm side beam , Main beam height 500mm
  Frame beam  Top Flange 20mm; Bottom Flange 25mm, Middle Flange 12mm;
  Ramp  Mechanical ladder
  Axle  4 axles
  Landing Gear  28T lifting capacity with two speed Jost brand
  King Pin  2.00 or 3.5 inch bolt-in king pin
  Suspension  Mechanical suspension
  Leaf spring  90mm(W)*16mm(T)*10 Layer
  Braking System  Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks,Emergency relay valve
  Tyre  12r22.5 * 12 pcs
  Accessories  One standard tool box
  Spare tire rack  One unit
