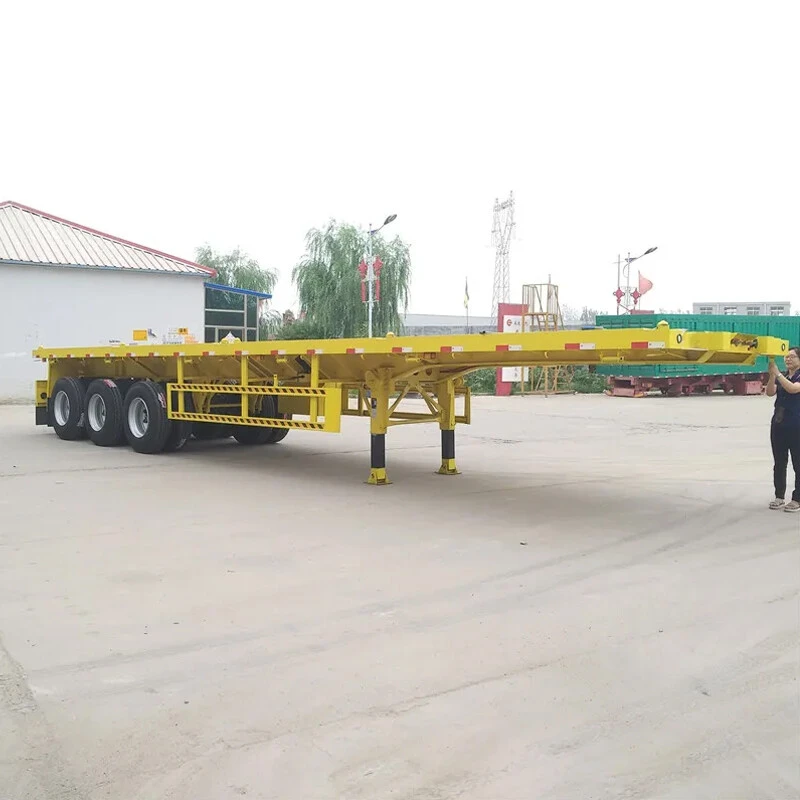

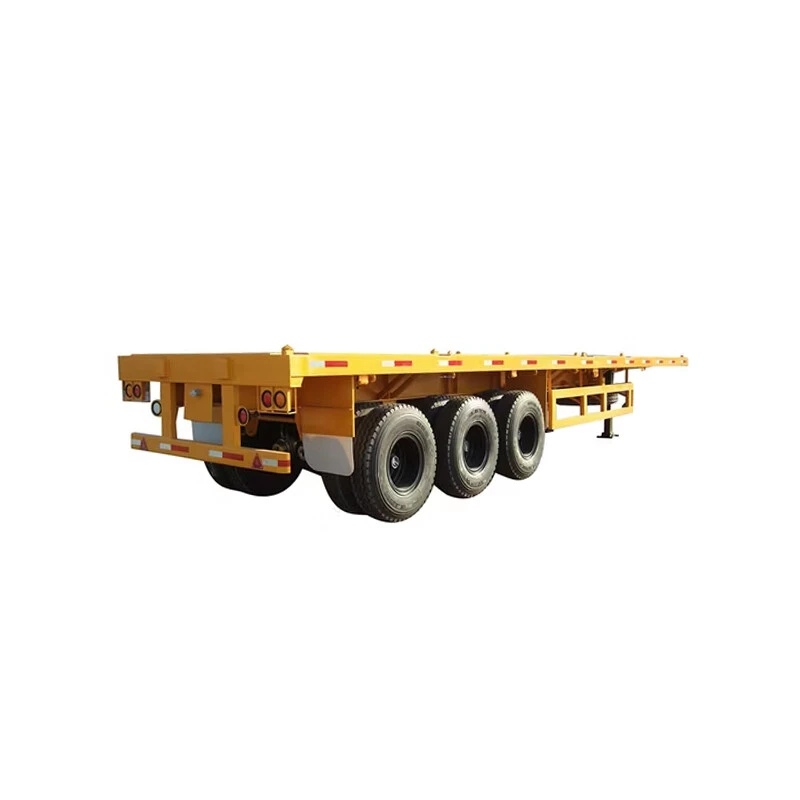

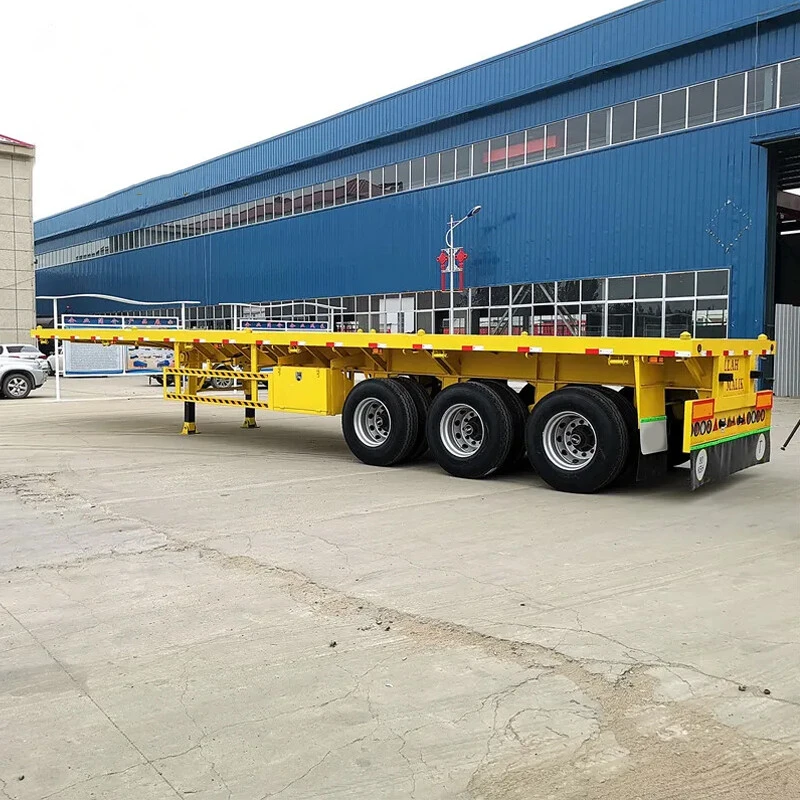

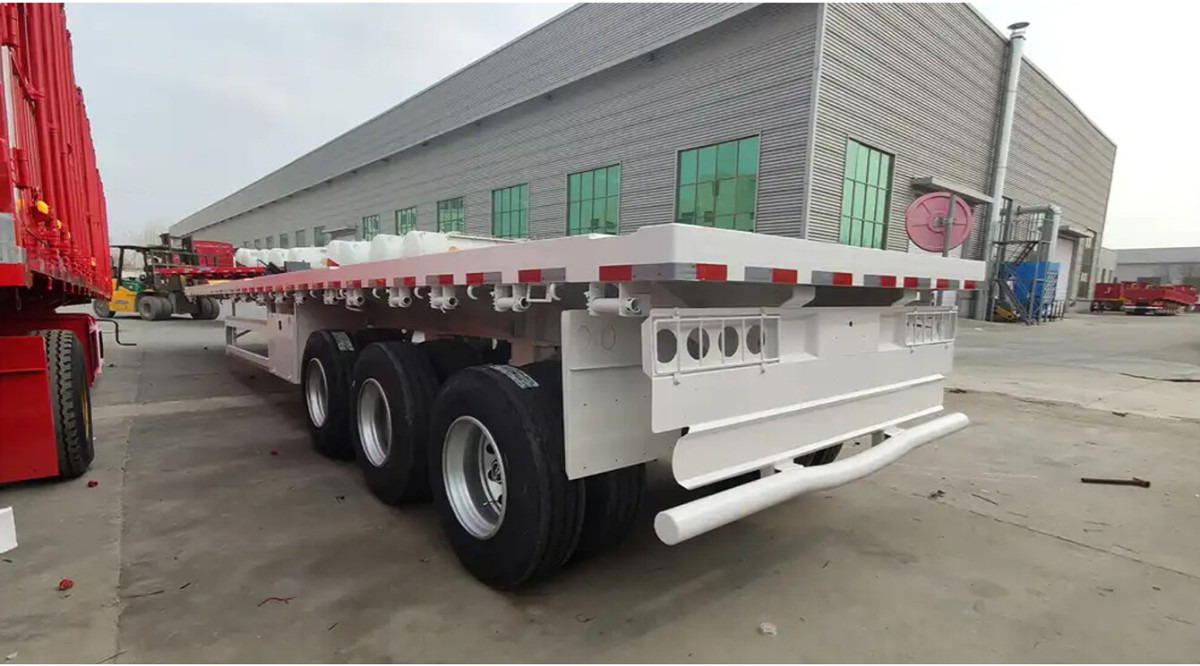

Multipurpose Flatbed Semi Trailer
Short Description:
Flatbed Trailer is used for container/Cargo transportation.
Customized according to customer needs
A flatbed trailer is a semi-trailer with a container structure. Mainly used in logistics systems supporting ships, ports, routes, highways, transfer stations, bridges, tunnels, and multimodal transport.

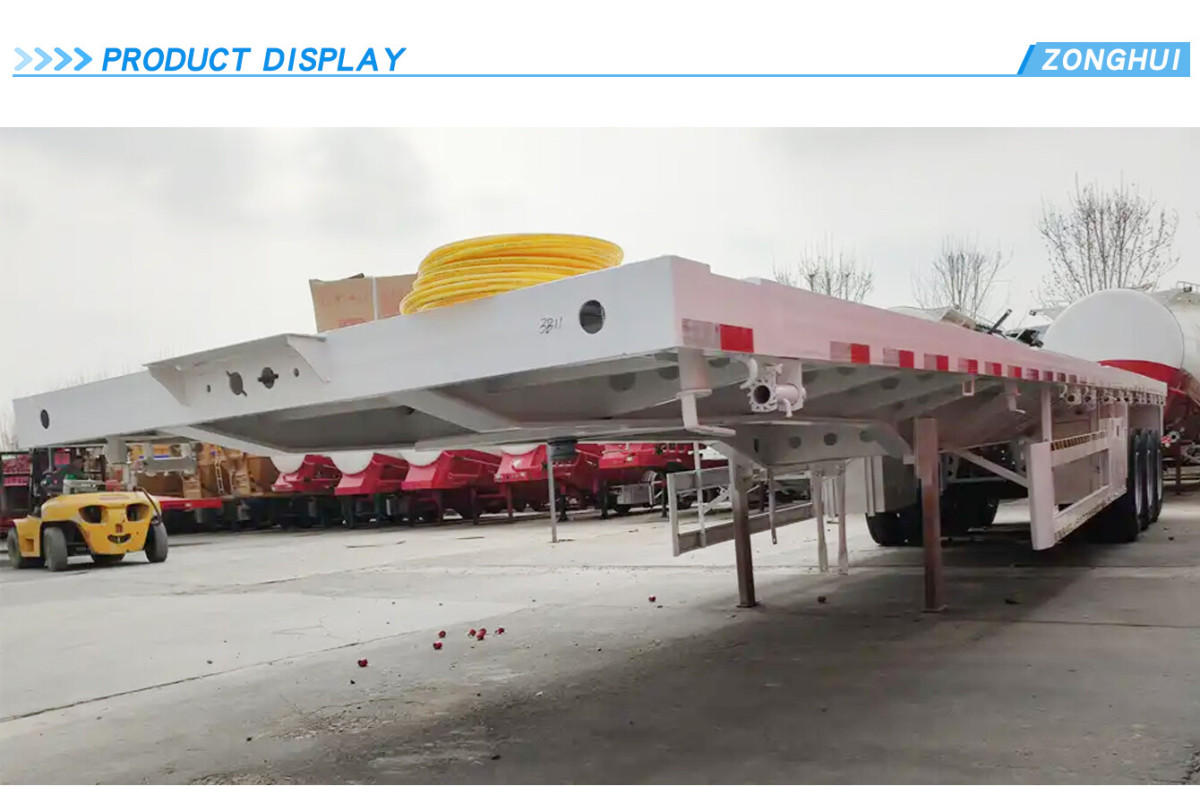

>>>>PRODUCT  DESCRIPTION

Specifications


  Suit to truck head  6x4
  OTO size  12355x2480x1530
  Tare weight  7880kgs payload:50tones
  Axle distance  7000+1310+1310 wheel track: 1840/1840/1840

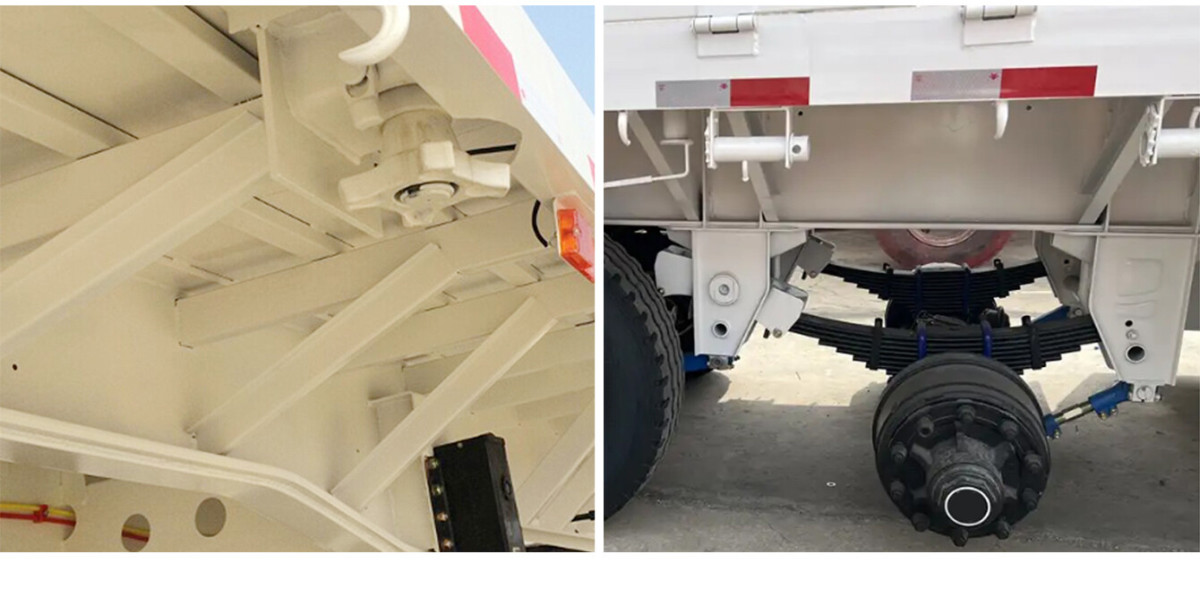

  Leaves spring  7/7/7 dual air brake
  Axle  3pcs 13T YUEK brand(can choose BPW or SAF brand). tool box: 1pc
  Tire  11R20/12R20/12R22.5
  Rim  8.5-20/9-22.5
  Spare tire bracket  2pcs
  Kingpin  2inch or 3.5inch JOST brand
  Landing gear  JOST brand, linkage move,30T
  I-Beam  500mm high, top and bottom flange: 16mm, web plate: 8mm
  All the above specification can be revised according to customers requirement.
