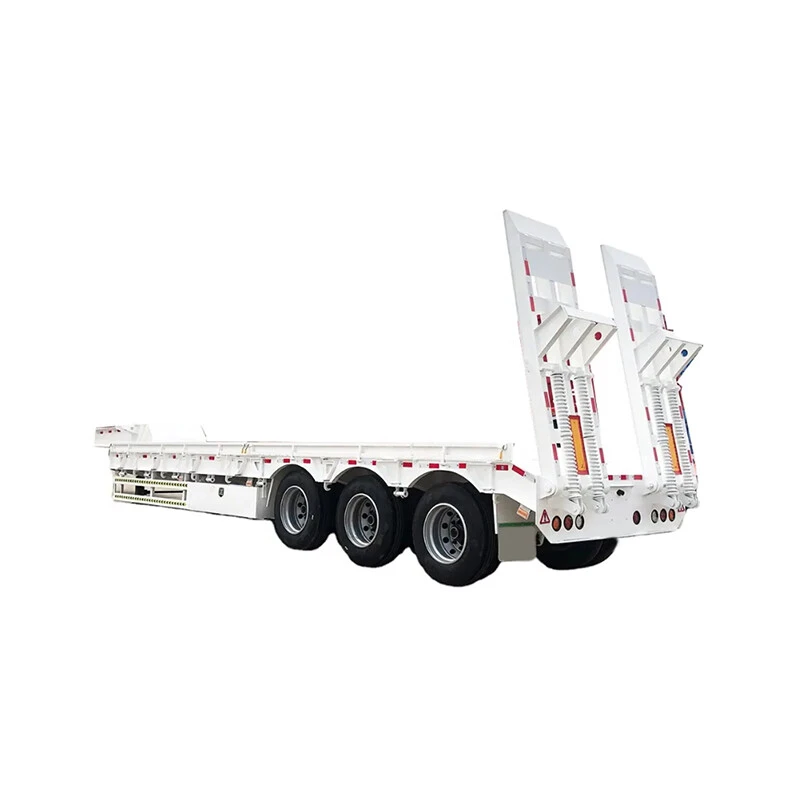

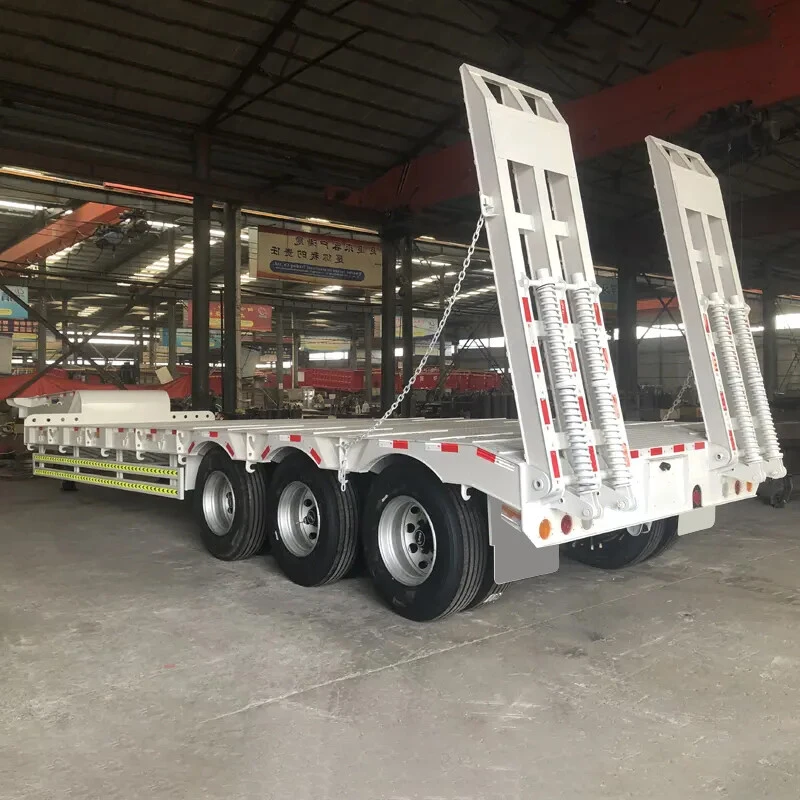

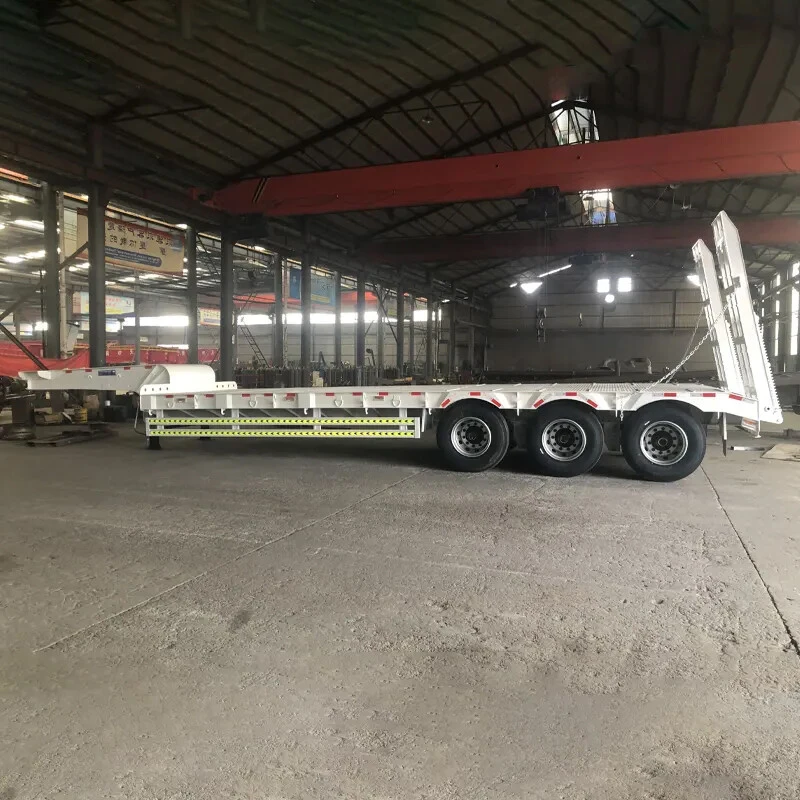

3 Axles Detachable Gooseneck Low Bed Semi Trailer
Detachable Gooseneck Trailers designed to haul all types of heavy equipment. Ease and safety of loading are the primary features. Loading over the rear of a trailer increases in danger as the equipment gets heavier, taller and wider. The higher weights and higher center of gravity on today's supersized construction, agricultural, and forestry equipment demand that both the loading height and transport height be significantly lower than our lowbed trailers.

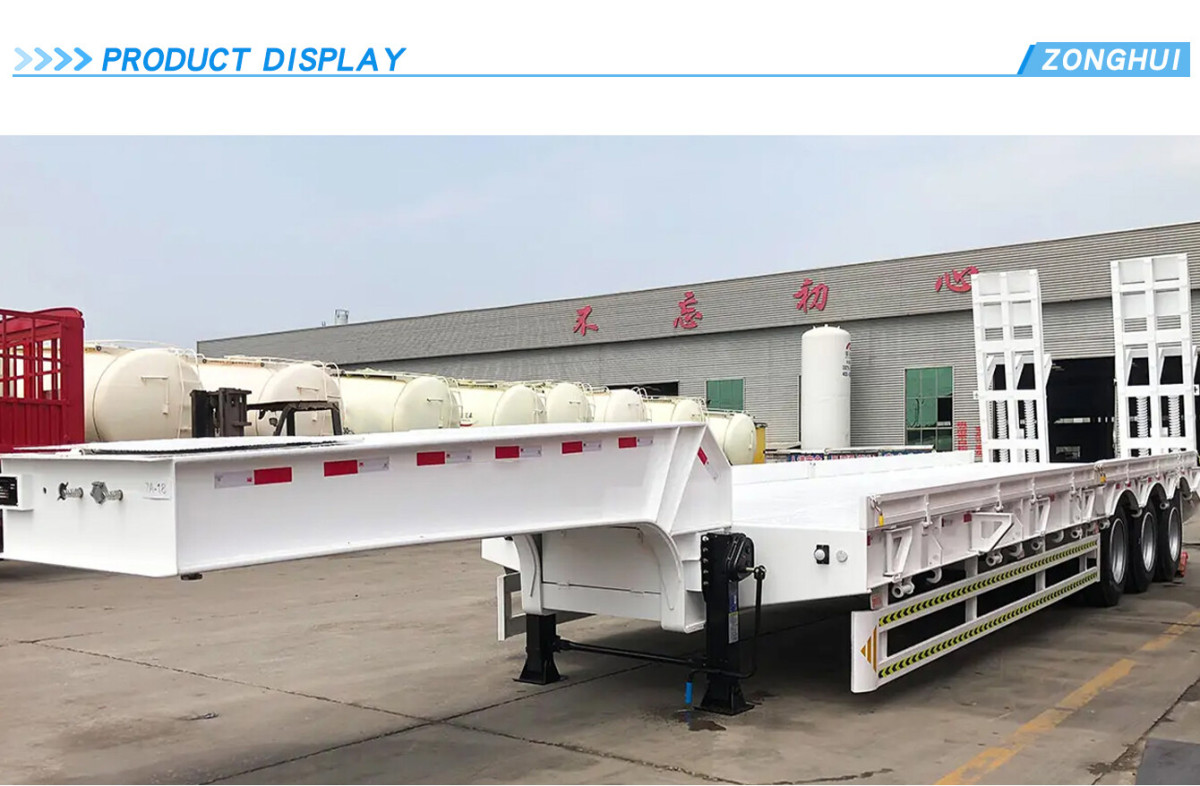

>>>>PRODUCT  DESCRIPTION

Specifications


  Dimension  16250x3000 x800mm (outside)
  Working platform length   7500mm
  The height before rise  300mm
  The height after rise  800mm
  Payload  80T
  Tare weight  About 17T
  Wheelbase  2350
  Hydraulic power station  12KW  diesel engine
  Gooseneck  Hydraulic detachable gooseneck
  Axle  3 axles  16T AN brand
  King Pin  3.5 inch bolt-in king pin
  Suspension  Steel suspension
  Rim  12pcs
  Tire  11.00R20*12 pcs
  Brake Chamber  WABCO RE 6 relay valve
  Electic system  24V, LED Lights
  Painting  Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

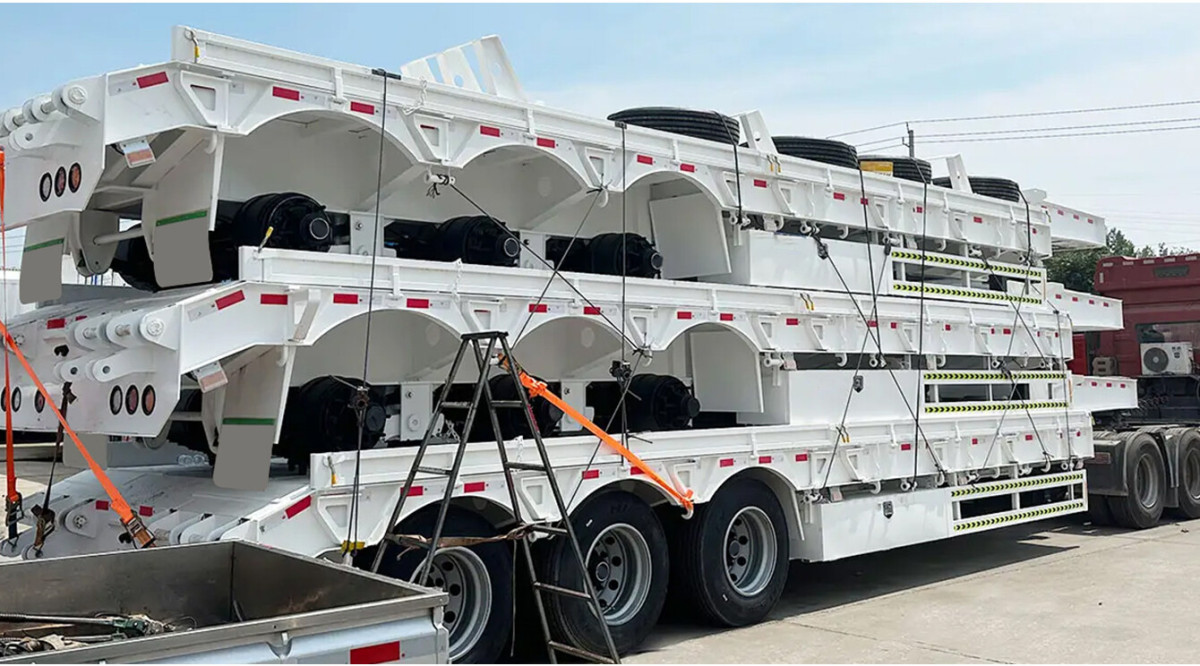

  Shipping Terms  By Bulk Cargo / RORO
