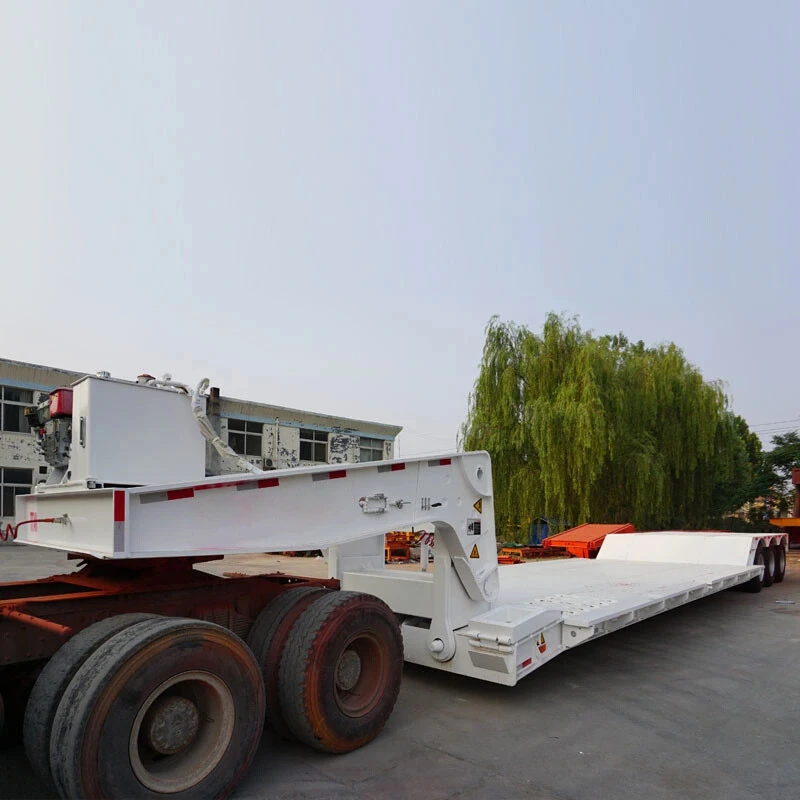

Heavy Equipment Carrier 3 Line 6 Axle Rgn Trailer
Rgn trailer refers to a heavy-duty low-bed semi-trailer whose gooseneck and carrying platform can be disassembled mechanically or automatically. The main purpose of the removable gooseneck lowbed trailer is to transport heavy machinery and equipment. Since the gooseneck is detachable, it provides the convenience of loading goods from the front.

>>>>PRODUCT  DESCRIPTION

Removable gooseneck lowbed trailer is used for transporting heavy equipment and machinery. When using a normal lowboy trailer, heavy cargo is loaded from the mechanical ladder at the rear. However, when using the rgn trailer, the cargo is loaded from the front.


Specifications


  Axle  13T FD brand 16ton brake pads
  Landing Gear  28T lifting capacity with two speed
  King Pin  2.00 or 3.5 inch bolt-in king pin
  Suspension  Mechanical suspension reforced type
  Leaf spring  90mm(W)*16mm(T)*10 Layer , reforced type
  Braking System  Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks,Emergency relay valve
  Tyre  11.00R20 * 12 pcs
  Accessories  One standard tool box
  Spare tire rack  One unit
  Electrical system  24 volt electrical system.7 pin electrical connector.
