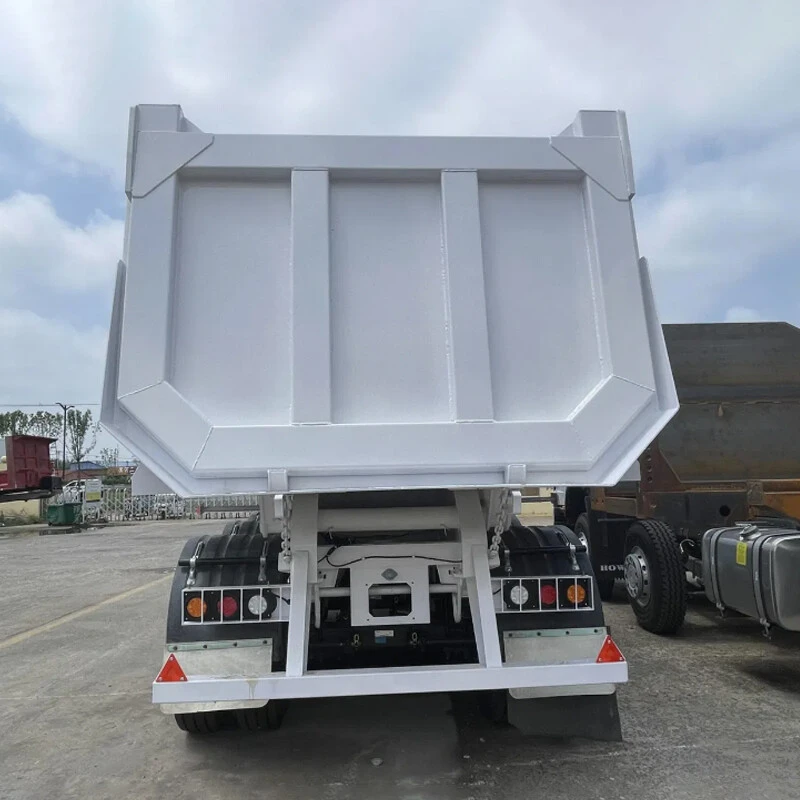

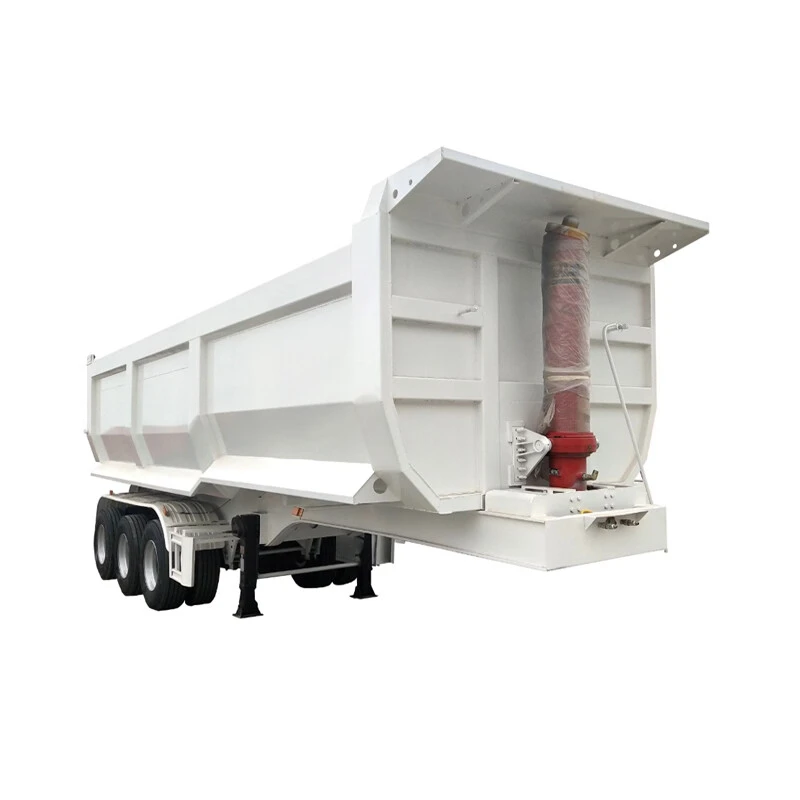

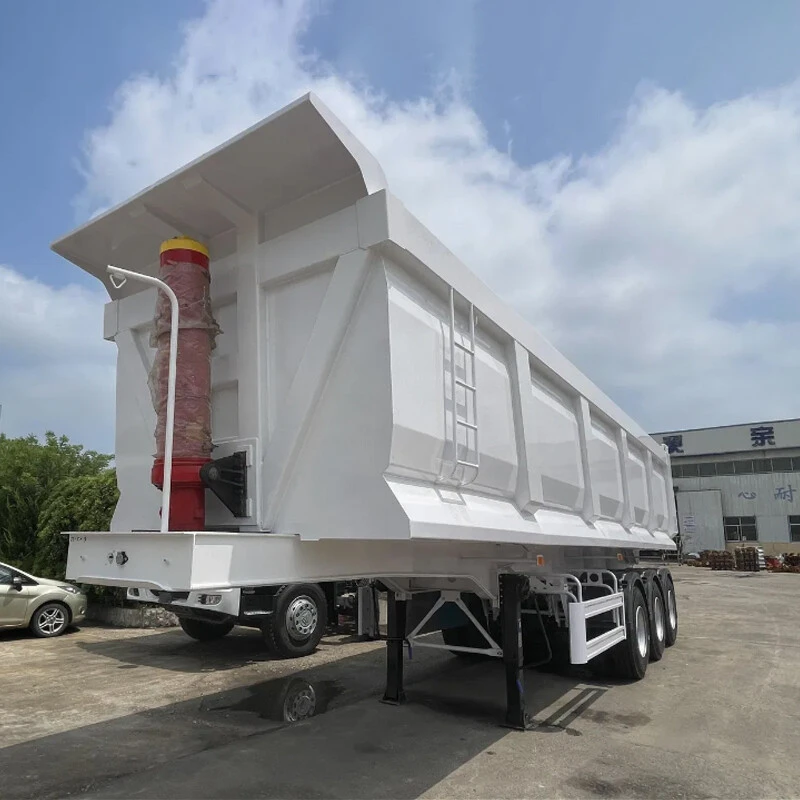

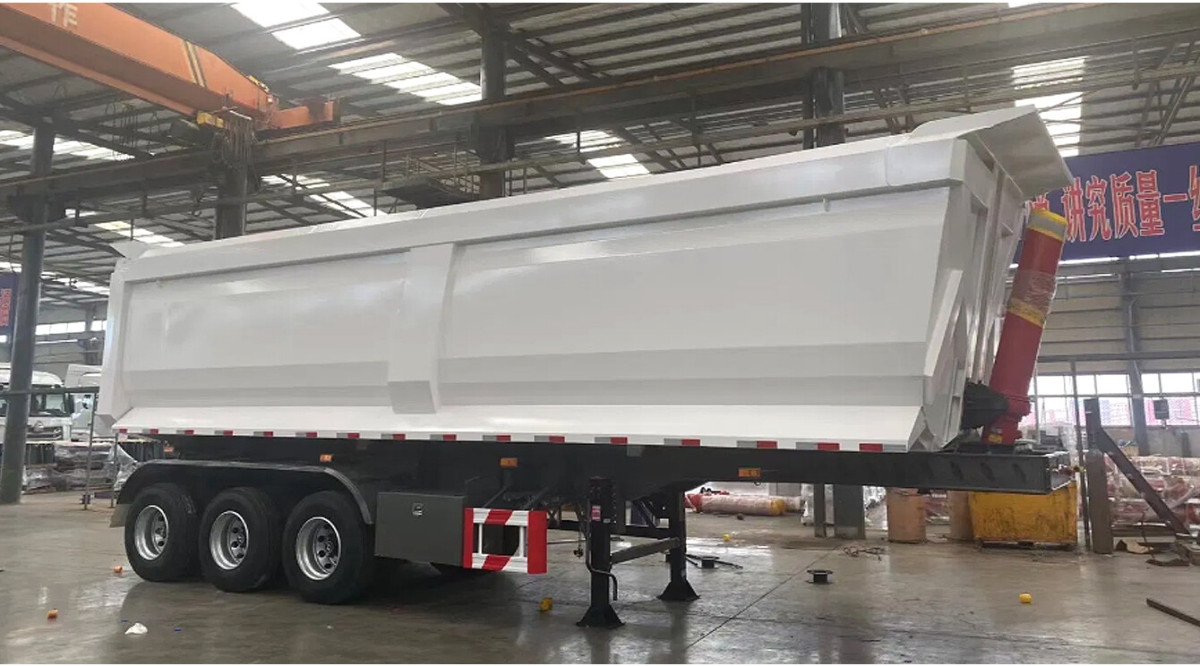

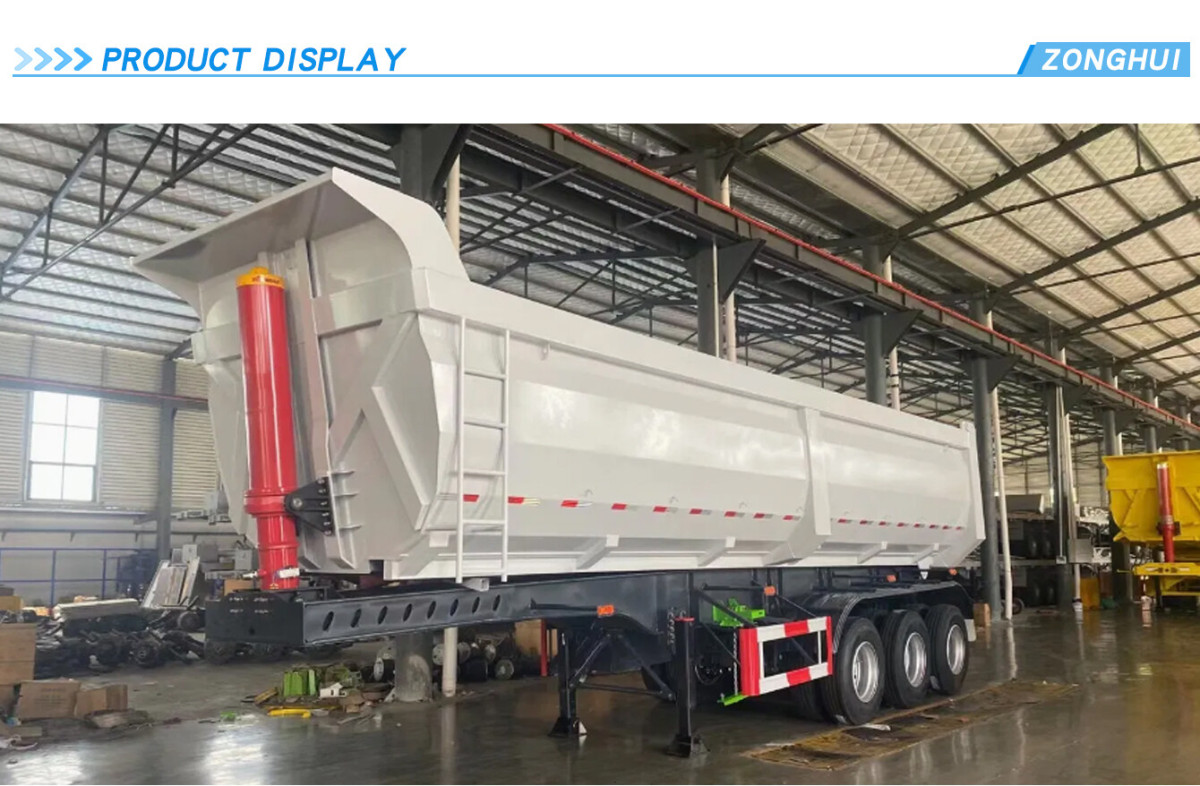

A Hydraulic Tipper Trailer is a specialized semi-trailer used for transporting bulk materials like sand, gravel, soil, and aggregates. The key feature of this trailer is its hydraulic tipping system, which allows the cargo bed to be raised to an angle, enabling easy and efficient unloading. This system is powered by hydraulic cylinders, making the unloading process fast and reducing manual labor.
Specifications
Trailer Type | 3 Axles Hydraulic Tipper Trailer |
Overall Dimensions | 9300mm (L) x 2500mm (W) x 3700mm (H) |
Payload Capacity | 100 Tons |
Cargo Volume | Customizable (Common volumes: 24cbm, 30cbm, 35cbm, 40cbm, 60cbm) |
Suspension | Heavy Duty Mechanical Suspension |

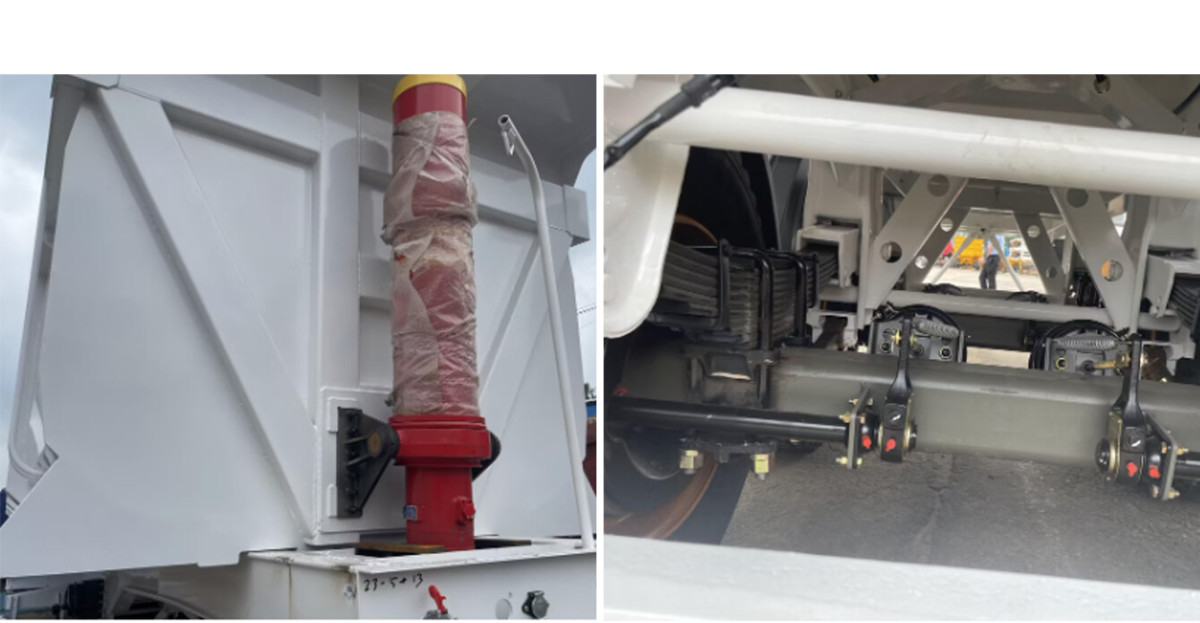

Tipping System | 196 Hydraulic Cylinder |
Tire Count | 12 Units (12R22.5 Tubeless Tires) |
King Pin | 90# |
Landing Gear | JOST |
Brake System | WABCO Air Brake System |

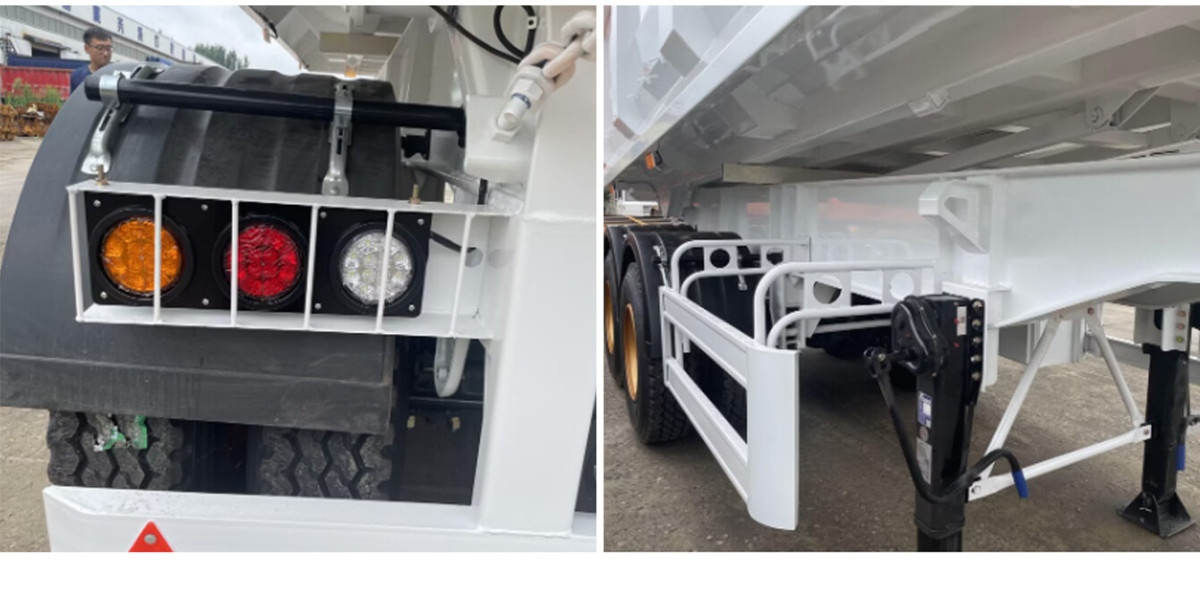

Electrical System | 24V, LED Lights |
Hydraulic Cylinder Capacity | High lifting capacity, ensures smooth and stable unloading |
Main Beam | Double-plate main beam for superior carrying capacity |
Leaf Spring | Widened and thickened, excellent shock absorption |
Flip Bracket | 4 units flip brackets for stable unloading |
Side Door Structure | Lattice structure for reinforced side doors |
Strengthened Ribs | Unique structure design for maximum payload and stability |
Discharge Type | Rear Dump, Side Dump, or U-shaped dump (customizable) |
Customizable Features | U-shape, end dump, side tipper, container tippers, flatbeds, skeleton trailers, and more |
