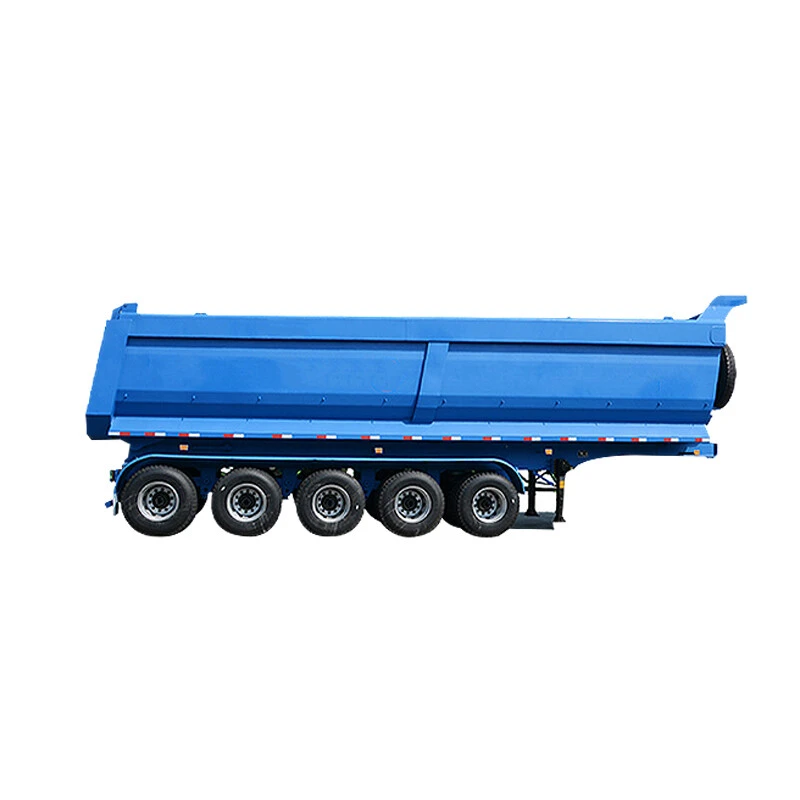

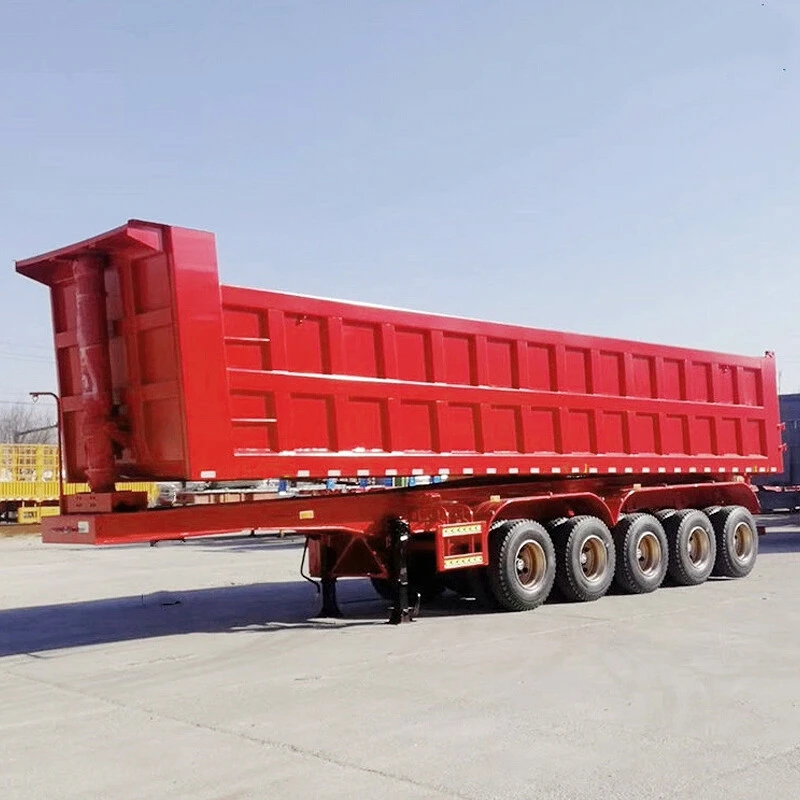

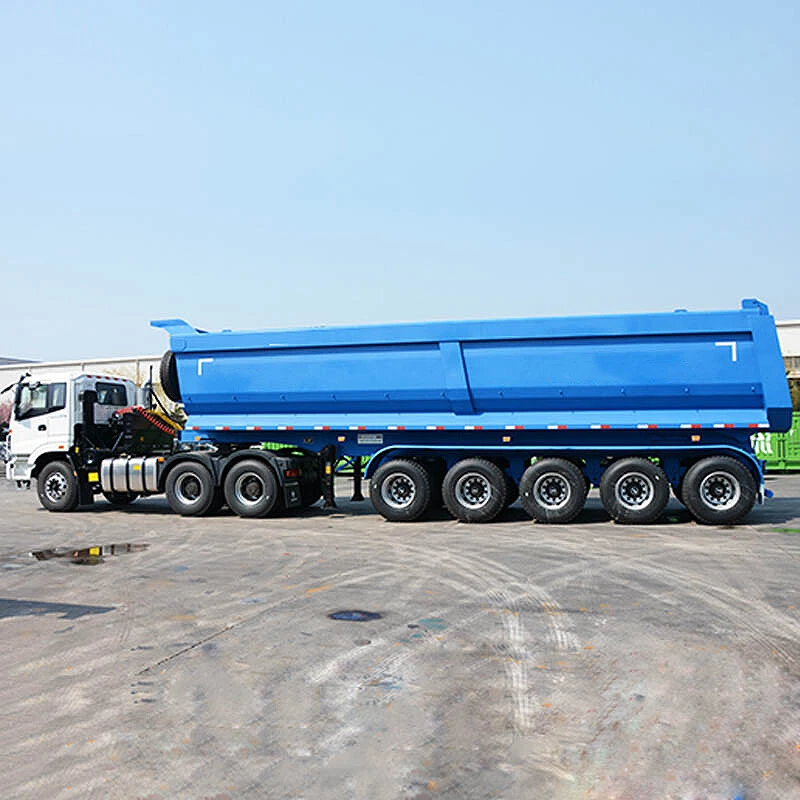

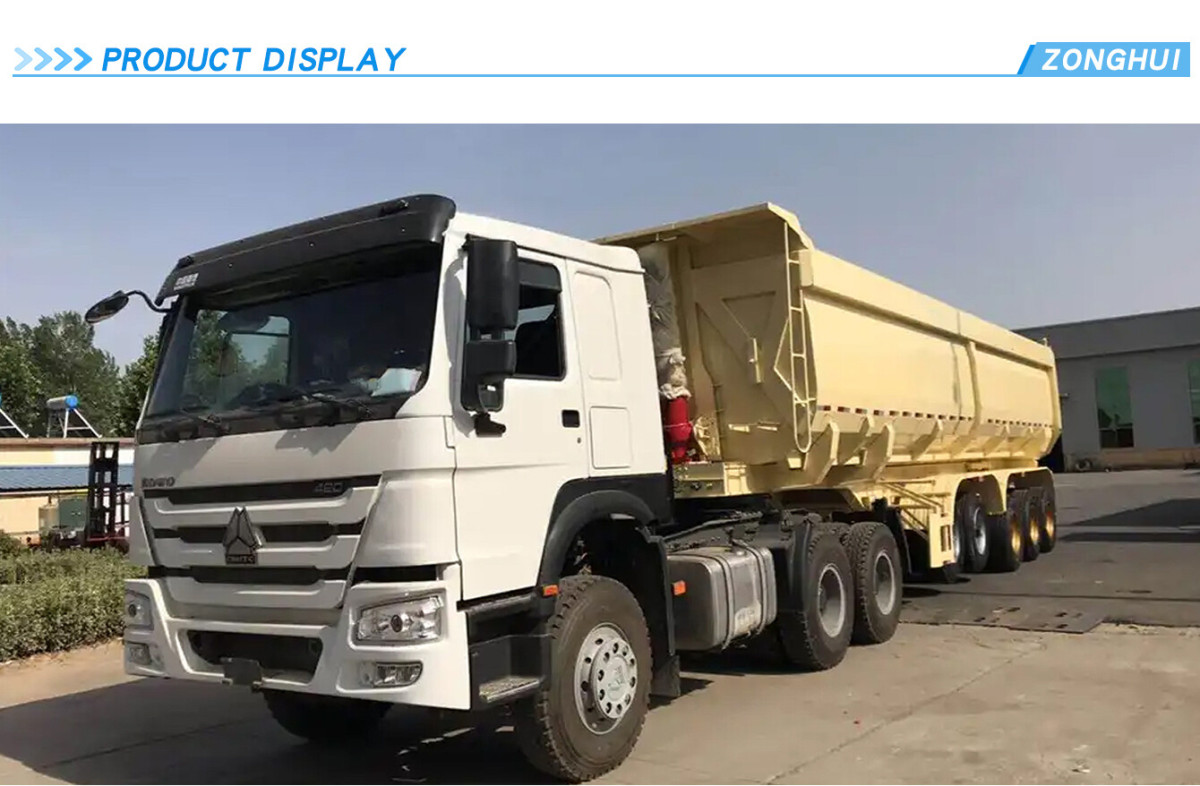

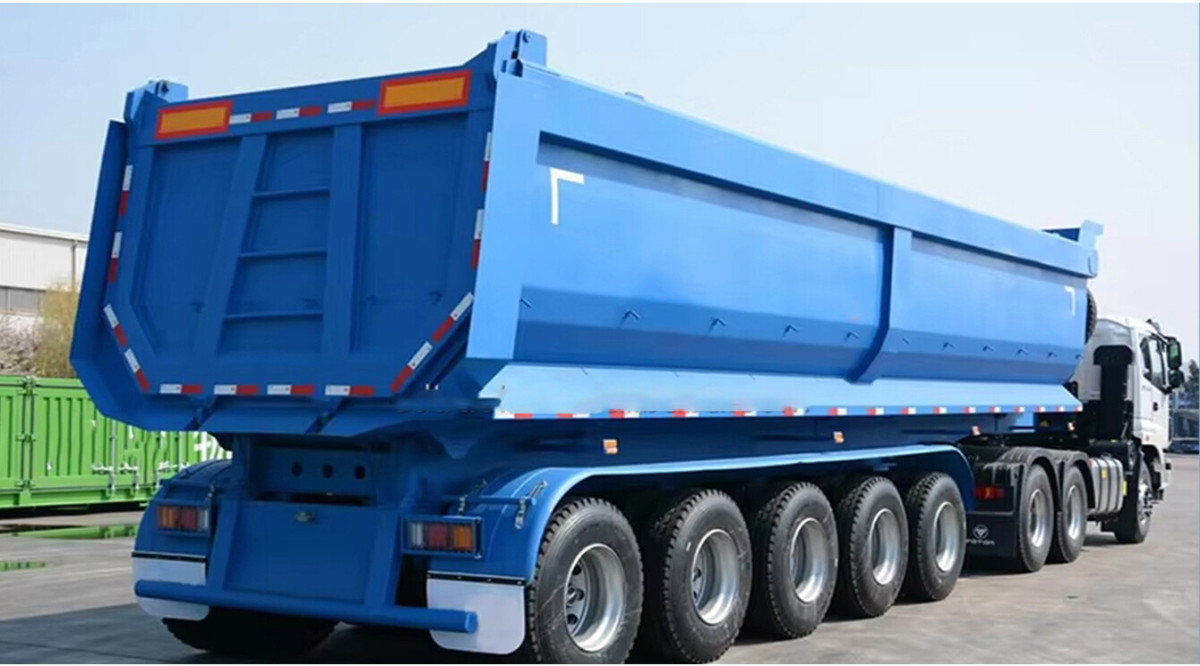

5 Axles 70 Tons End Dump Semi Trailer
Dump trailers will help you move and unload bulk cargo in a very simple and effective way. Especially when dealing with large jobs. Through carefully designed unloading mechanism, operation safety can be well maintained.
End dump trailers are also called rear dump trailers. They are usually used to carry building materials such as sand, stones, ore, and scrap iron.

>>>>PRODUCT  DESCRIPTION

Specifications


  Shape  Square shape
  Dimension  11.7m*2.5m*3.4m (Outside)
  Box Dimension  11m*2.35m*1.8m  45Cubic
  Payload  70T
  Tare weight  About 14T
  Lifting system  214 hydraulic jacking
  Steel thickness  Bottom plate :8mm Side plate:6mm
  Axle  5 axles ( front 2 axles can lift)
  Landing Gear  heavy duty landing gear 28T
  King Pin  2.00 or 3.5 inch bolt-in king pin
  Suspension  Mechanical suspension and air suspension
  Leaf Spring(Strength)  90mm(W)*16mm(T)*10 Layer
  Tire  385/65R22.2*4pcs
  315/80R22.5*12pcs
  Painting  Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
  Shipping Terms  By Flat rack or by bulk
