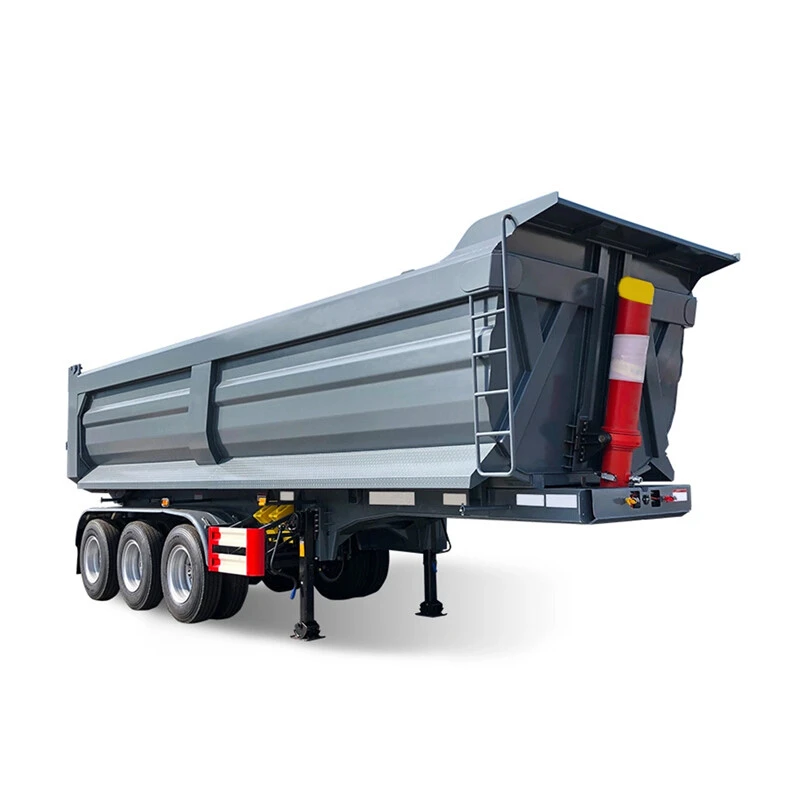

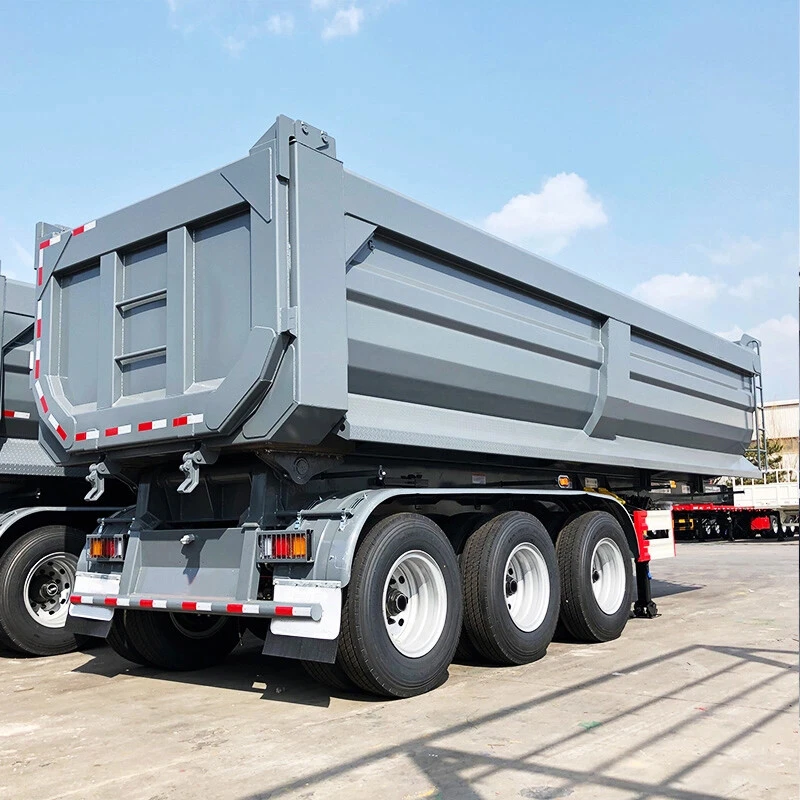

80 Tons Dump Truck Trailer
Tipper semi trailer as popular trailer for sand stone transport ,We can according to your transport goods to design different bottom and side wall thickness for you , and The capacity also can be custom , We Exported 20 Cubic Meters ,30 Cubic Meters and so on , If you are interested in our tipper semi trailer ,We can provide two kinds of shape for you ,U Shape and Square Shape . It also can be choose by yourself .

>>>>PRODUCT  DESCRIPTION

Specifications


  Shape  U shape
  Box Dimension  45Cubic
  Payload  80T
  Tare weight  About 12T
  Lifting system  China Brand

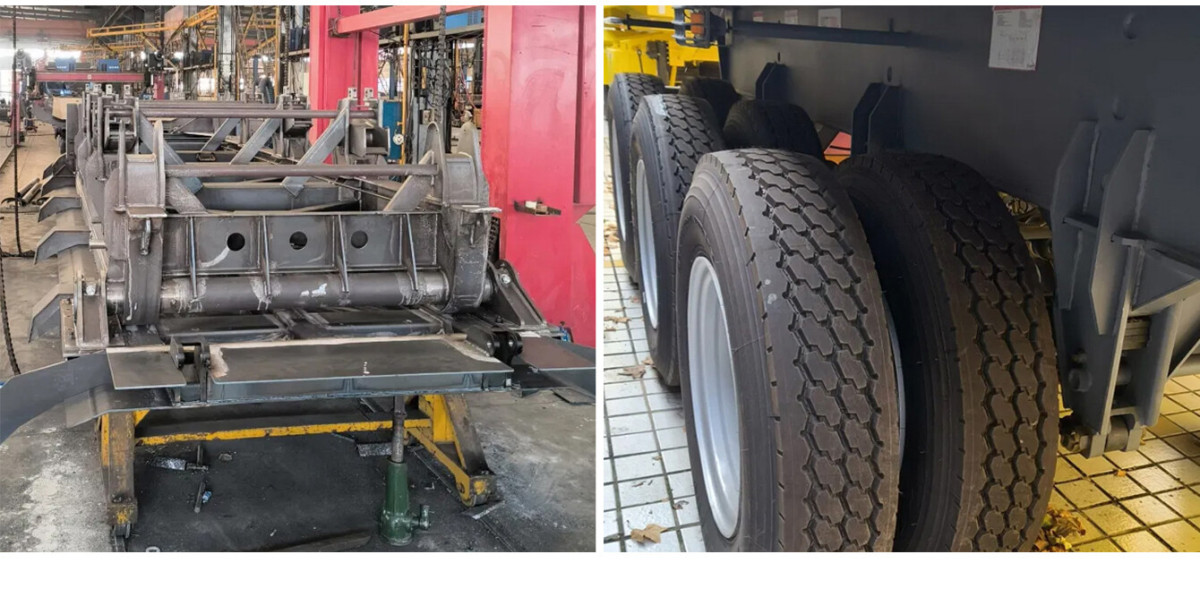

  Frame

  Welding design or Special design  Two beams.Square beam, connected by bolts and nuts, Q345B carbon steel

  material

  Frame Beam(Heavy duty )  Upper and lower plate is 14mm and 16mm, Double middle is 8 mm.Height is 500 mm
  Steel thickness  Bottom plate :8mm Side plate:6mm
  Axle  4 axles
  Landing Gear  28T lifting capacity with two speed
  King Pin  2.00 or 3.5 inch bolt-in king pin

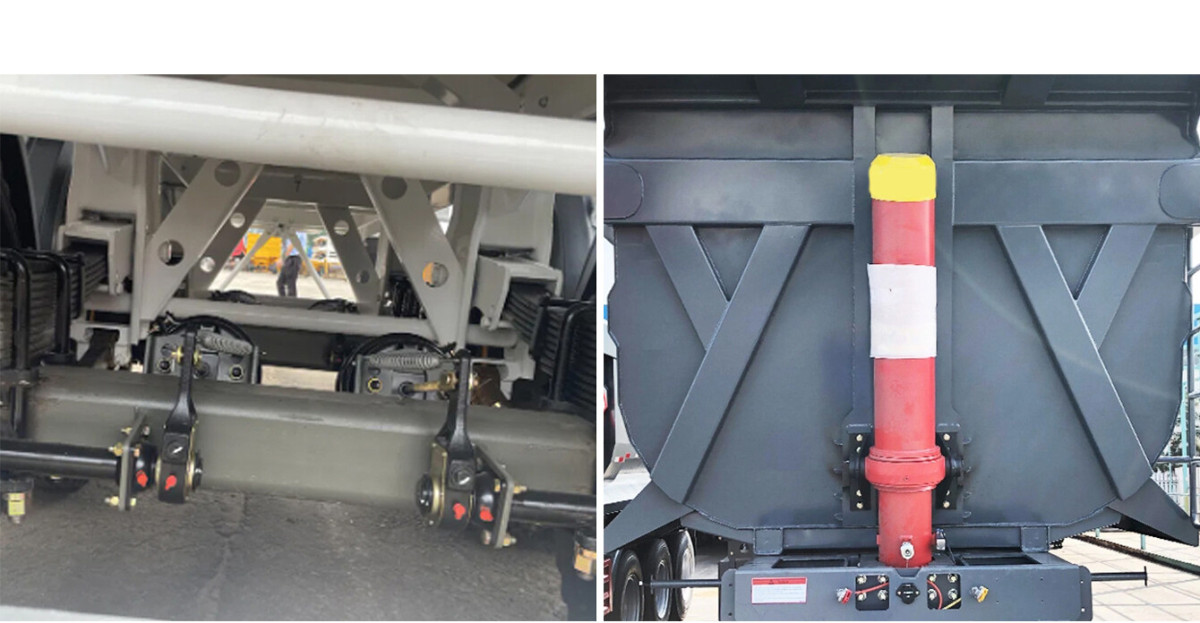

  Suspension  Mechanical suspension
  Leaf Spring(Strength)  90mm(W)*16mm(T)*10 Layer
  Pneumatic  Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks,Emergency relay valve
  Tire  315/80R22.5*16pcs
  Accessories  One standard tool box
