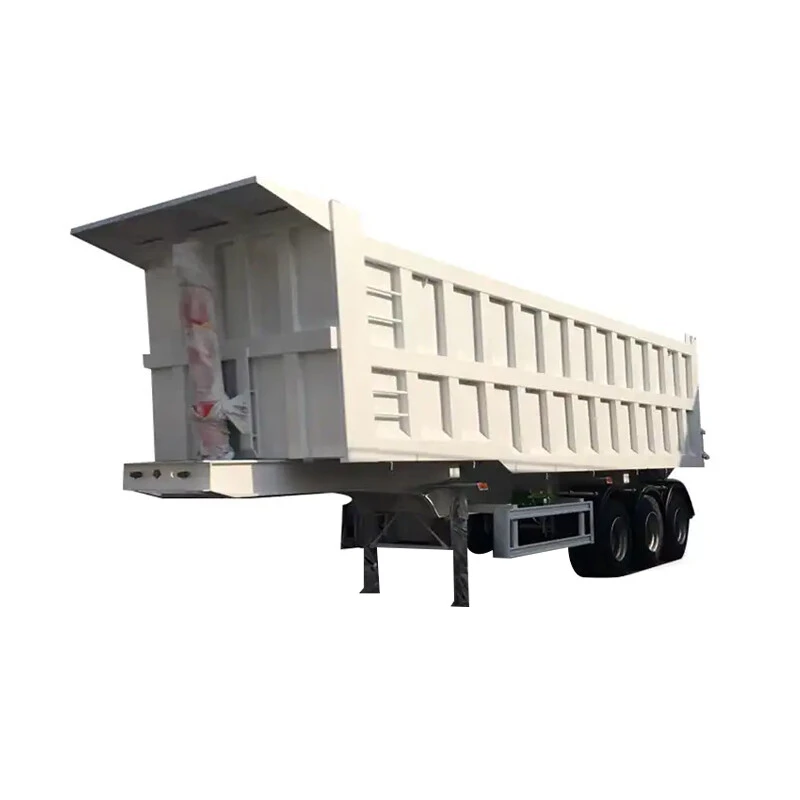

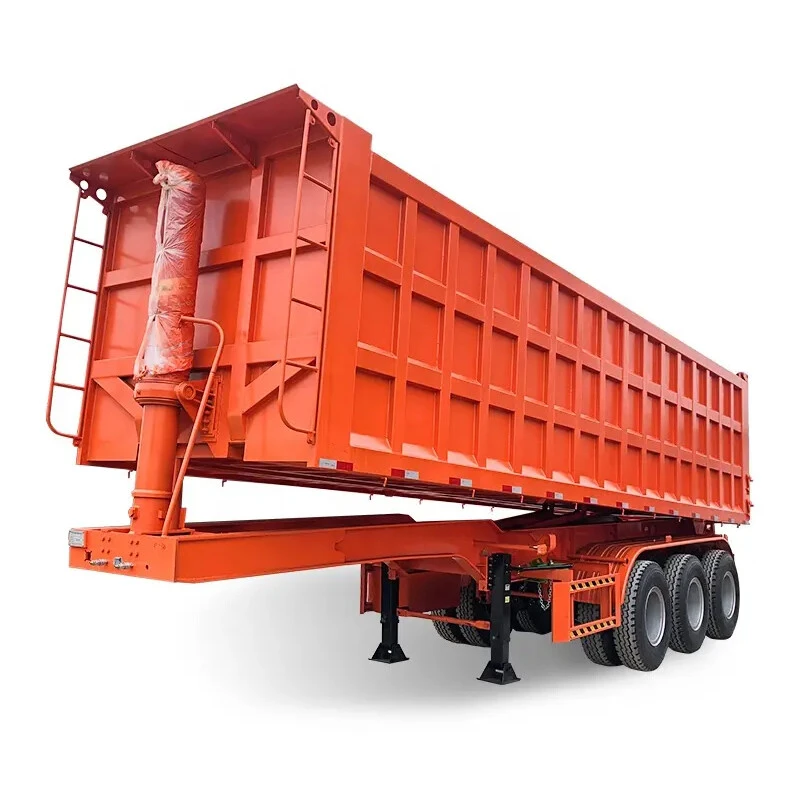

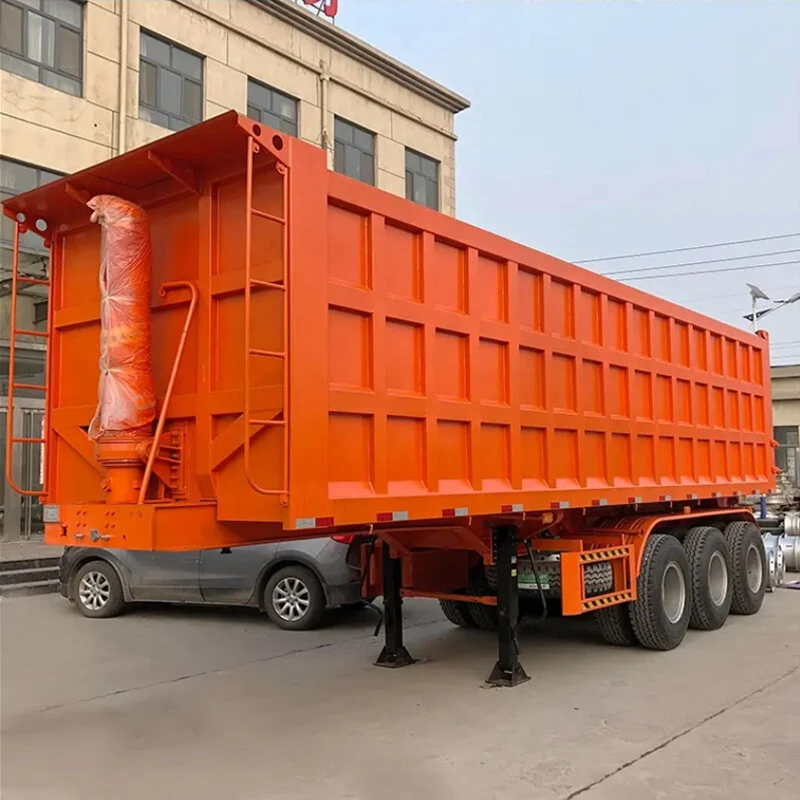

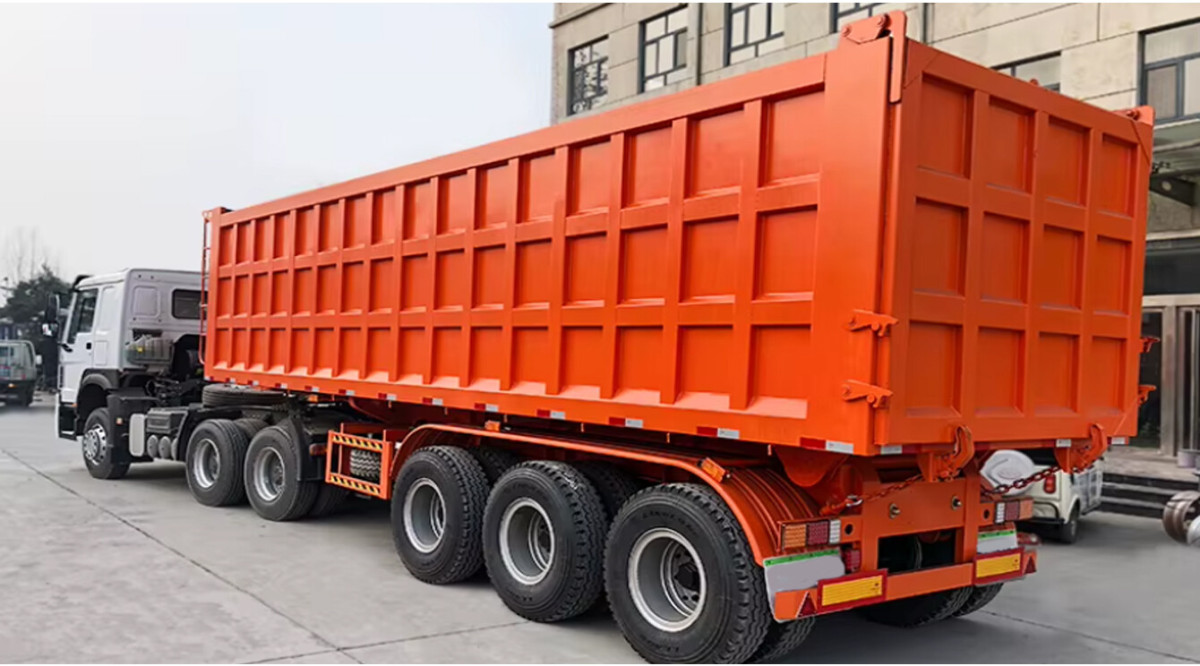

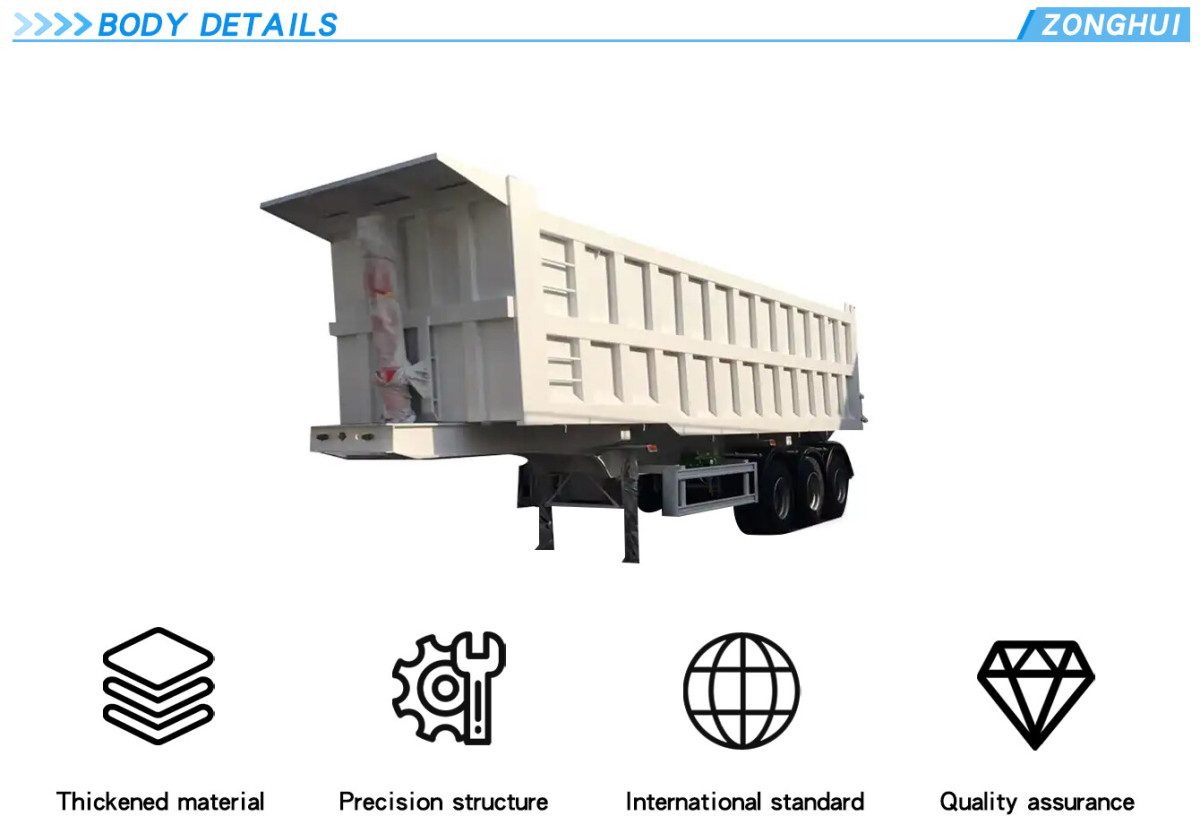

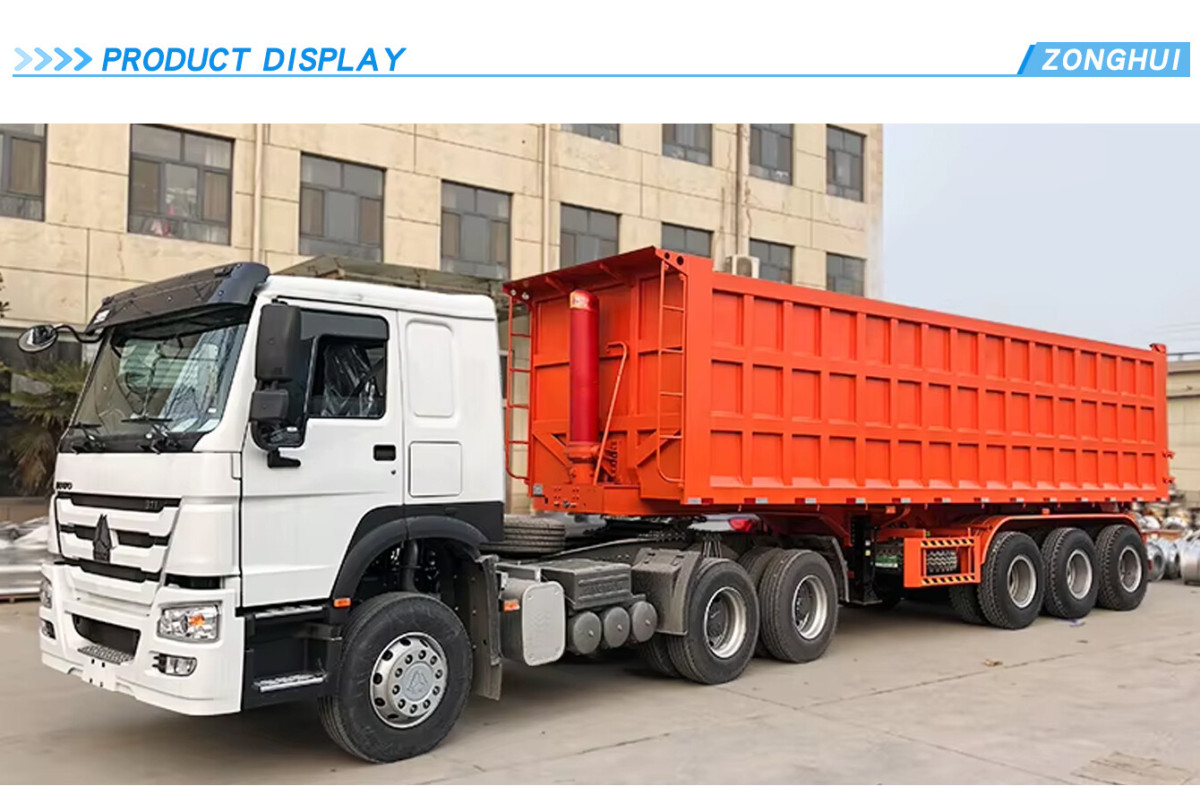

Square Shape Dump Tipping Trailer
square shape dump tipping trailer , square shape and U shape for your choose, our professional trailer design team according to customer different carrying need, provide the best suitable semi trailer design to each customer, best sells volume such as 25 cubic meters , 30 cubic meters , 35 cubic meters, ect.

>>>>PRODUCT  DESCRIPTION

Specifications


  Shape  Square  shape
  Dimension  10m*2.5m*3.4m (Outside)
  Box Dimension  9.2m*2.35m*1.7m
  Payload  60T
  Tare weight  About 9.5T

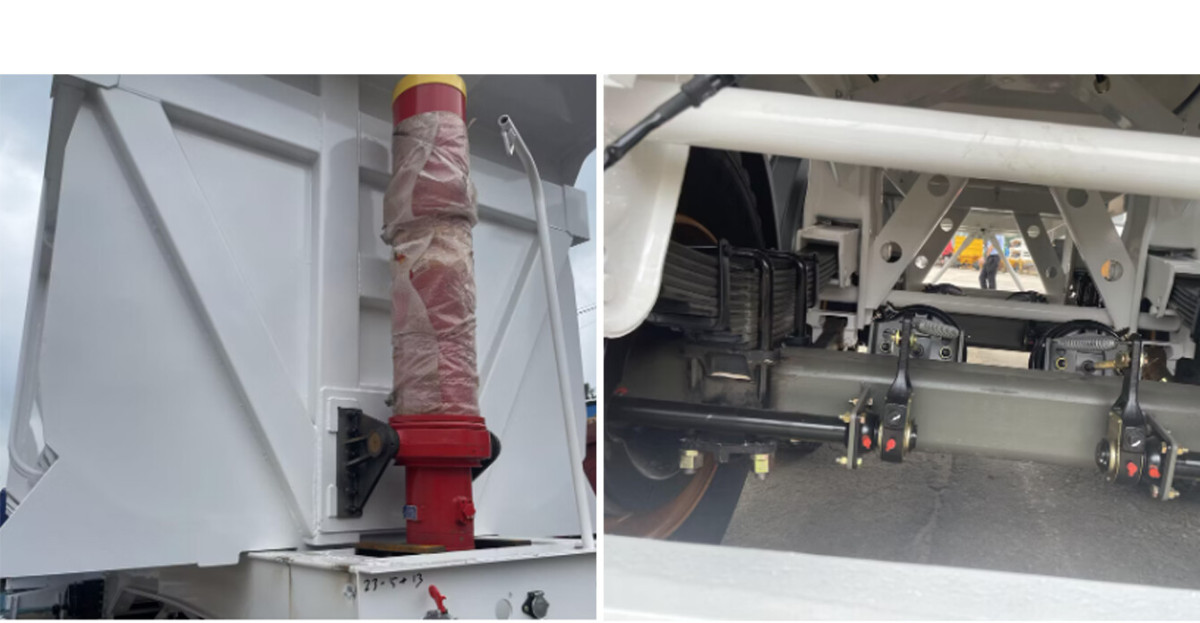

  Lifting system  196 hydraulic jacking
  Steel thickness  Bottom plate :8mm Side plate:6mm
  Axle  3 axles
  Landing Gear  heavy duty landing gear 28T
  King Pin  2.00 or 3.5 inch bolt-in king pin
  Suspension  Mechanical suspension
  Leaf Spring  90mm(W)*13mm(T)*10 Layer (Strength)
  Tire  12R22.5*12pcs

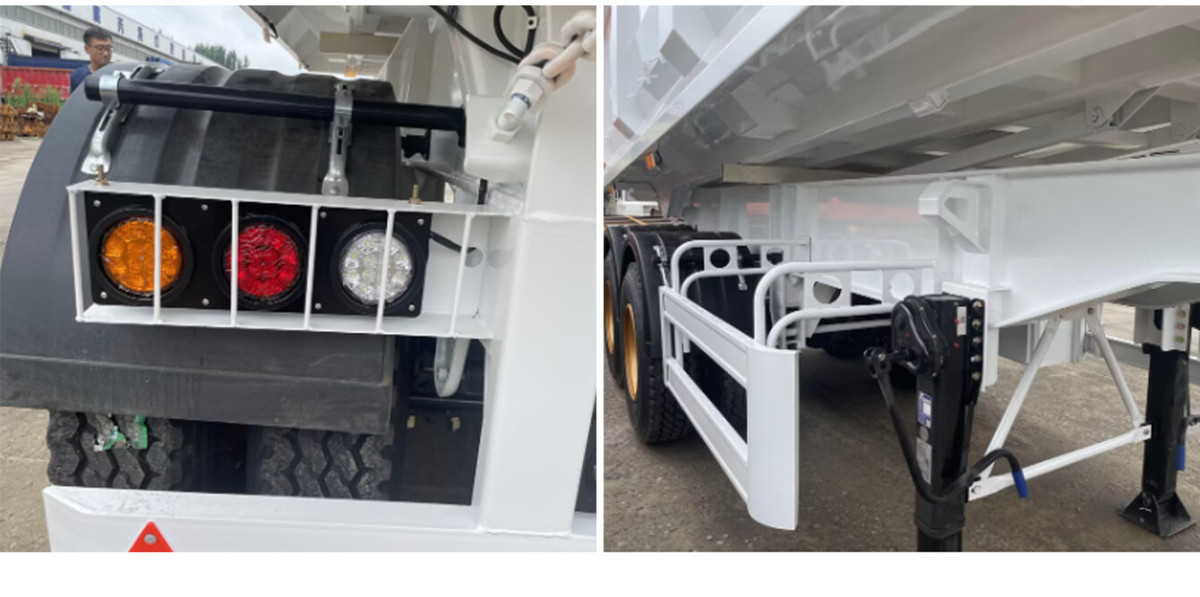

  Accessories  One standard tool box
  Painting  Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
  Shipping Terms  By Flat rack or by bulk cargo ship
