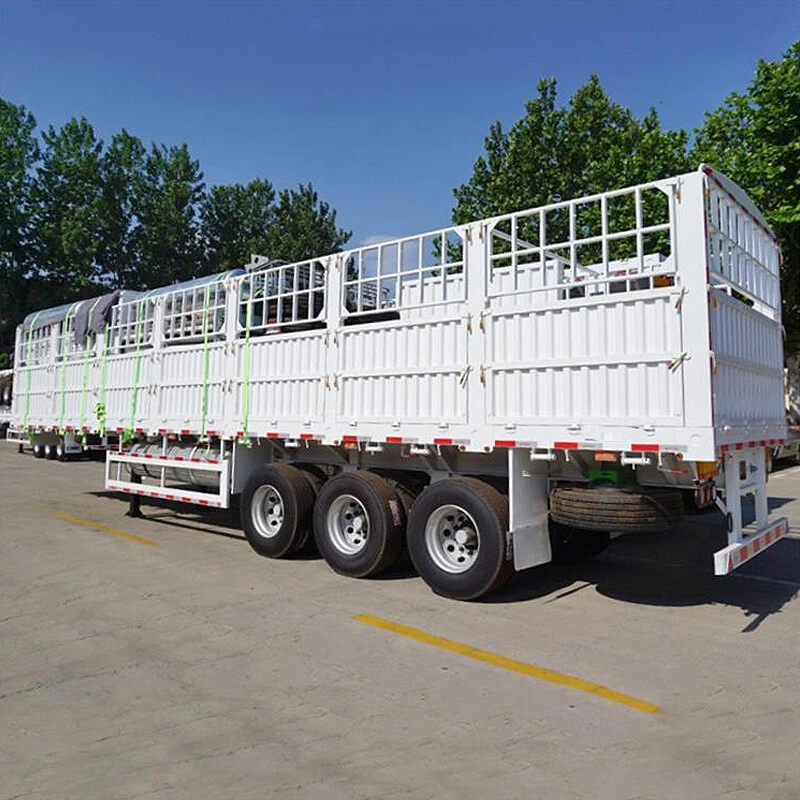

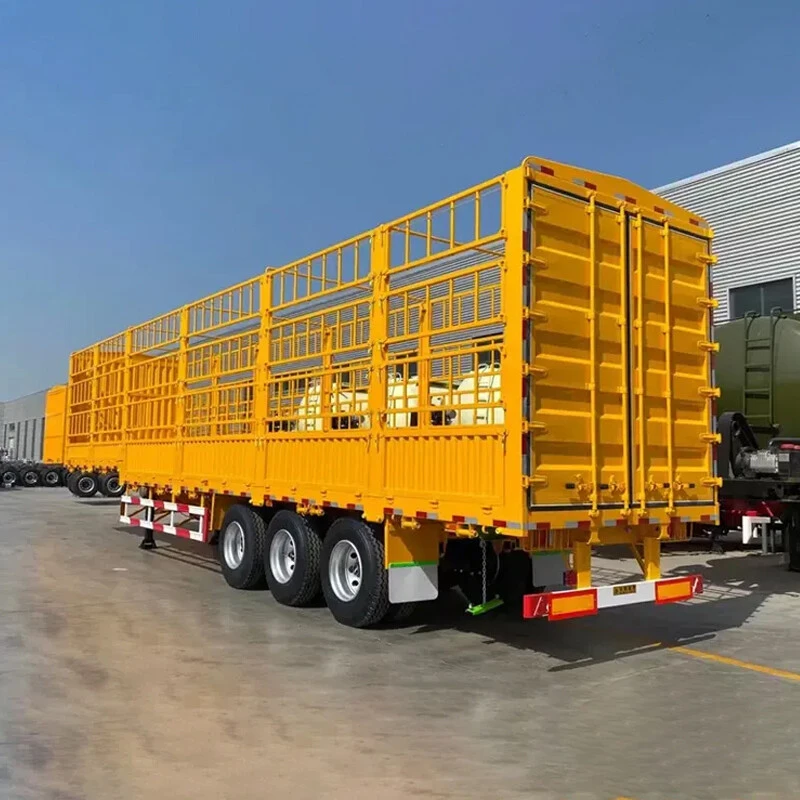

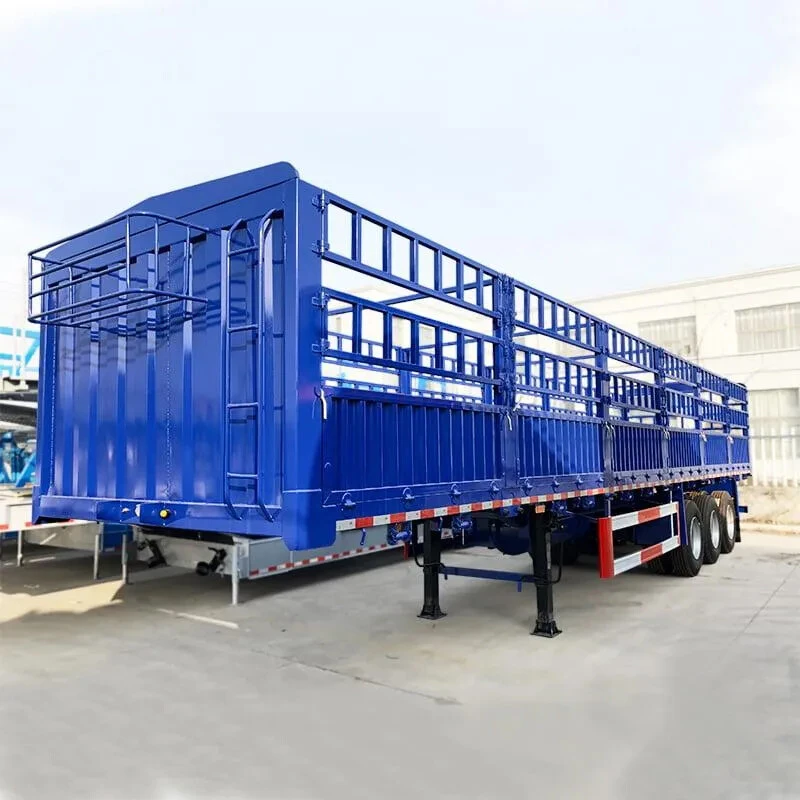

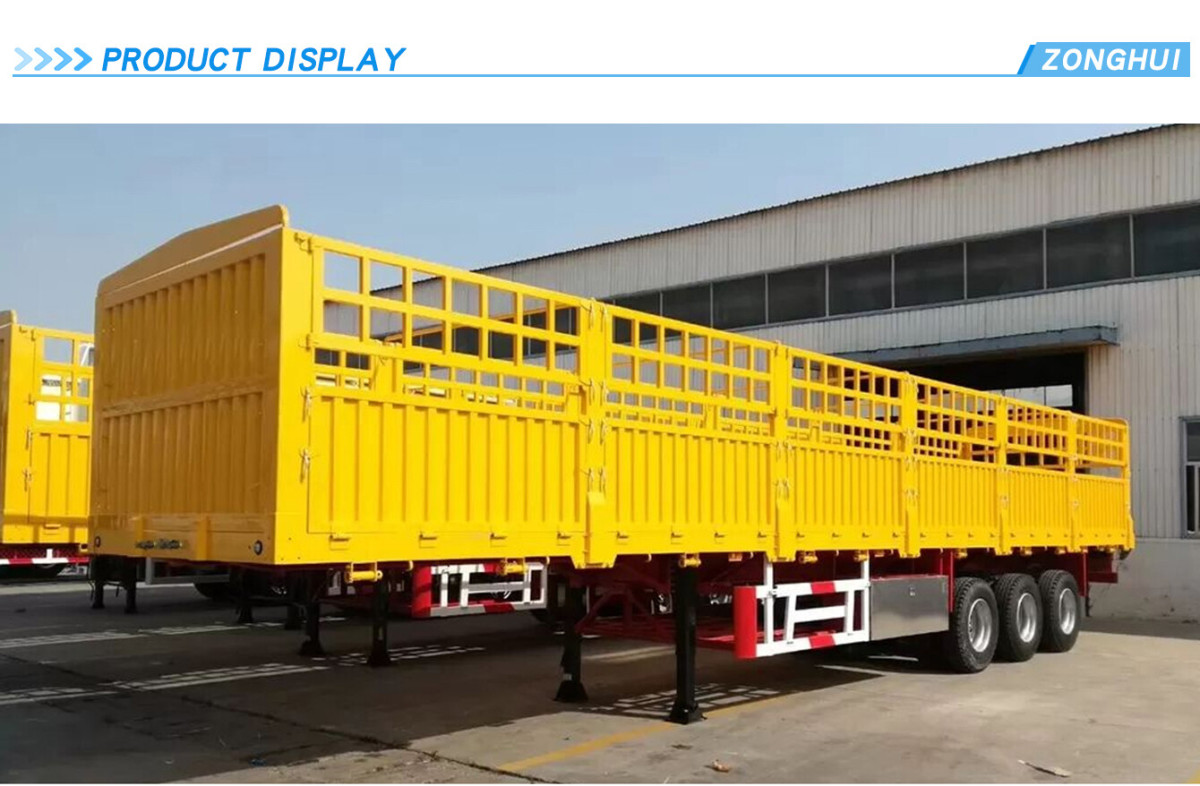

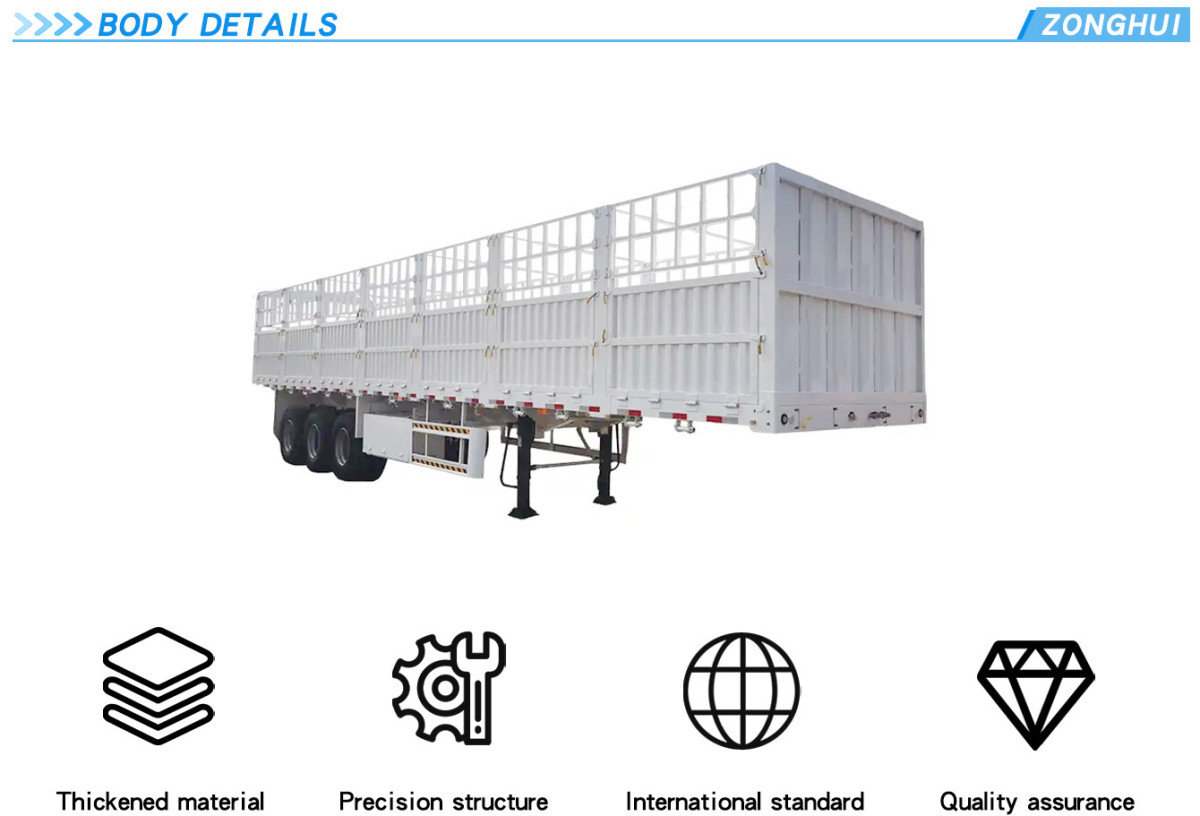

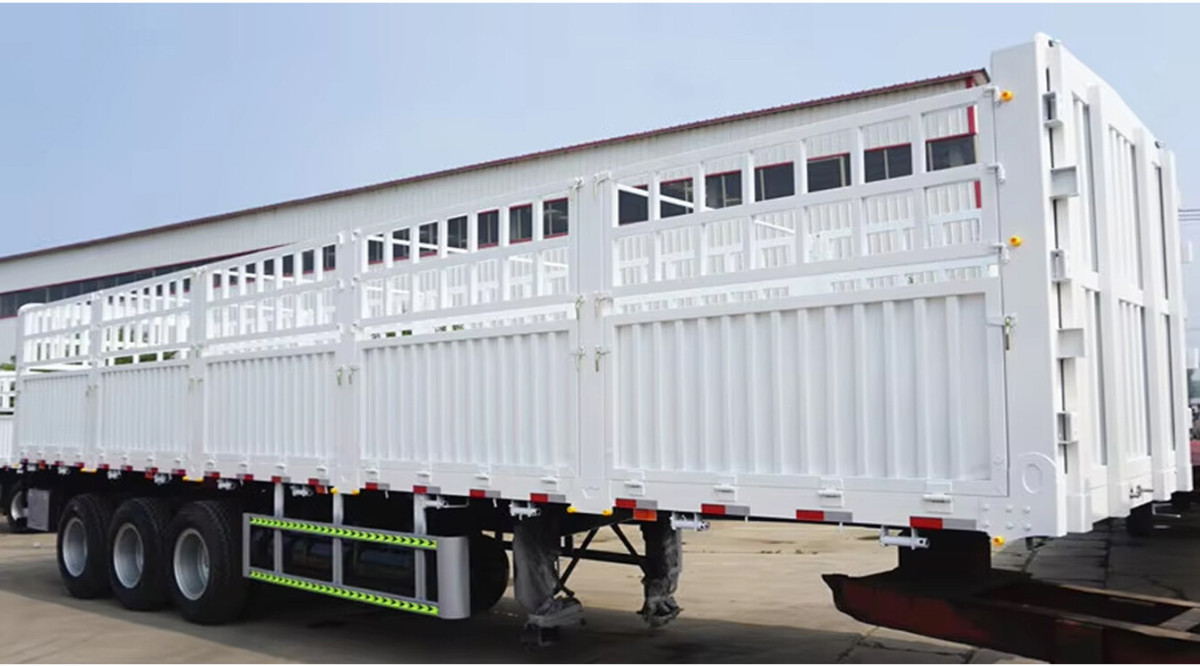

3 Axles Cargo Trailer With Fence
The cargo trailer with fence is versatile transportation equipment. It’s designed to carry various goods while providing extra safety and protection. This trailer uses advanced tech and top materials. These ensure its durability and performance. Its main feature is the fence structure. It stops goods from slipping off the trailer. It also gives extra support and protection.

>>>>PRODUCT  DESCRIPTION

Specifications


  Outside Dimension  14000×2650×3950mm
  Side wall height  800mm
  Fence height  600mm
  Payload  30-60Ton
  Tare weight  About 8.2T
  Twist lock  12 units
  Main beam

  Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic

  Submerged-Arc processes

  Frame Beam  Top Flange 16mm,width 146mm;
  Middle Flange 10mm;
  Bottom Flange 18mm, width 146mm, main beam height 500mm
  Frame Floor  The Thickness is 3mm pattern
  Axle  3 axles; FUWA/BPW brand axles
  Landing Gear  28ton, JOST brand
  King Pin  2.00 or 3.5 inch
  Suspension  Mechanical suspension, Thicken type
  Tire  12R22.5; 315/80R22.5; 12.00R20
  Rim  16pcs, Thicken type
  Accessories  One standard tool box
  Electrical system  24 volt electrical system
  Painting  Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
  Color  Blue, yellow,Customized
