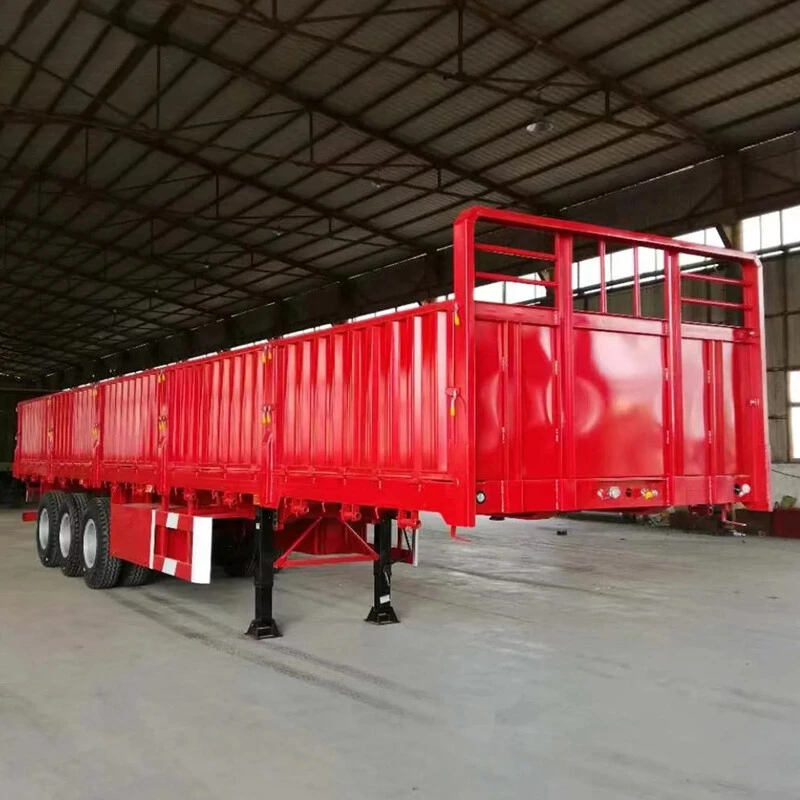

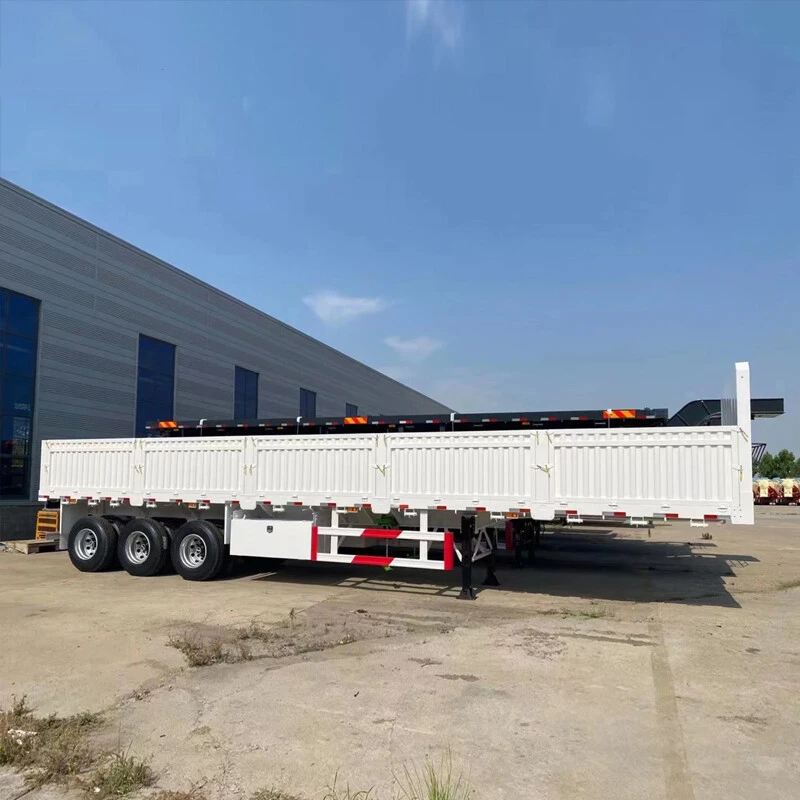

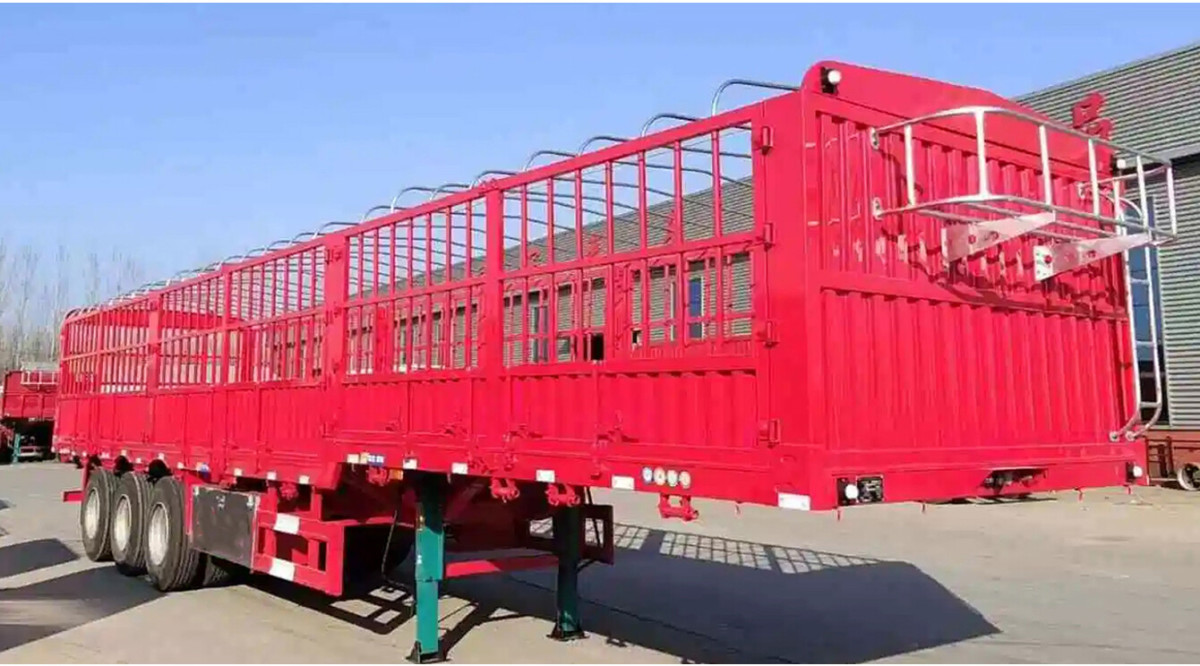

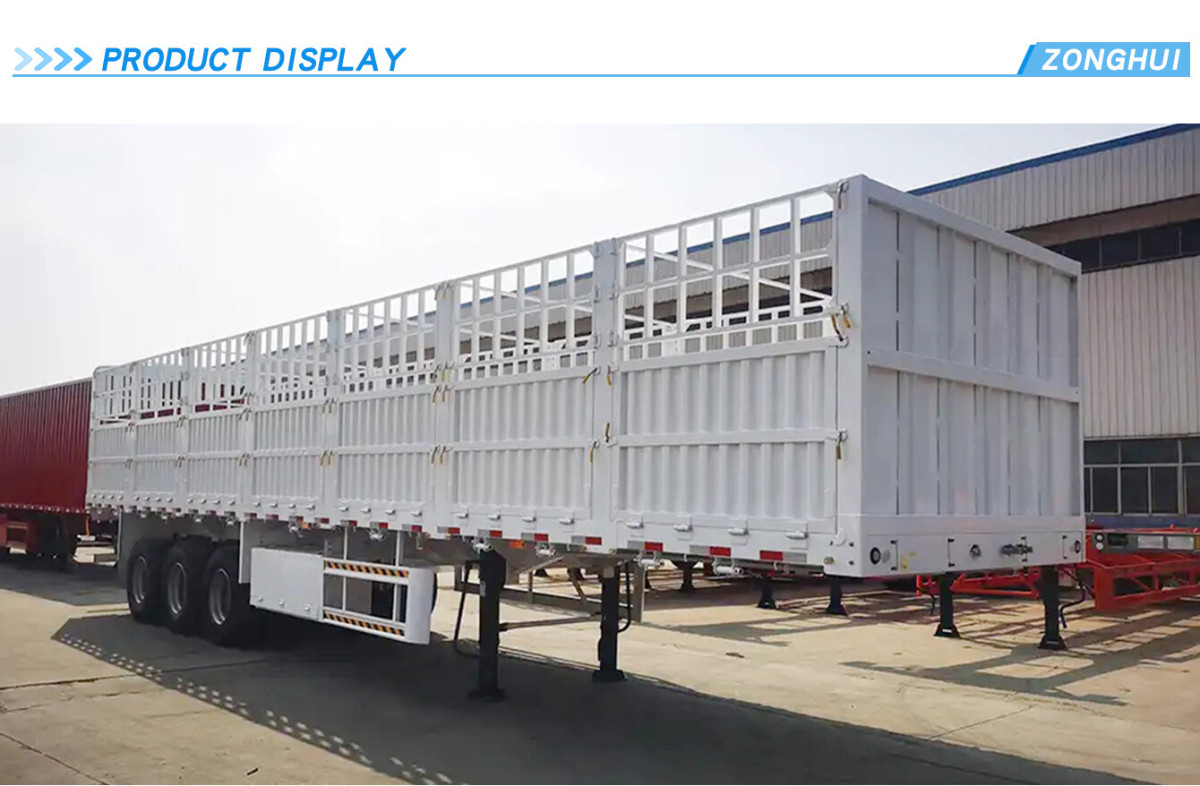

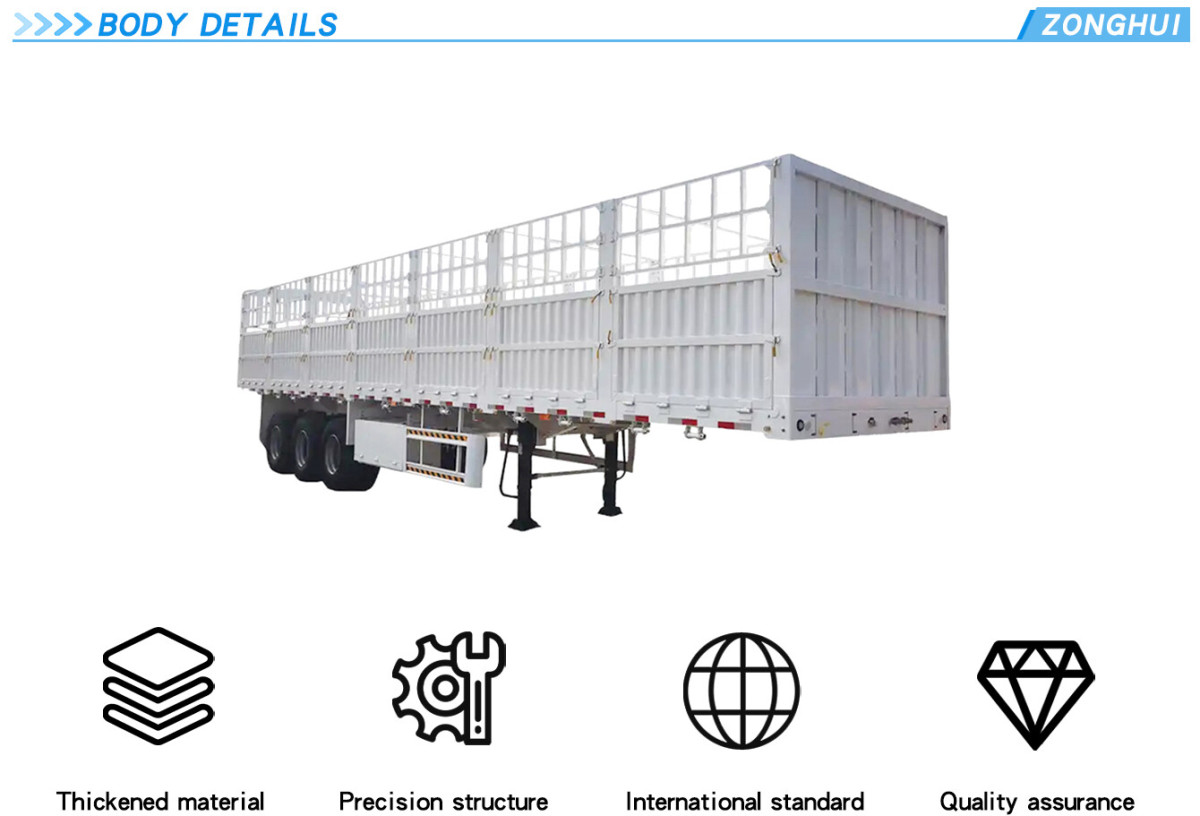

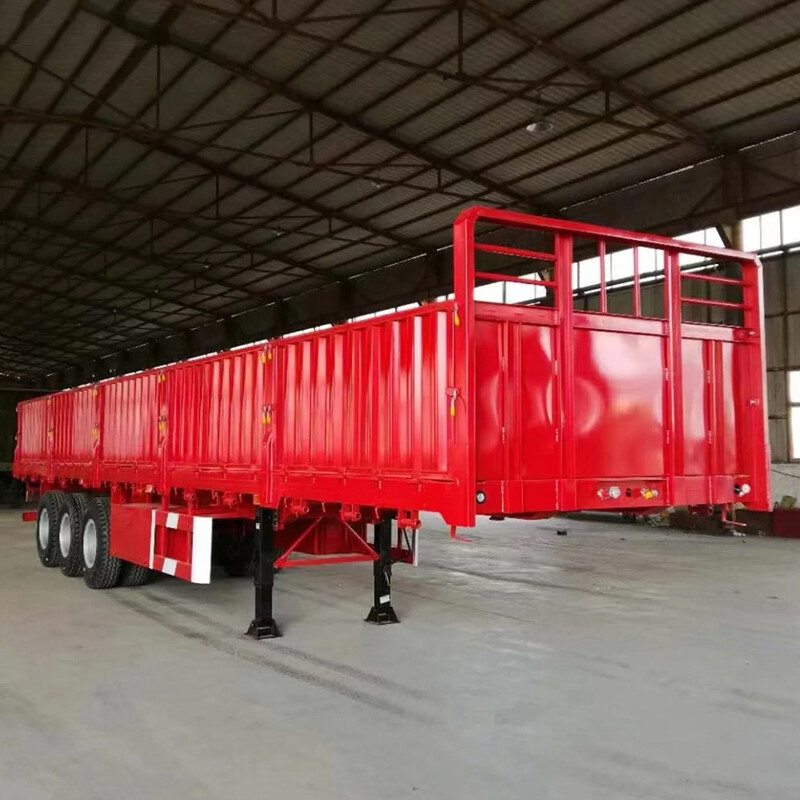

60 Tons Fence Cargo Trailer
3 Axles fence cargo trailer , the fence and side wall height can be adjust , and we can according to your requst to design the fence height , If you transport bulk caego our Standard Specifications is enough for you ,If you transport cattle and livestock we need to increase the height for you ,and we can according to your order Amount to choose the best shipping way for you , and we can save the sea freight for you as well .If you carry heavy tonnage we can recommend 4 Axles for you , 4 Axles can transport 80-100 tons no problem .

>>>>PRODUCT  DESCRIPTION

Specifications


Dimension12.6m×2.6m×3.2m
Payload30-50T
Fence height Side wall height 0.9m basket space 0.8m
Tare weightAbout  8.5T
Twistlock12 units
Main beamHeavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Frame BeamTop Flange 14mm,width 140mm; Middle
Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height  500mm
Frame FloorThe Thickness is 3mm pattern
Edge beam16# Channel
Through beam10#Channel
Along beam6#Channelx6
Axle3 pcs 14 tons
Landing Gear28T lifting capacity with two speed Jost brand
King Pin2.00 or 3.5 inch bolt-in king pin
SuspensionMechanical suspension
Leaf Spring90mm(W)*16mm(T)*10 Layer
