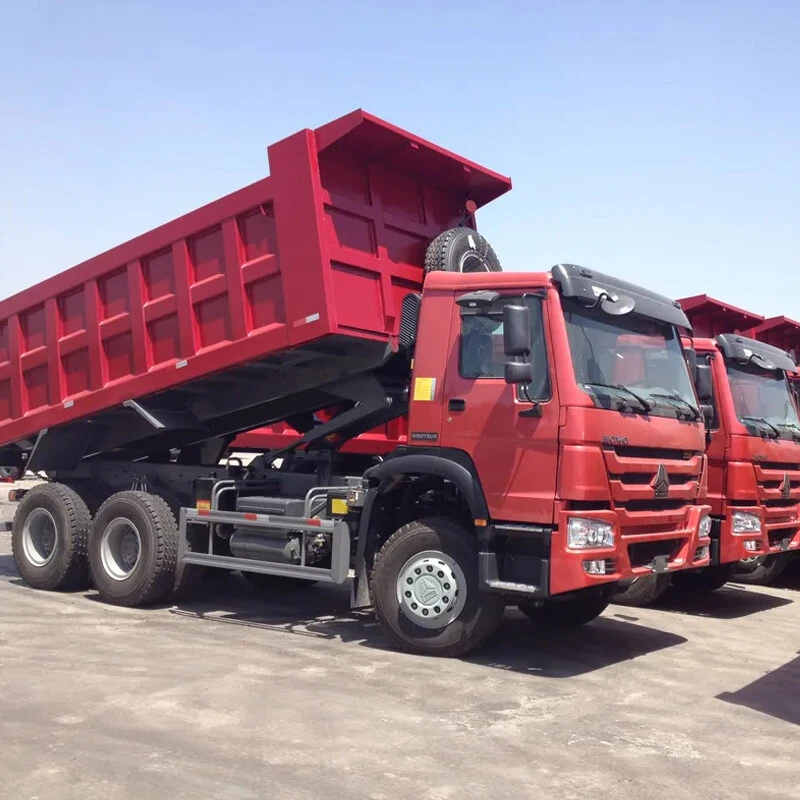

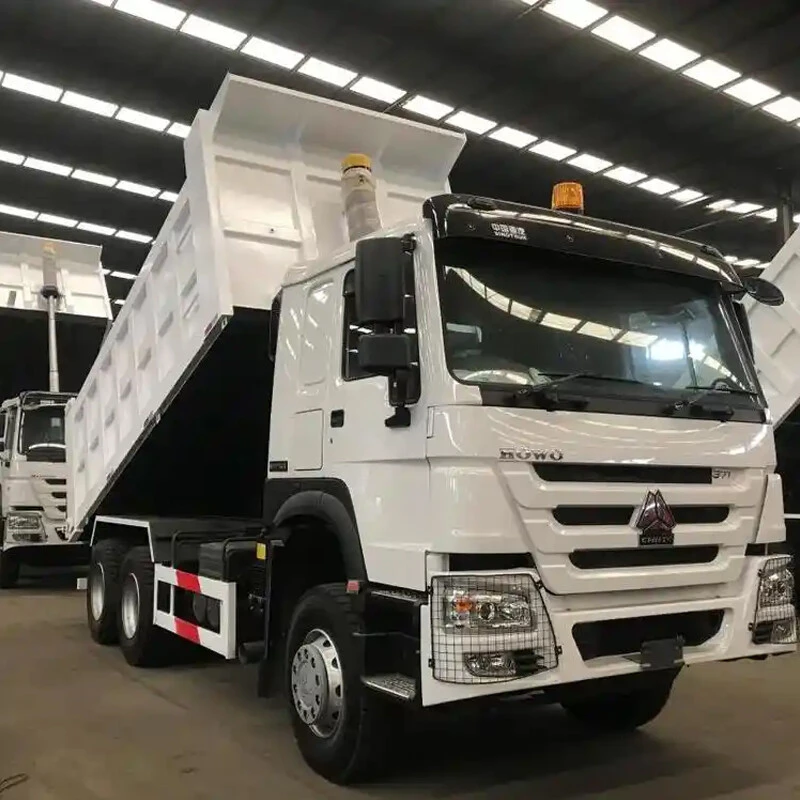

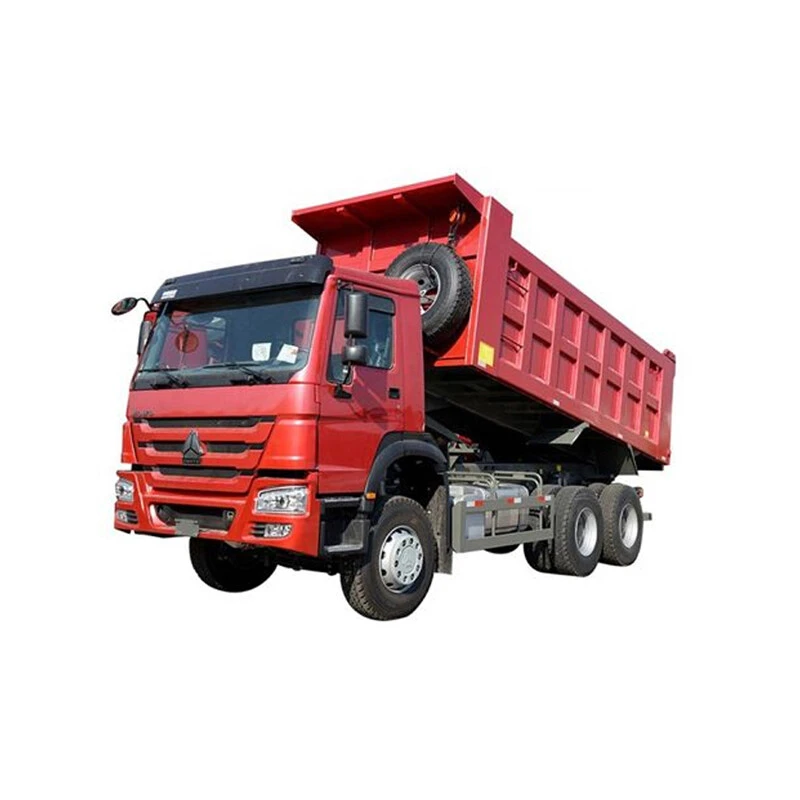

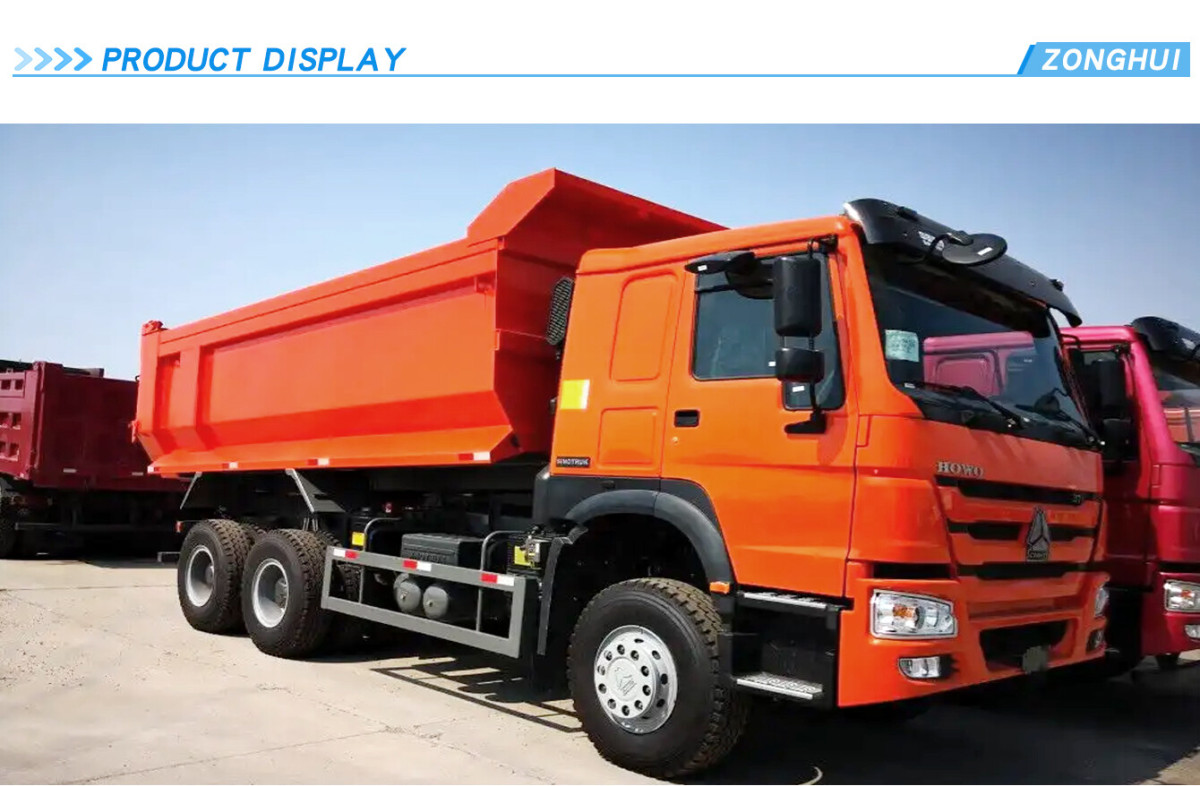

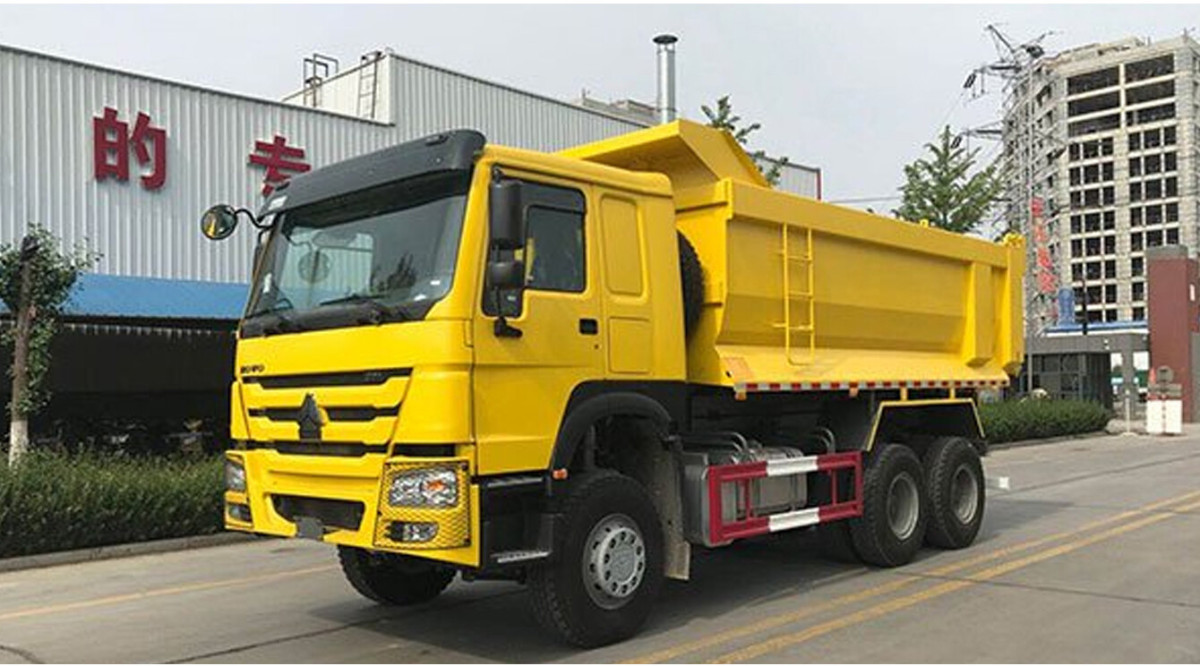

HOWO U shape bucket dump truck brand new manufactured in 2019. Special U shape box can have faster discharging speed and with fluent outside design more fashion and firm. The customer do the contractor construction business, need to transport sand, rocks, stones, gravels etc construction materials.
Specifications
Dimension | 8645*2500*3450mm (Customized) |

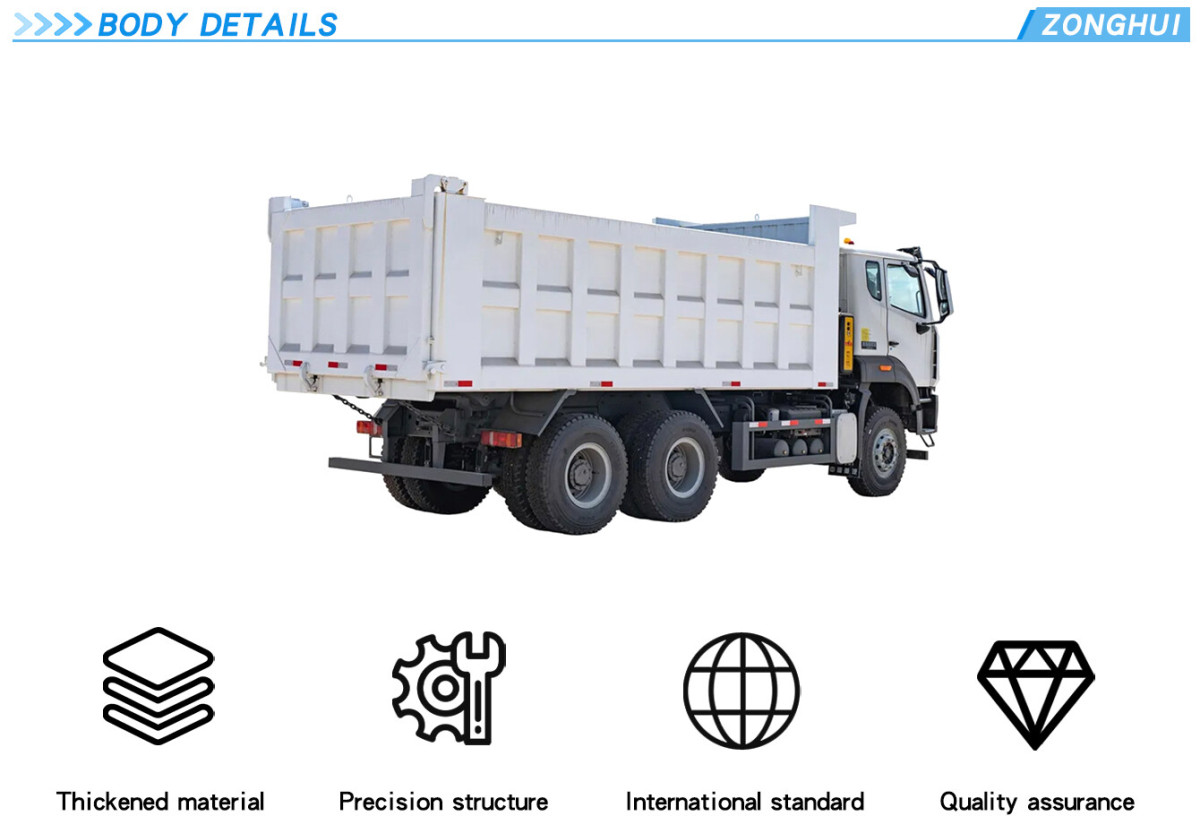

Bucket | 5800*2300*1500mm ; 20 Cubic, bottom 8mm side 6mm |
Cabinet | HW76, New face, with single berith, with A/C |
Load Capacity: | 20-40Ton |
Usage | Transport sand, rock, gravel etc construction materials |
Cylinders | T middle lifting system |

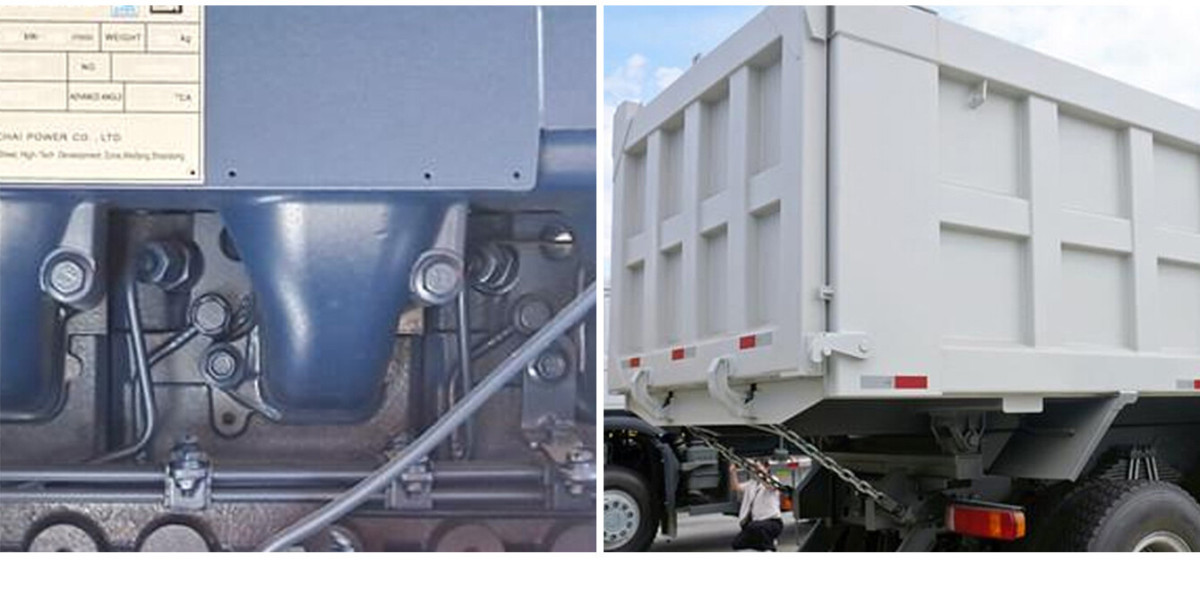

Engine | WD615.47 , 371HP, EURO 2 |
Drive Type | Left Hand Drive |
Transmission | HW19710 |

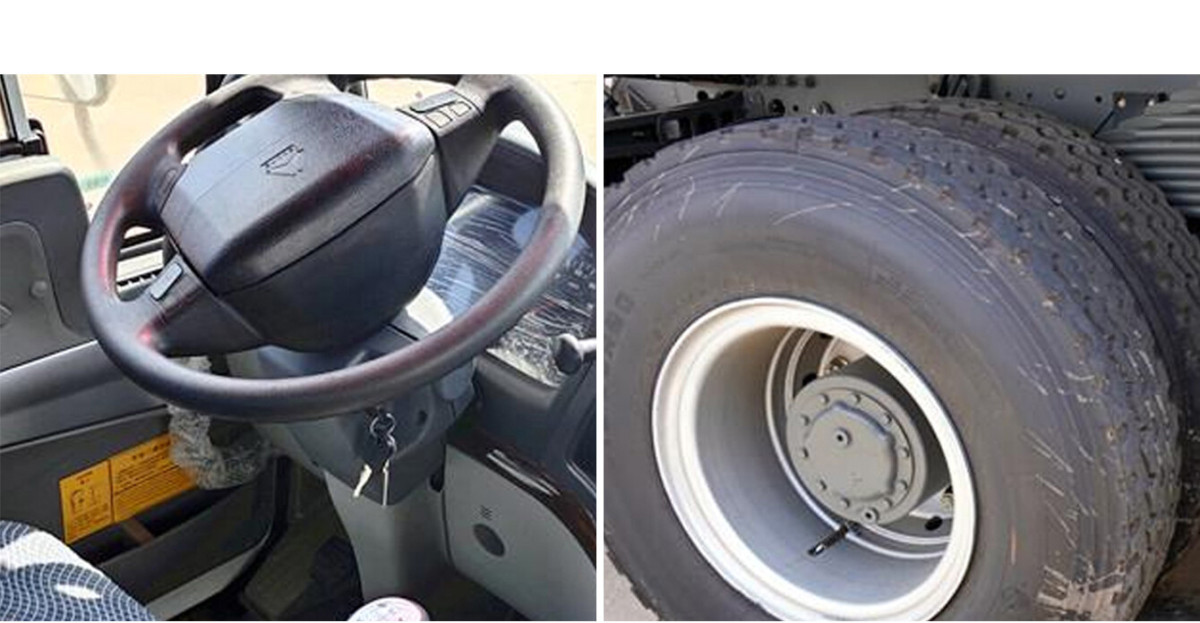

Steering | ZF8118 |
Drive Axle | HC16, double axles, dump type |
Front Axle | HF9, drum type |
Tire | 12.00R20 with 11pcs |
Bumper | High bumper |
Fuel Tank | 300L |
Electrial System: | 24V; 7 ways receptacle; LED lamps |
Colour | Comply with the customer’s requirement |
