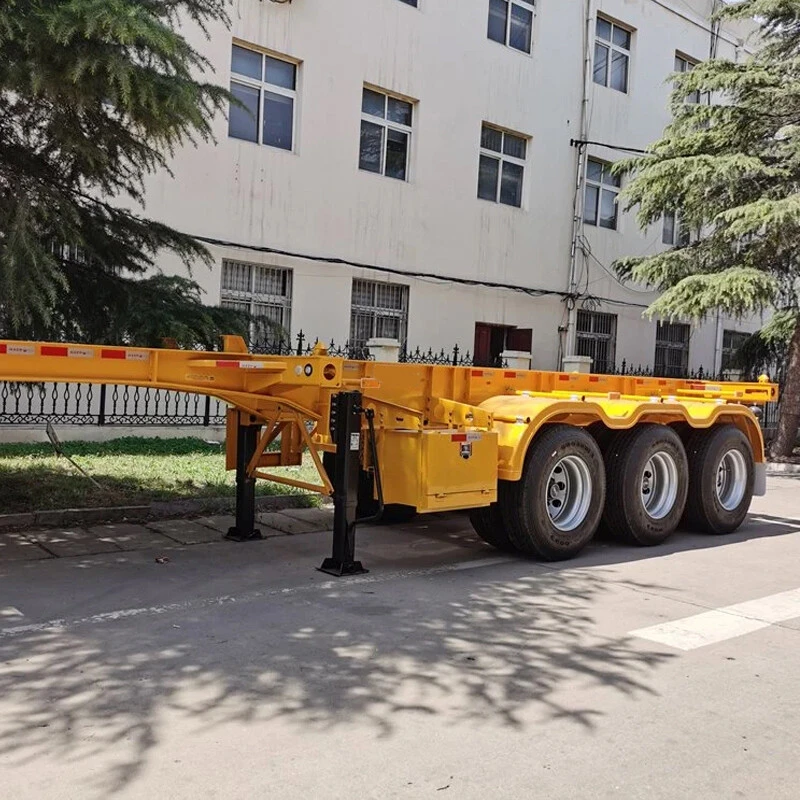

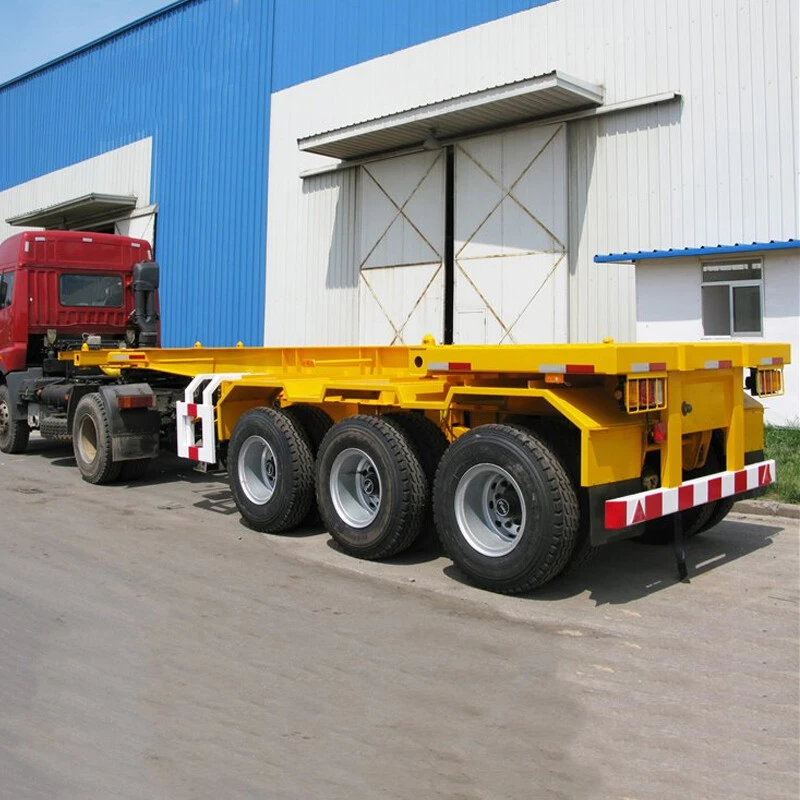

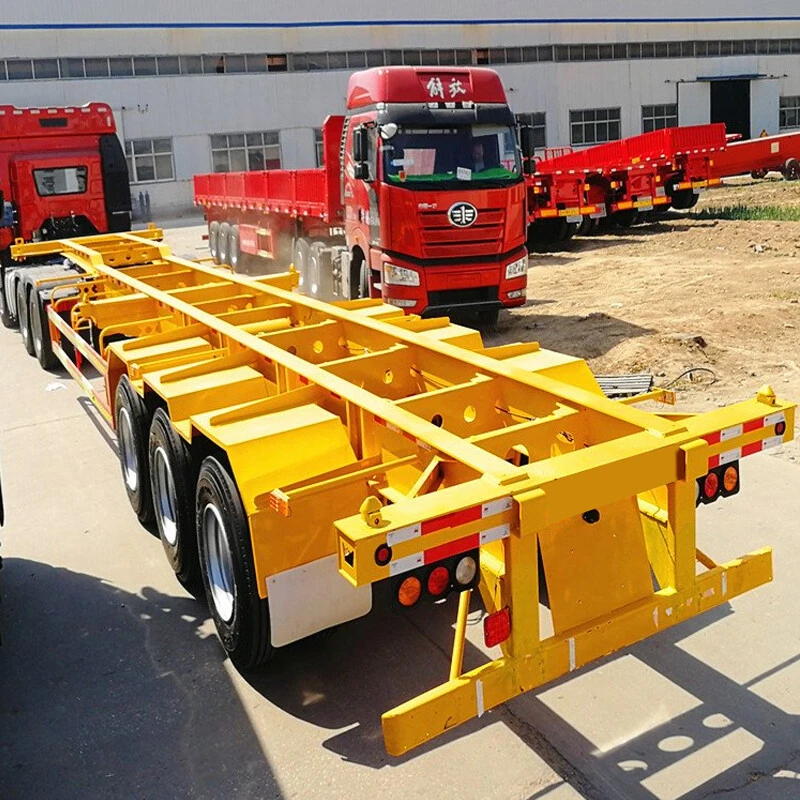

Chassis Skeletal Semi Trailer
Skeleton semi trailers are usually used to transport containers of 20 feet, 40 feet, and 45 feet. We can also produce skeleton semi trailers separately for customers according to their needs. The configuration of skeleton semi-trailer is very good and has met the certification requirements.

>>>>PRODUCT  DESCRIPTION

Specifications


  Dimension  12500*2500*1550mm
  Height of skeletal trailer  1550mm
  Width  2500mm
  Skeletal trailer weight  5600Kg
  Main Beam  “I” Section 500mm height Q345/T700 material
  Twist Lock  8 set ISO Standard
  Suspension  Mechanical Suspension
  Axle  3 axles BPW/FUWA/PDME etc
  Rim  8/12 pieces 9.0-22.5 Steel/Aluminum
  Tire  8/12 pieces 12R22.5 Bridgestone/Triangle/Linglong etc
  Brake Valve  WABCO
  Brake Chamber  4/6sets T30/30
  Air Tank  28L
  Brake Pipe  Nylon Wire Pipe
  Landing Gear  28T Lifting JOST
  Kingpin  2″(50mm)/3.5″(90mm) JOST Bolting Type
  Lights  12v/24v LED Waterproof
  Color  Customized
