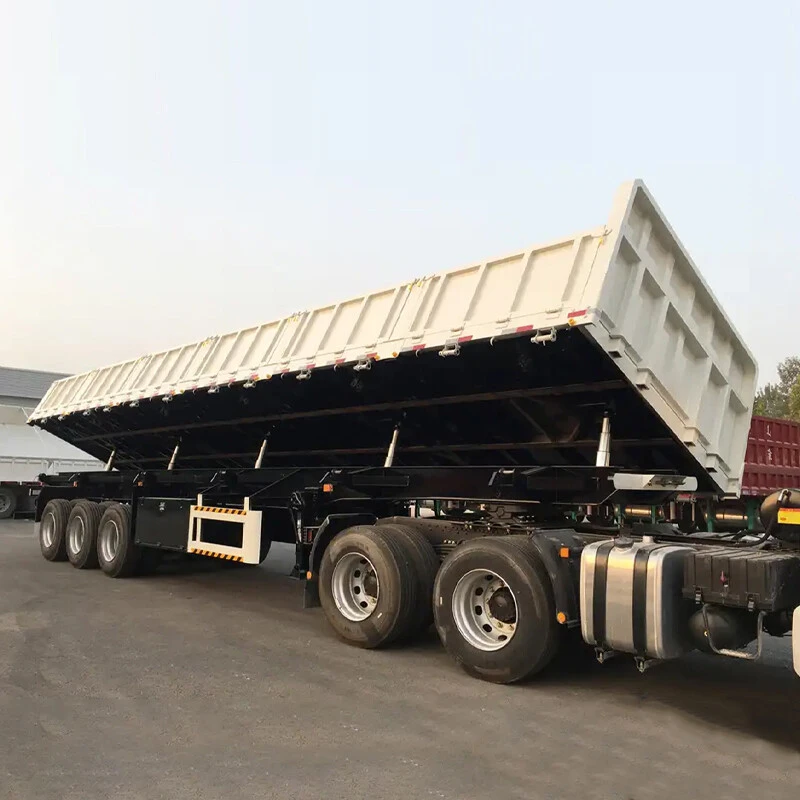

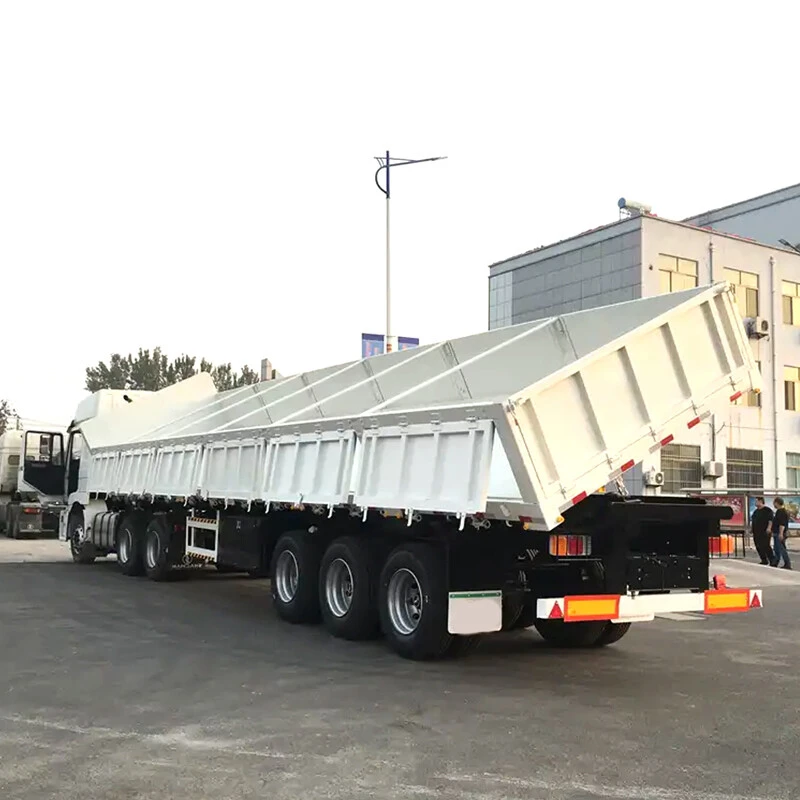

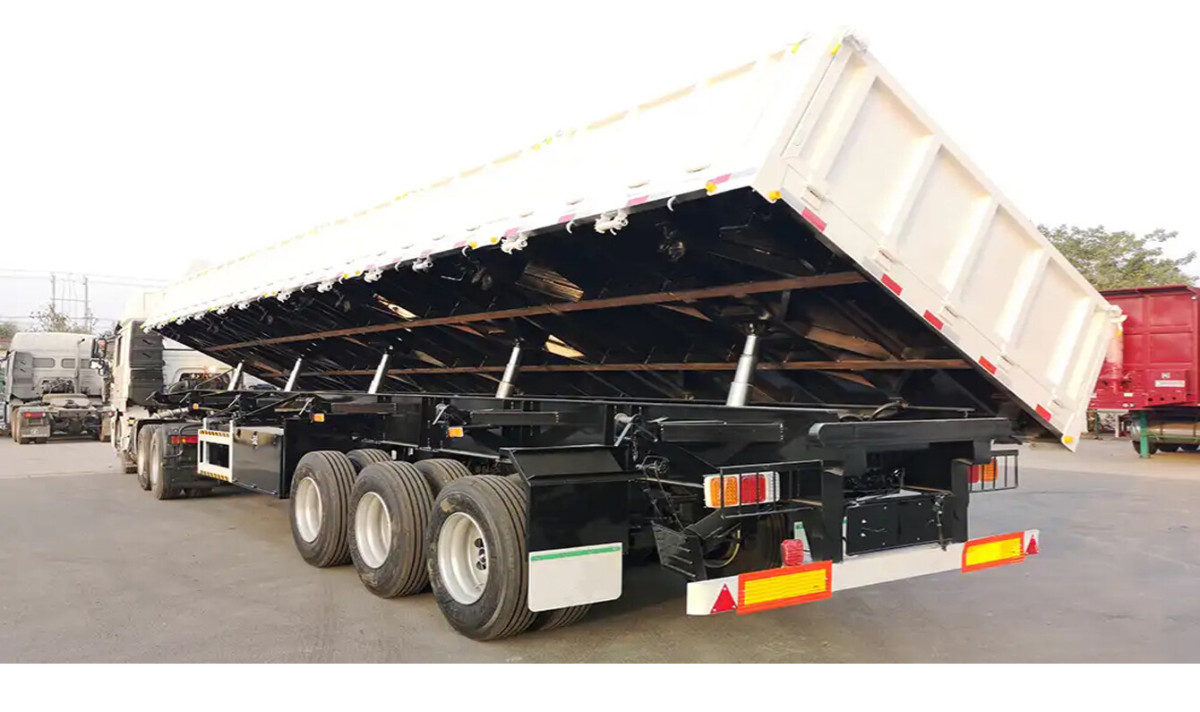

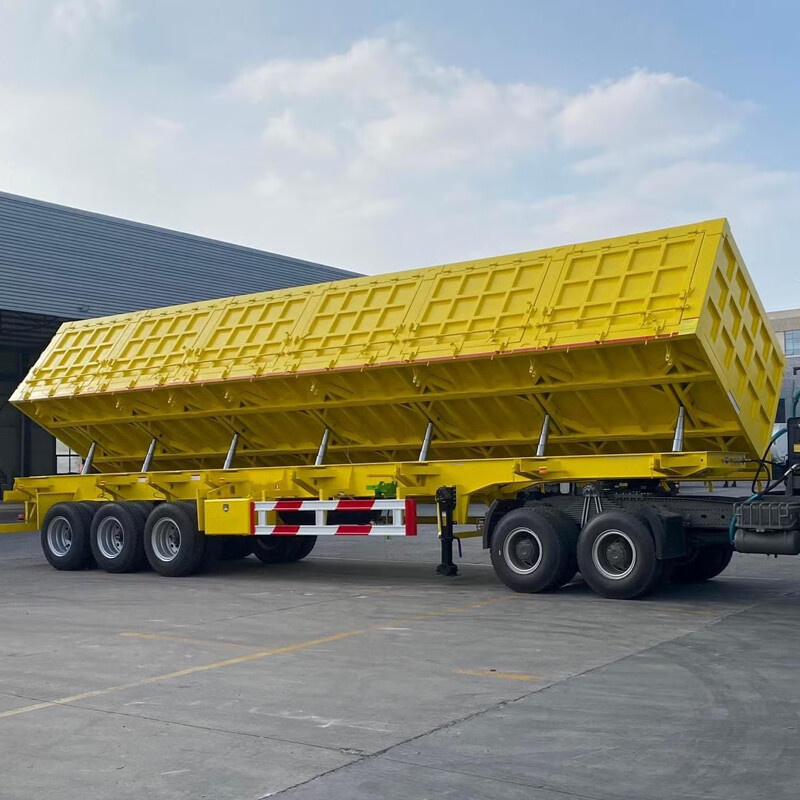

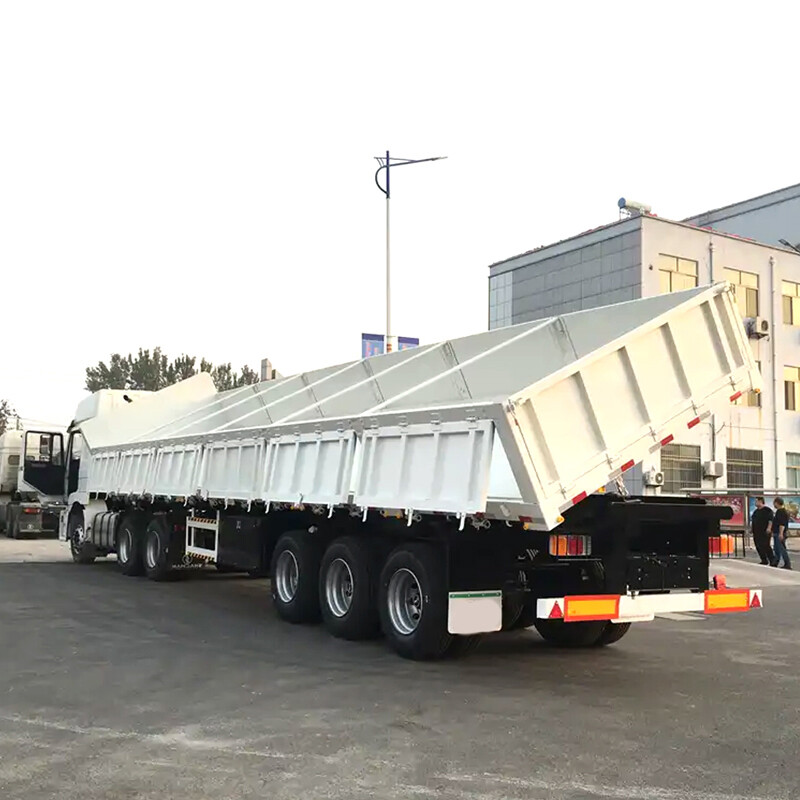

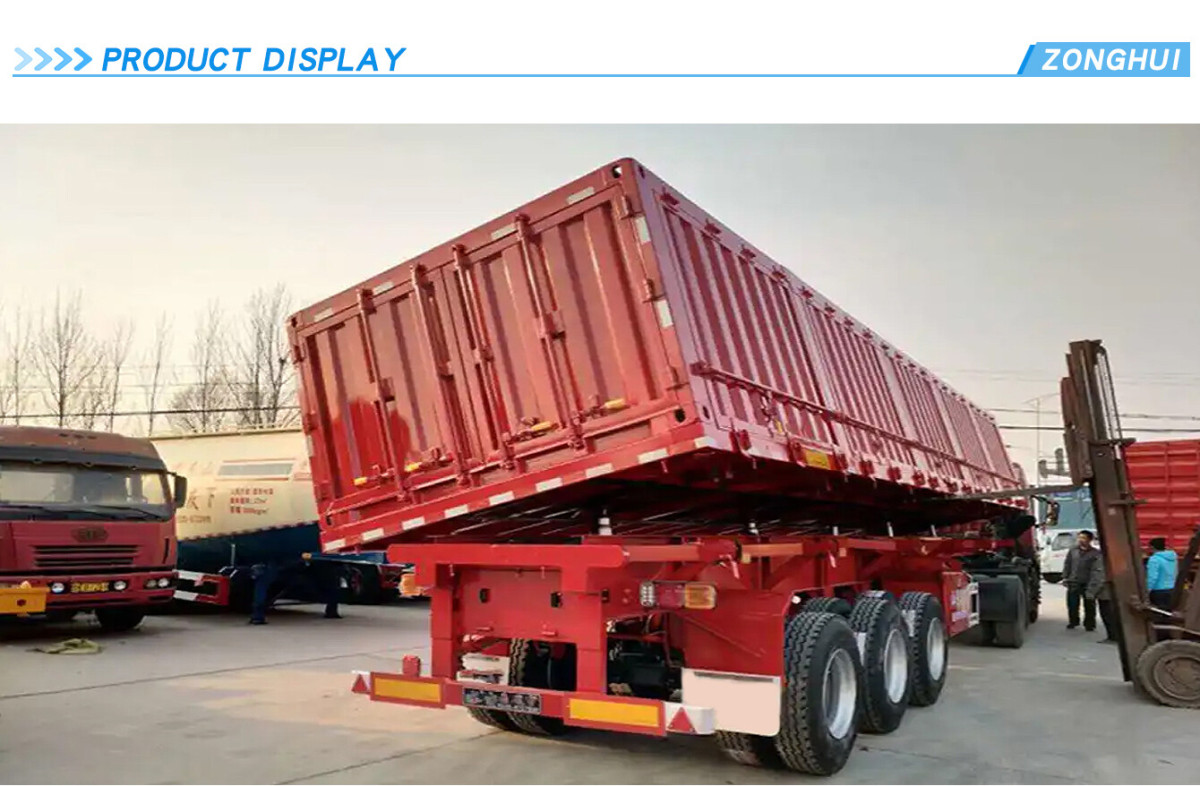

Tri Axle 60 Ton Side Tipper Trailers
Side tipper trailers adopt high quality steel sheet allow extra heavy 100 tons coal transport. Side tipper semi trailers can be used to carry large amount sand, coal at one time to lower transport cost. The side tipper trailers design to carry bulk cargo like sand , wheat, corn , coal , rocks, granite and other construction materials for up to 120 tons payload.

>>>>PRODUCT  DESCRIPTION

The side tipper trailers can do left tipping and right tipping. To increase the bearing ability of the side tipper semi trailer engineers design and workers welding small details special for our side tipping semi trailers to satisfy side tipper trailers buyer transport demand. The main bean build with thicker steel sheet and one sheet not welded two thin sheets. Side tipper trailers main bean by this way can service 100 tons payload for many years and without bend.


Specifications


  Outer Dimensions  13,000*2,650*3,306
  Axle space (mm)  7,230+1,313+1,310
  Tare weight (kg)  20,000
  Tire  Type: 12R22.5, equip 13 pcs per chassis, include 1 spare tire.
  Rim  Type: 9.0-22.5 equip 13 pcs per chassis.
  Axle  FUWA 16T*3 sets per chassis.
  King pin  JOST, 90#
  Suspension  3-axles reinforced mechanical Suspension
  Leaf spring  120*16mm, 12 pcs
  Landing gear  GOLDENSTONE 30T
  Hydraulic System  High quality China hydraulic system
  Brake system  Air brake dual chamber, 30 type on first axle, 30/30 type on last two axles WABCO brake valve.
  ABS  Non
  Electric system  24V,   LED lights.
  Tool box  1 set of steel box
  Spare tyre carrier  Equipment 1 set
  Color  By customer’s requirement.
  Painting  Primer and top coat, Polyurethane paint
