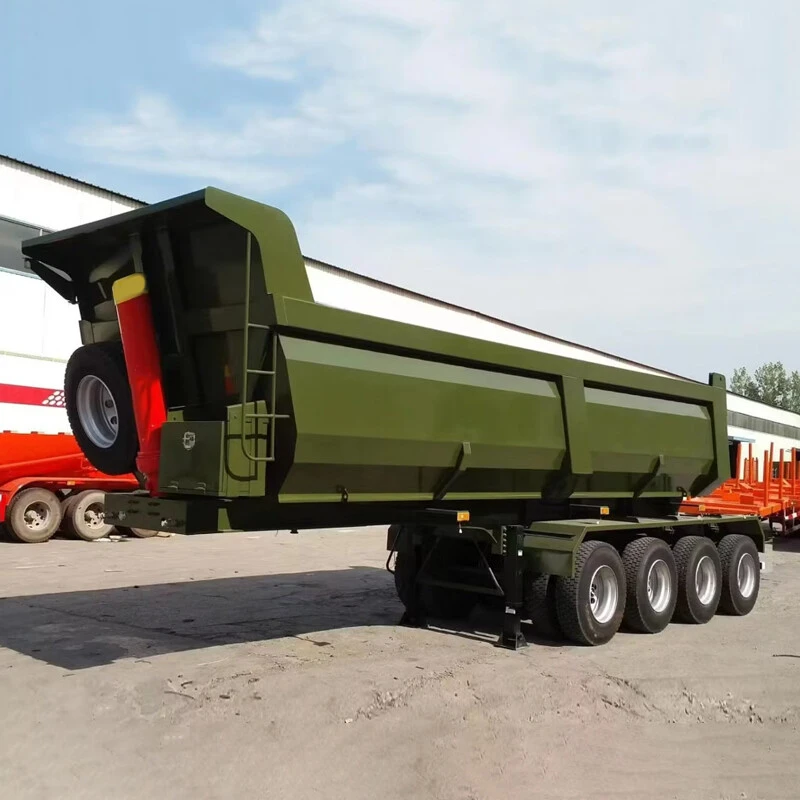

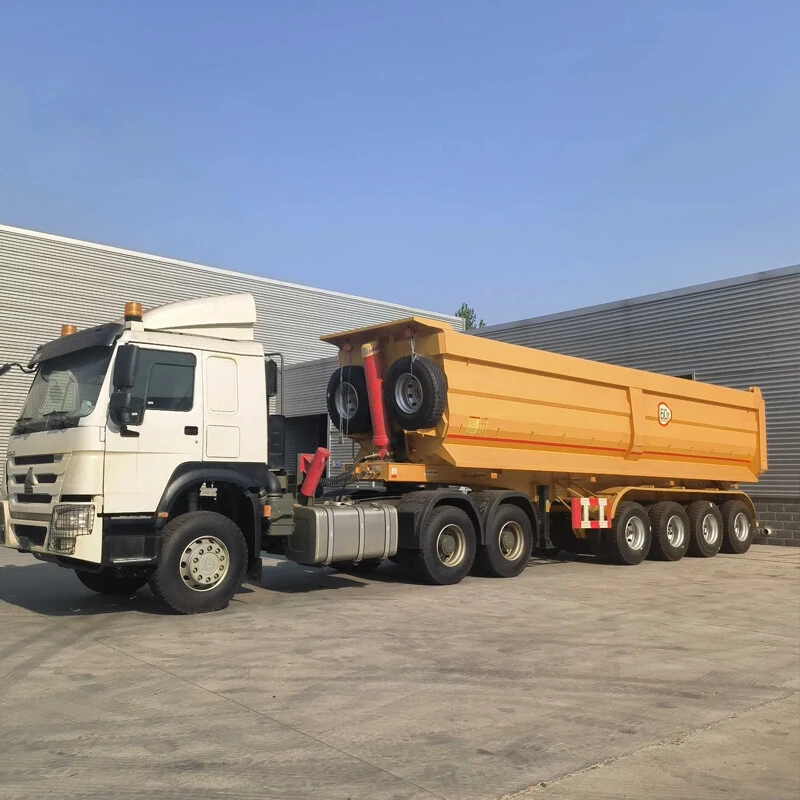

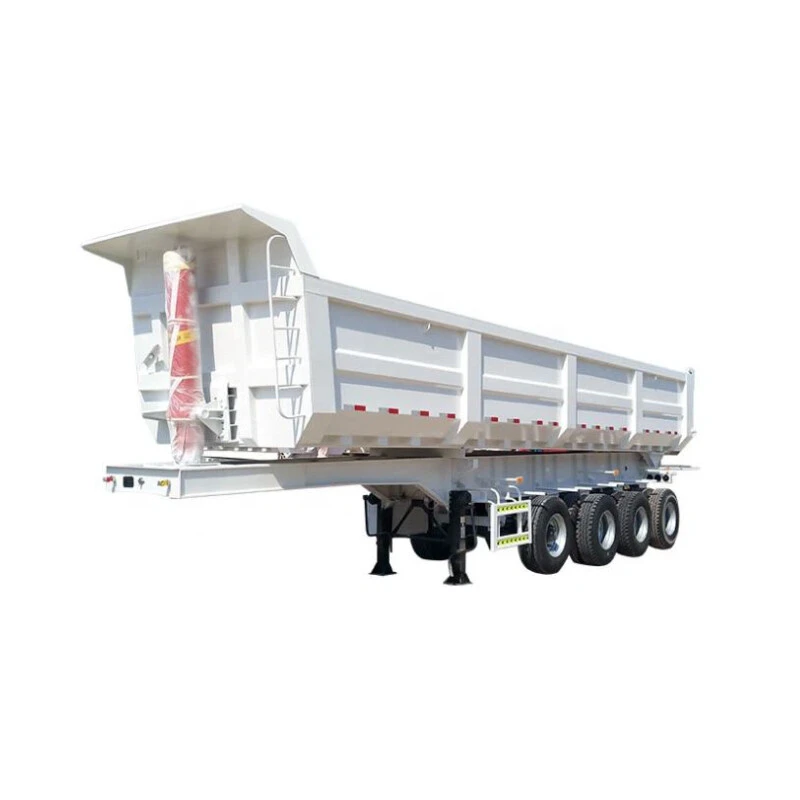

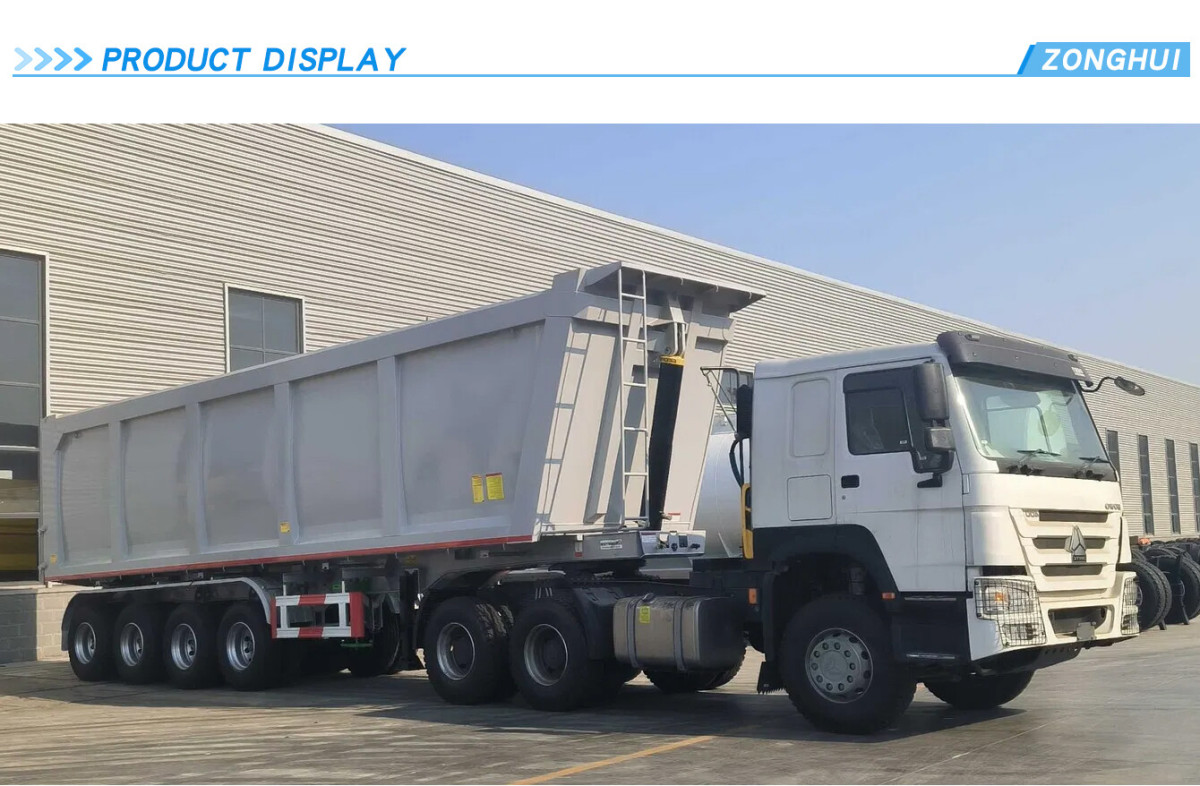

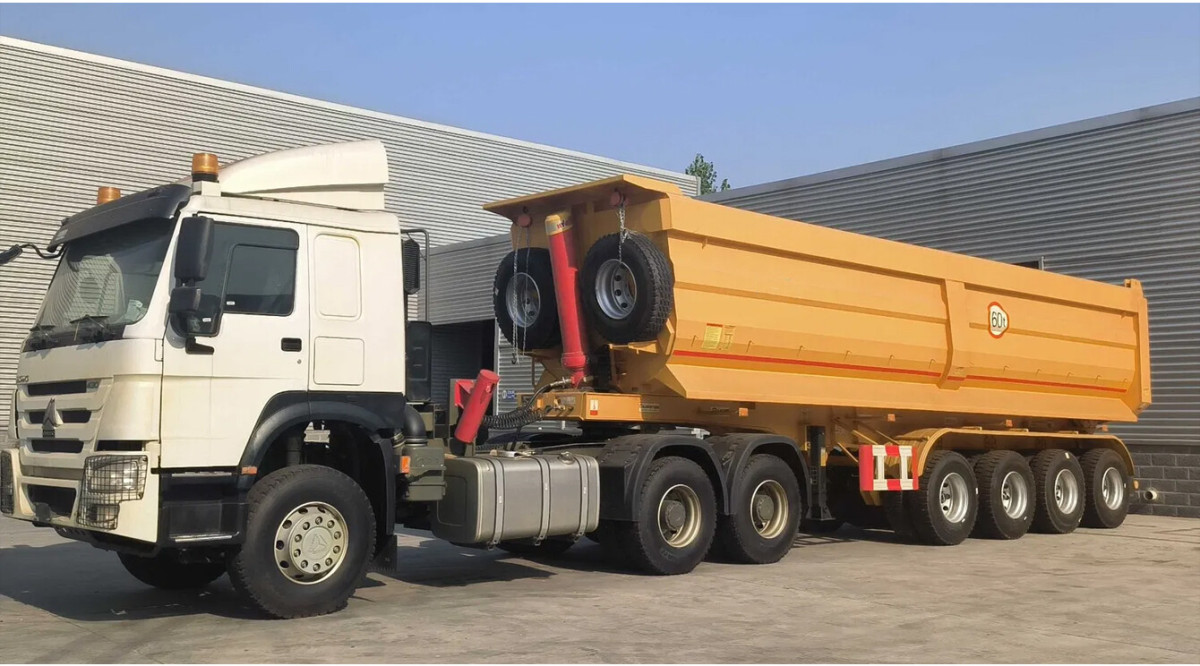

4 Axles U Shape 45CBM Dump Semi Trailer
1. This series dump trailer, dumper trailer, dumping trailer, tipping trailer, tipper trailer are mainly used in heavy duty transportation for bulk cargo transportin such as sand,grain,stone or cement.
2. The capacity is for 40tons-120tons , we can manufacture it according to your needs.
3. The axles can be FUWA / BPW with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc .

>>>>PRODUCT  DESCRIPTION

Specifications


  Shape  U or Square shape
  Dimension  11.7m*2.6m*3.76m (Outside)
  Box Dimension  10.735m*2.388m*1.8m (45Cubic)
  Payload  80Ton

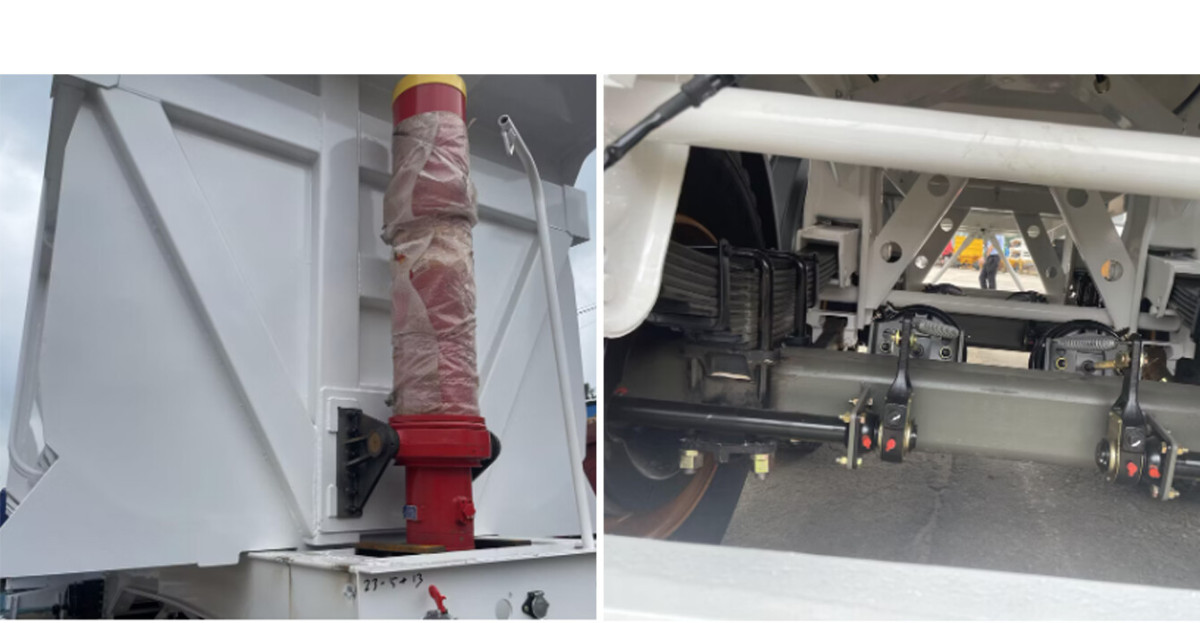

  Lifting system  HYVA brand or Chinese brand
  Frame  Welding design or Special design Two beams
  Frame Beam  Upper and lower plate is 18mm and 20mm, Double middle is double 10 mm. Height is 500 mm
  Steel thickness  Bottom plate:8mm Side plate:6mm
  Axle  4pcs heavy duty axles
  Landing Gear  JOST brand
  King Pin  2.0 or 3.5 inch bolt-in king pi
  Suspension  Front axle with air suspension & liftable
  Rear 3 axles with Mechanical suspension
  Leaf Spring  90mm(W)*16mm(T)*10 Layer
  Tire  315/80R22.5*16pcs
  Rim  Steel rims*16pcs
  Accessories  One standard tool box
  Spare tire rack  2 pcs

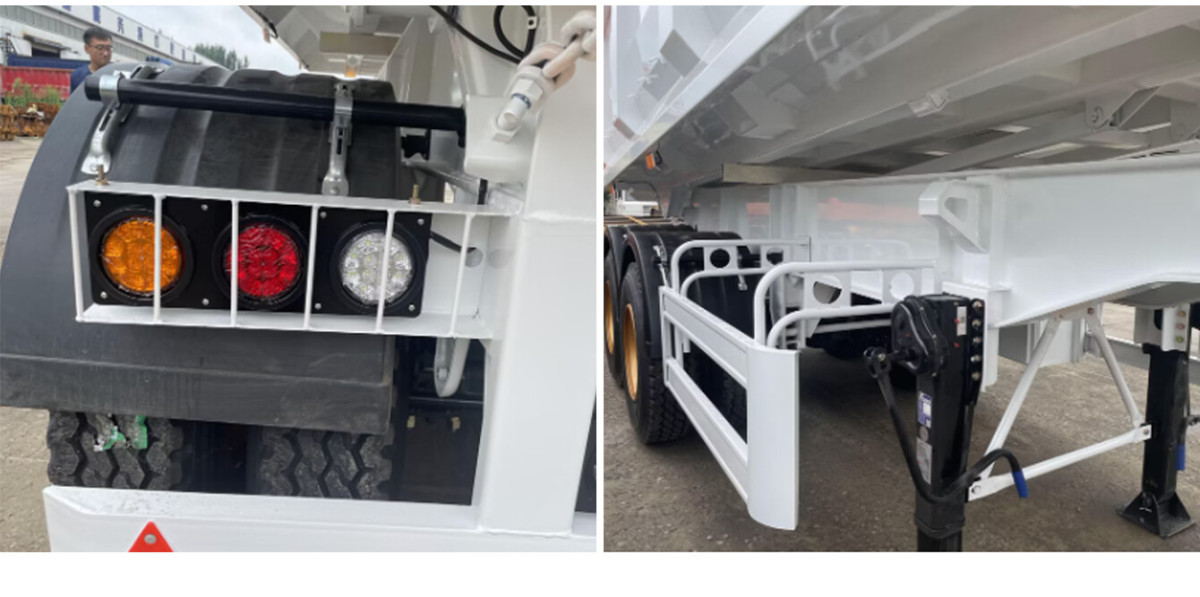

  Electrical system  24 volt electrical system
