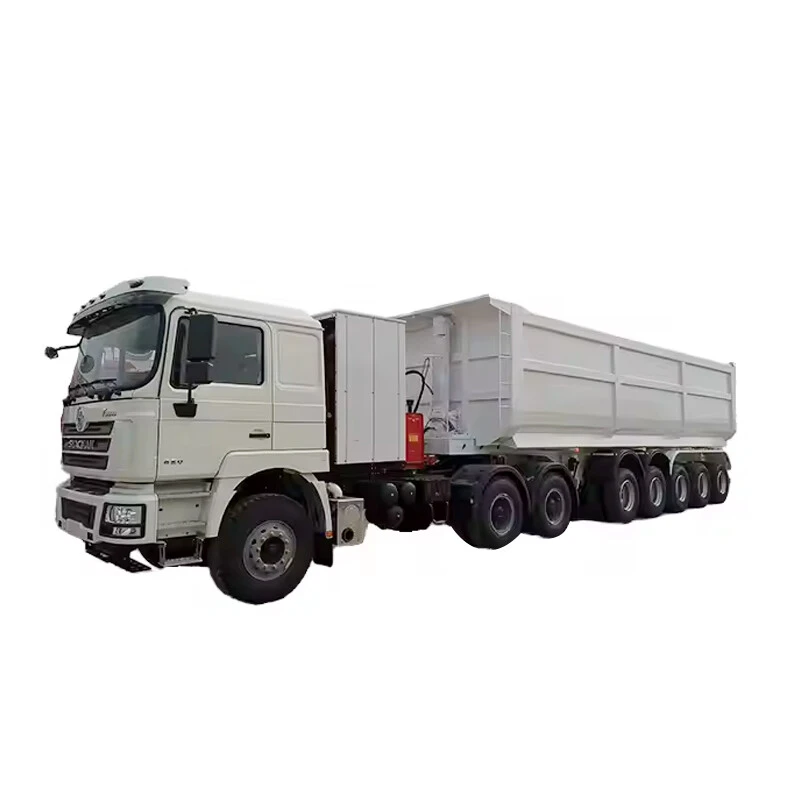

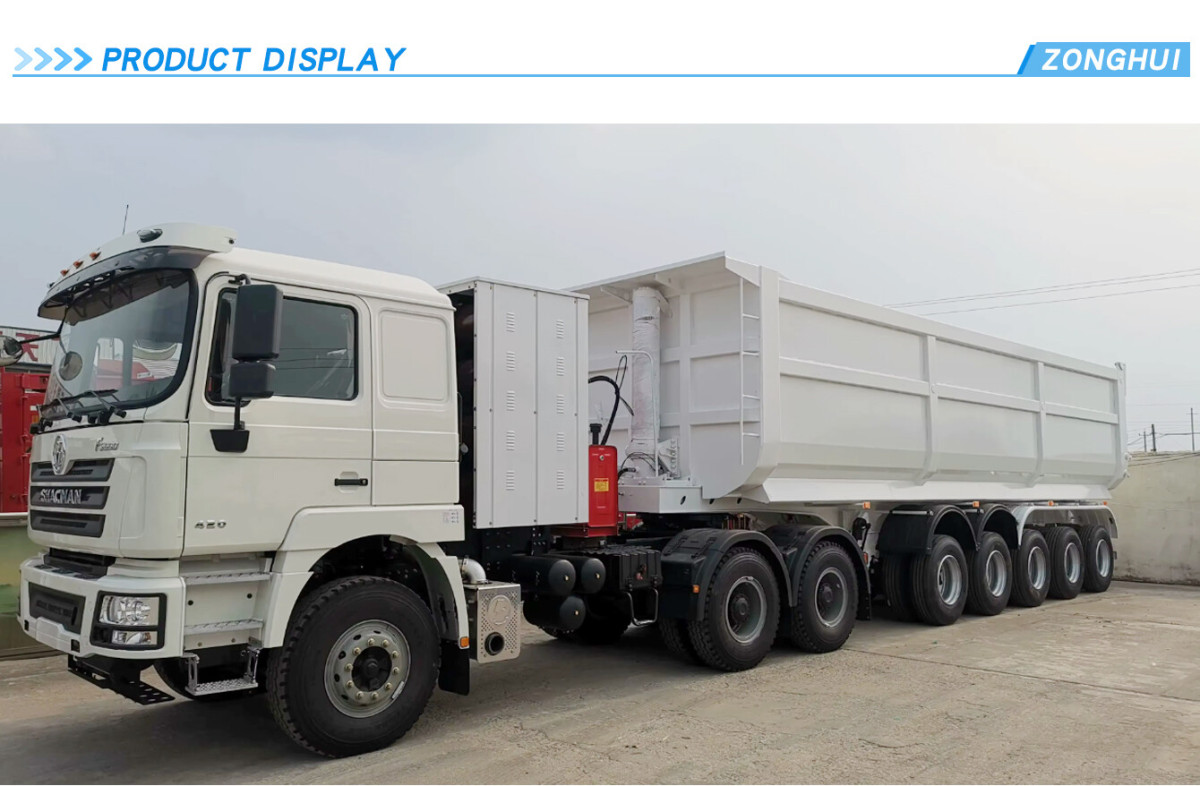

5 Axles 45 Cubic Meters Dumper Trailer
Dump tipper trailer suitable for sand, gravel, loose goods , construction material, ect long destance transport , dumper trailer volume according to you need to design, 25 cbm, 30 cbm , 35 cbm , 40 cbm, 45 cbm and so on.
Email
WhatsApp

>>>>PRODUCT  DESCRIPTION

Specifications


  Shape  U shape
  Dimension  11.7m*2.5m*3.4m (Outside)
  Box Dimension  11m*2.35m*1.8m  45Cubic
  Payload  70T
  Tare weight  About 14T

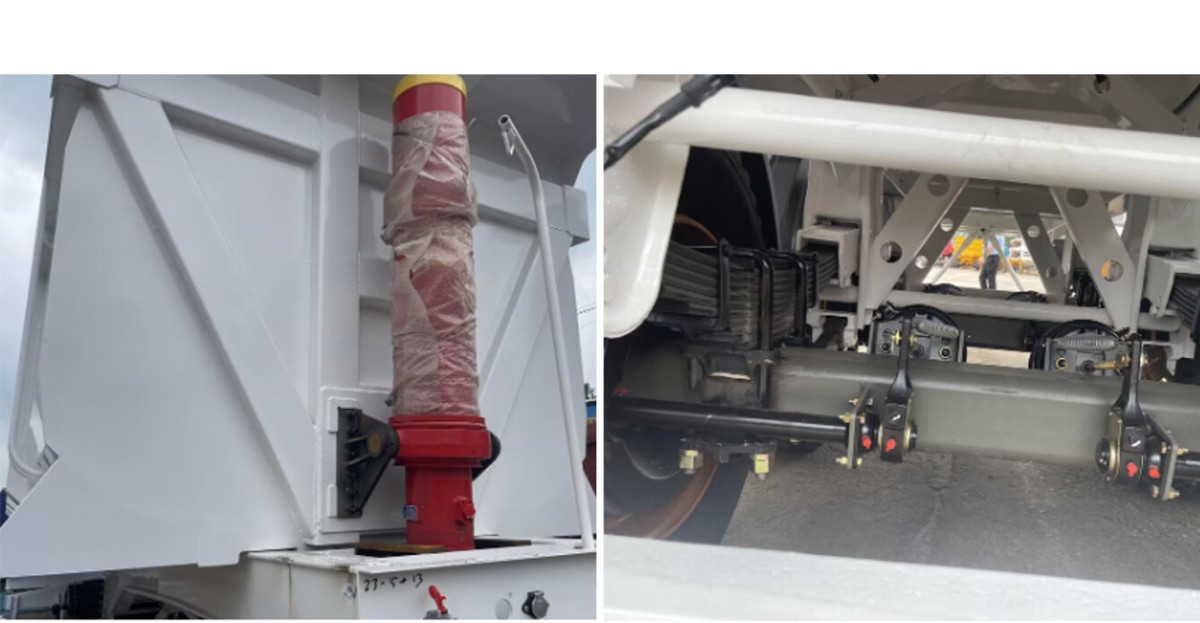

  Lifting system  214 hydraulic jacking
  Steel thickness  Bottom plate :8mm Side plate:6mm
  Axle  5 axles ( front 2 axles can lift)
  Landing Gear  heavy duty landing gear 28T
  King Pin  2.00 or 3.5 inch bolt-in king pin
  Suspension  Mechanical suspension and air suspension
  Leaf Spring(Strength)  90mm(W)*16mm(T)*10 Layer
  Tire  385/65R22.2*4pcs
  315/80R22.5*12pcs
  Painting  Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
  Shipping Terms  By Flat rack or by bulk
