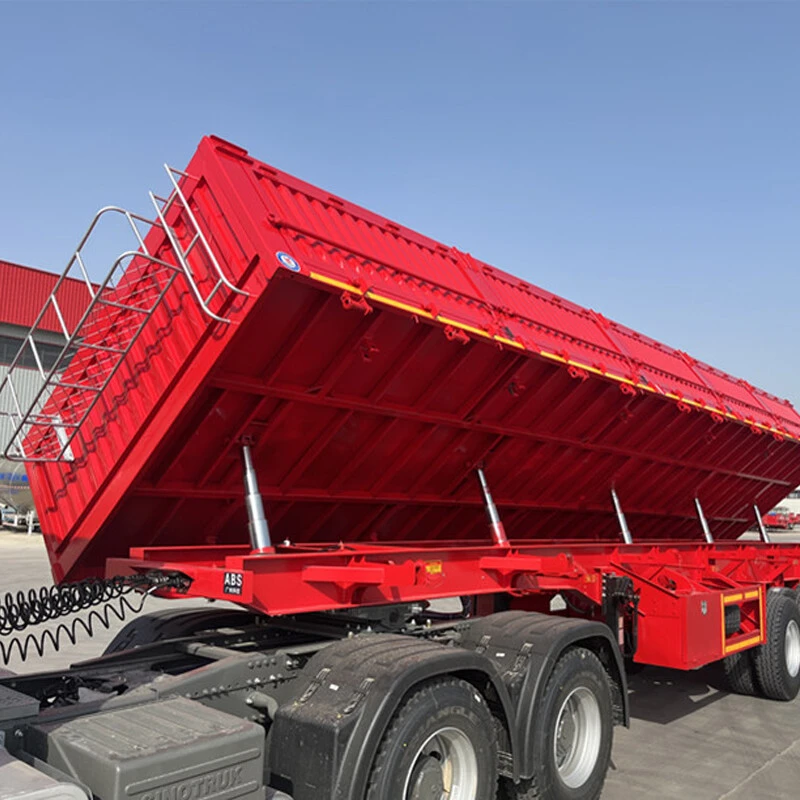

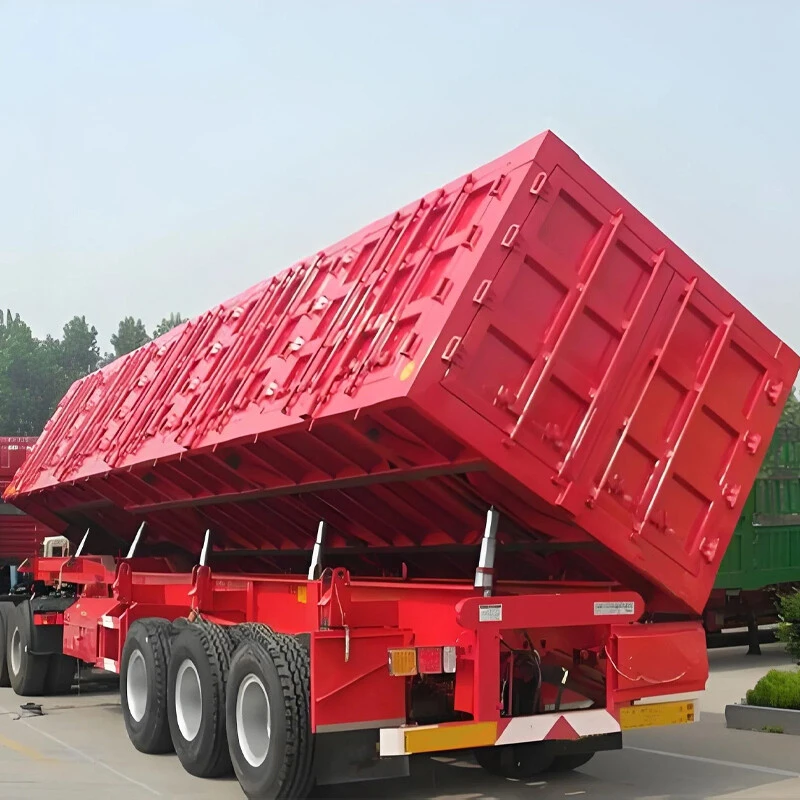

50 Tons Side Dump Trailers
Side tipper trailers adopt high quality steel sheet allow extra heavy 100 tons coal transport. Side tipper semi trailers can be used to carry large amount sand, coal at one time to lower transport cost. The side tipper trailers design to carry bulk cargo like sand , wheat, corn , coal , rocks, granite and other construction materials for up to 120 tons payload.

>>>>PRODUCT  DESCRIPTION

The side tipper trailers can do left tipping and right tipping. To increase the bearing ability of the side tipper semi trailer engineers design and workers welding small details special for our side tipping semi trailers to satisfy side tipper trailers buyer transport demand. The main bean build with thicker steel sheet and one sheet not welded two thin sheets. Side tipper trailers main bean by this way can service 100 tons payload for many years and without bend.


Specifications


  Dimension  13m×2.5m×3.7m (Outside) 13m×2.5m×2.2m(Box size )
  Payload  30T
  Volume  70cbm
  Tare weight  About 10T
  Main beam

  Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic

  Submerged-Arc processes.

  Frame Beam  Top Flange 14mm,width 140mm; Middle
  Flange 8mm; Bottom Flange 16mm,width 140mm,Main beam 500mm
  Bottom Plate Thickness  3mm checkered plate
  Thickness of the bottom plate  8 mm
  Thickness of side plate  6 mm
  Axle  3 axles , 13T FD brand , 16ton brake pads

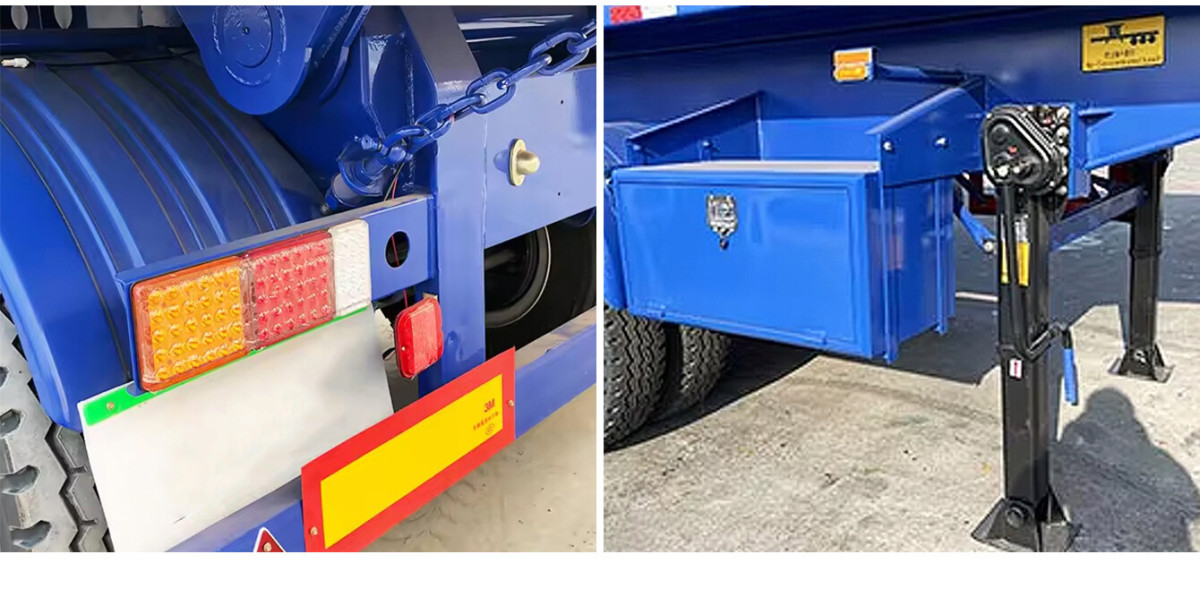

  Landing Gear  28T lifting capacity with two speed
  King Pin  2.00 or 3.5 inch bolt-in king pin
  Suspension  Mechanical suspension reforced type
  Leaf Spring  90mm(W)*16mm(T)*10 Layer
  Pneumatic Braking System  Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks
  Tire  12R22.5*12pcs
