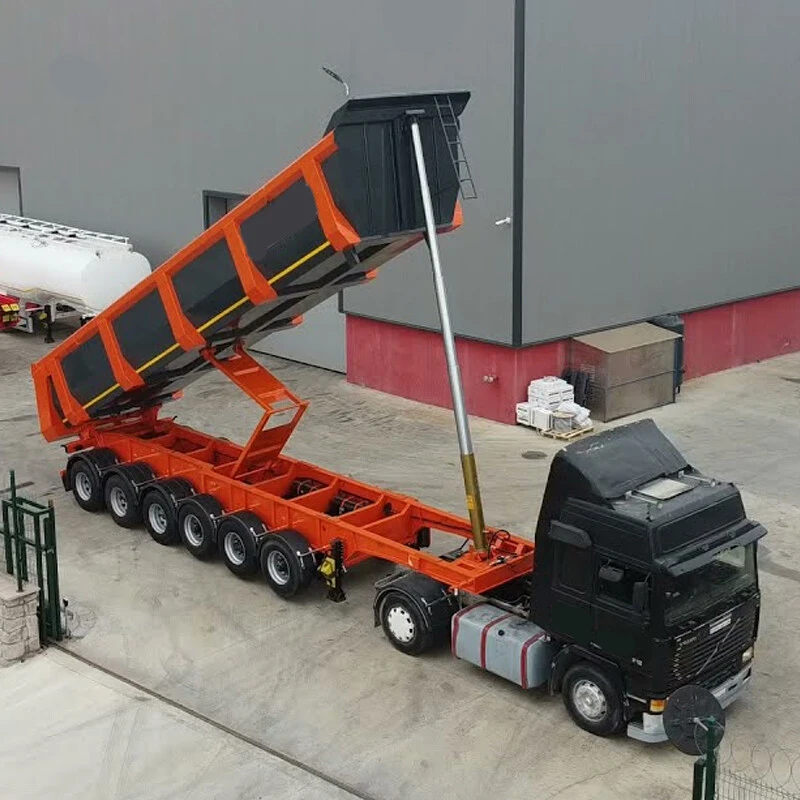

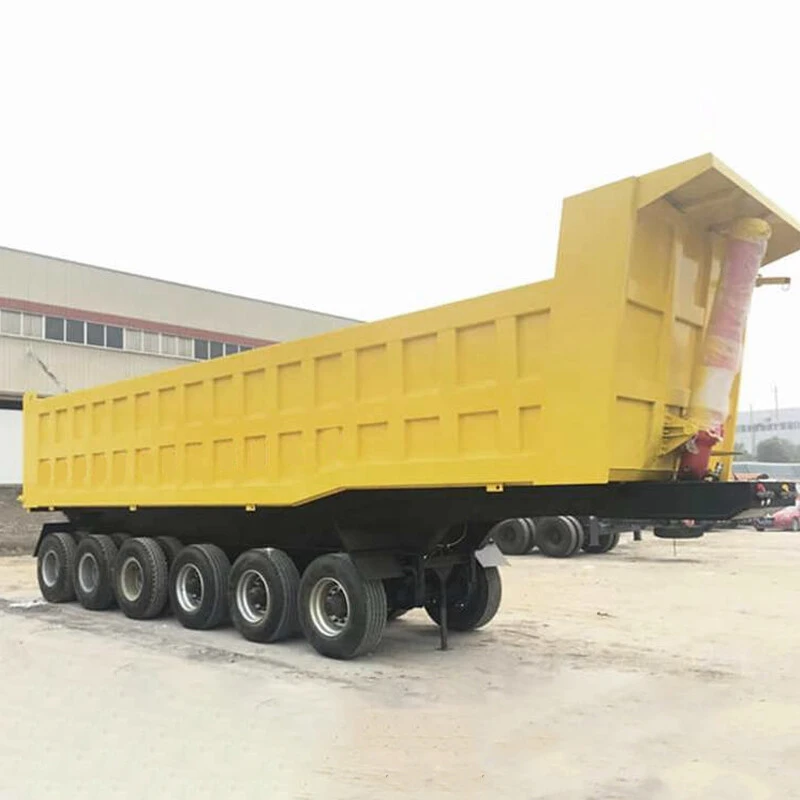

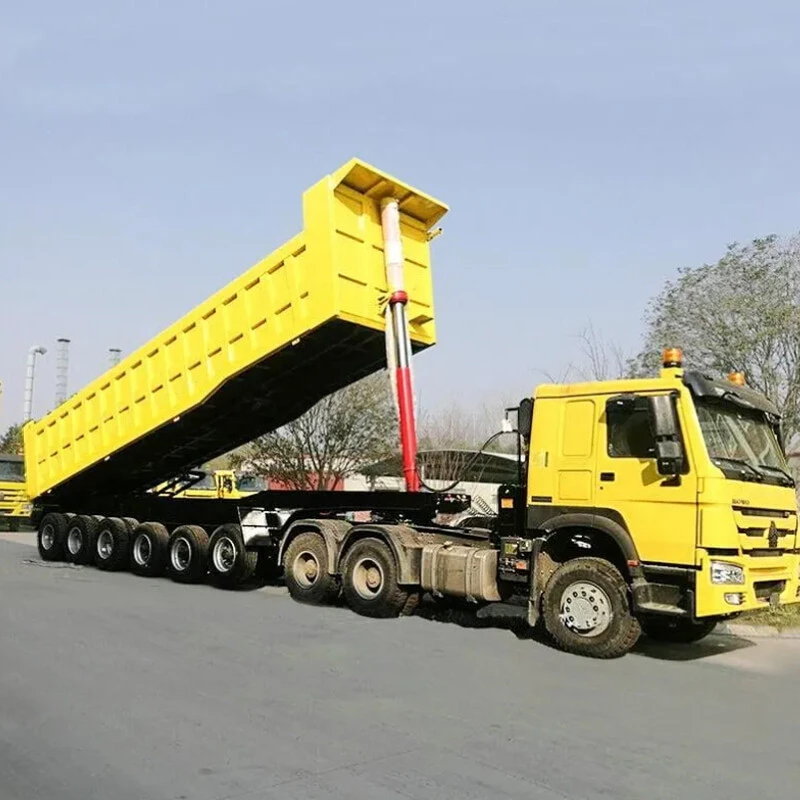

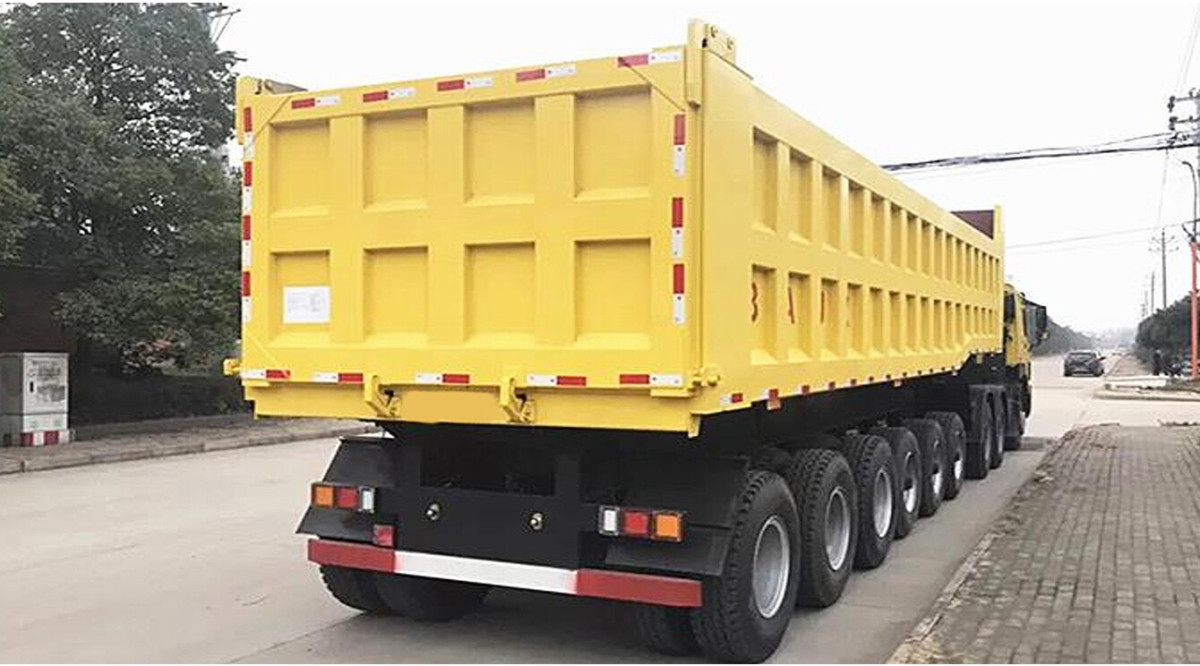

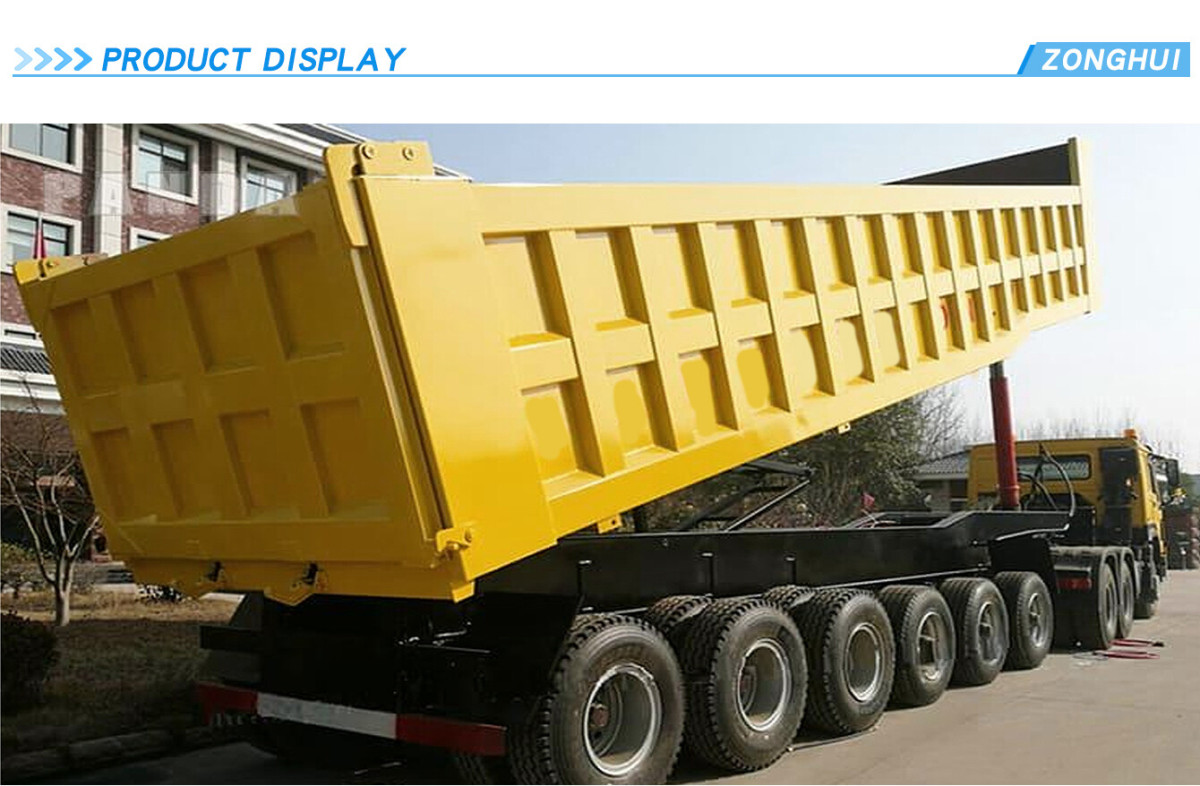

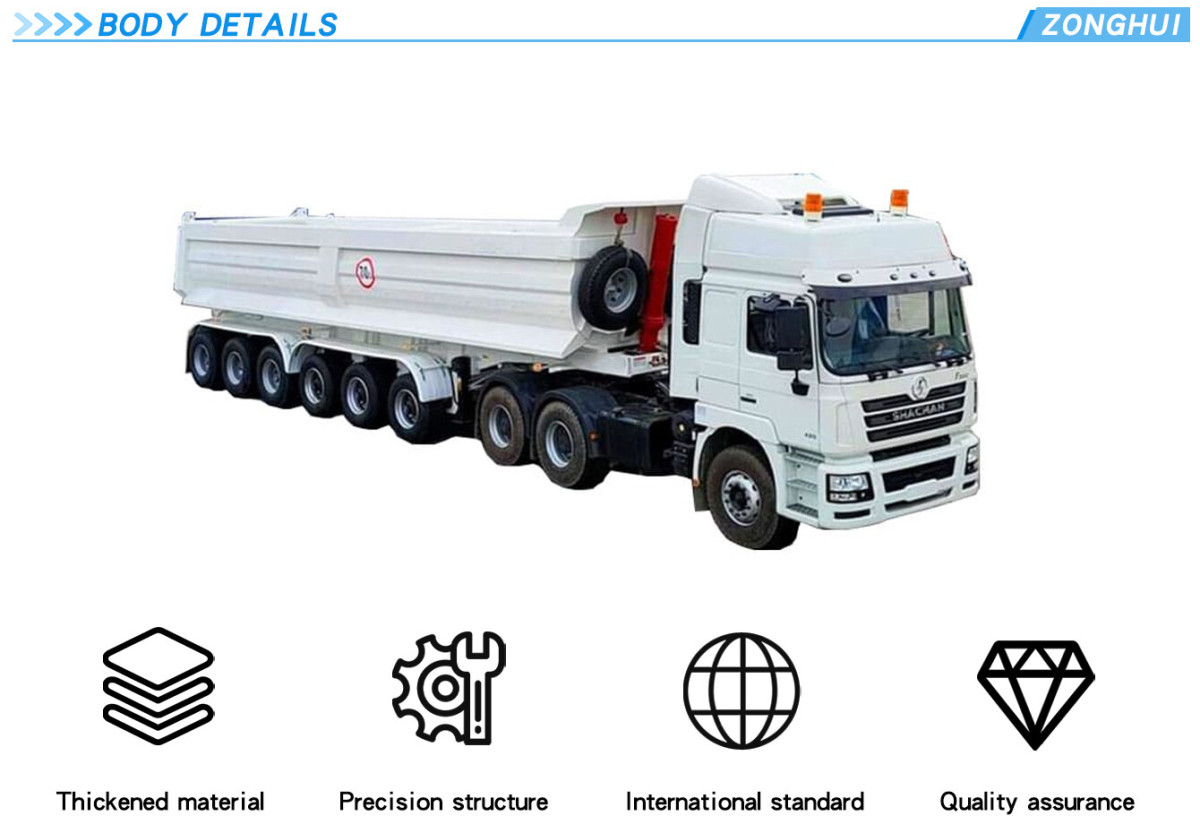

6 Axles 45 CBM Tipper Semi Trailer
Tipper semi trailer capacity: 45CBM or Customized
Shape: U / Square
Axles: 6 axles, FUWA / BPW / Chinese brand
Payload: 60-120ton
Hydraulic oil cylinder: HYVA brand
Bottom & Side plate thickness: 10 & 8 mm
Email
WhatsApp

>>>>PRODUCT  DESCRIPTION

Specifications


  Shape  U or Square shape
  Dimension  12.1m*2.6m*3.76m (45CBM)
  Payload  80-120Ton

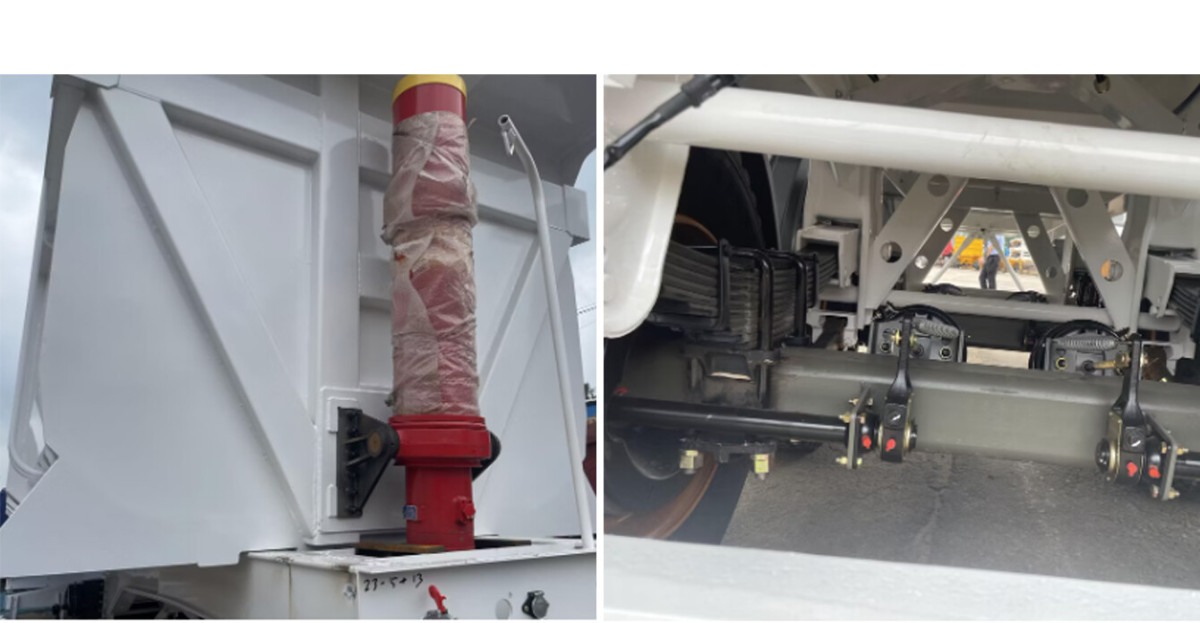

  Lifting system  HYVA brand 214 model
  Frame  Welding design or Special design Two beams.Square beam, connected by bolts and nuts, Q345B carbon steel material
  Frame Beam  Upper and lower plate is 18mm and 20mm, Double middle is double 10 mm.Height is 500 mm
  Steel thickness  Bottom plate:10mm Side plate:8mm
  Axle  Front 3 pcs 14ton axles; Rear 3 pcs 16ton axles
  Landing Gear  JOST brand
  King Pin  2.0 or 3.5 inch bolt-in king pin, JOST brand
  Accessories  One standard tool box
  Spare tire rack  2 pcs

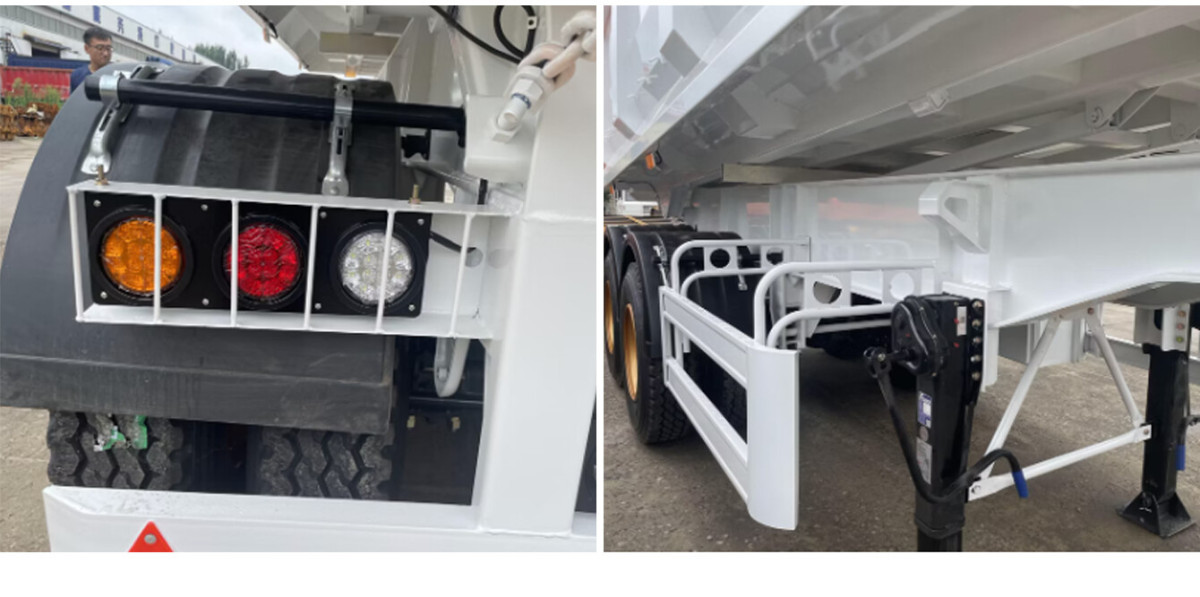

  Electrical system  24 volt electrical system
  Painting  Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
  Color & LOGO  As customer’s demand
  Shipping Terms  By Bulk cargo ship
