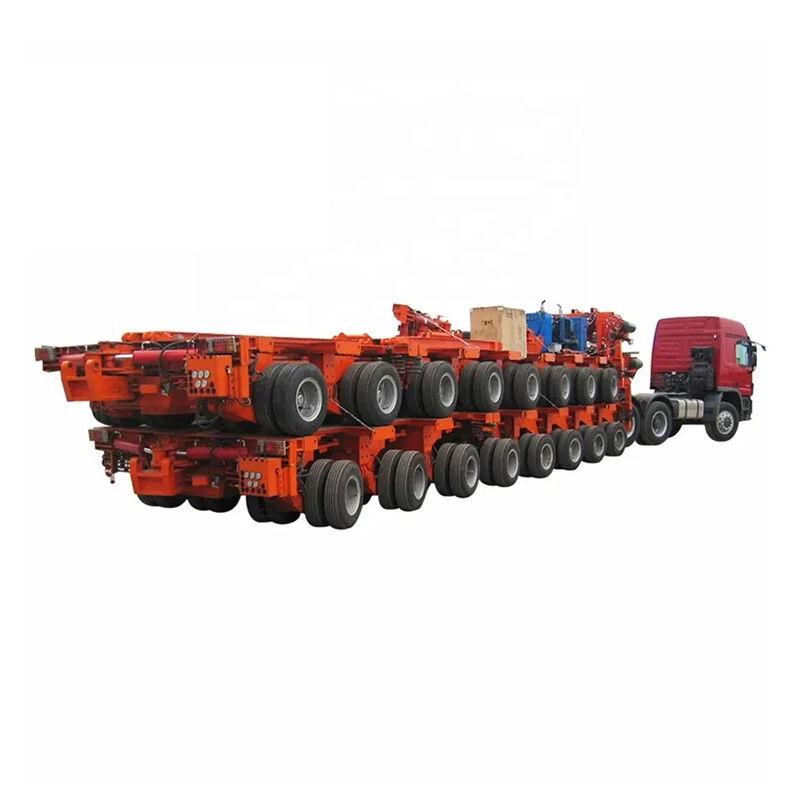

Multifunctional Modular Trailer

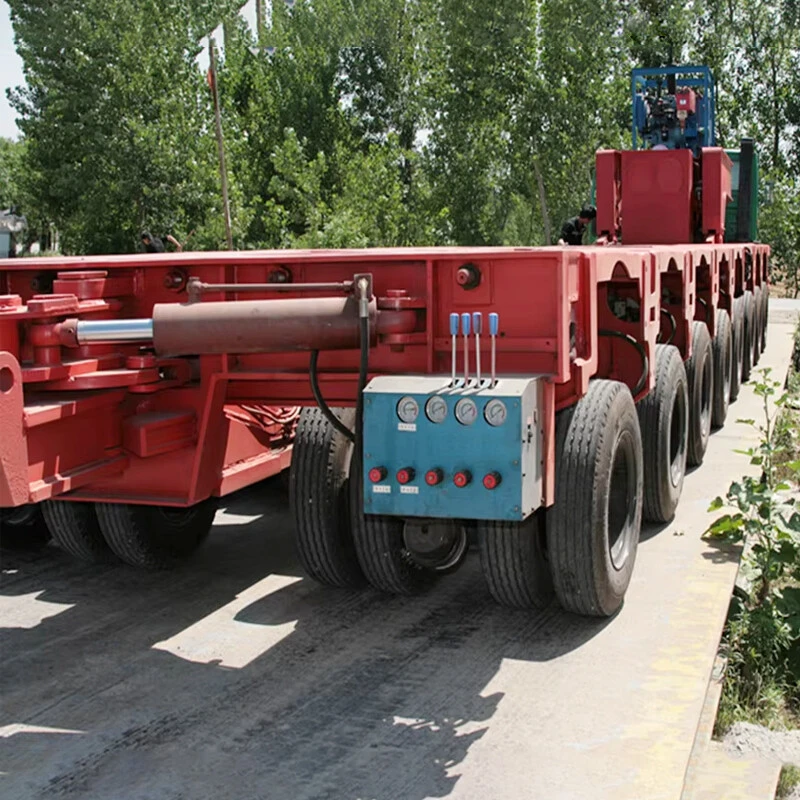

The modular trailer is equipped with hydraulic system giving the trailer a very smooth ride and maintain loading deck horizontal even in poor road condition.
The suspension system is interconnected to hydraulic support circuit by 3 point support. Within these support circuits an equal axle load be achieved.

>>>>PRODUCT  DESCRIPTION

Specifications


  L*W*H(mm)  22979*2990*1070(±300)

  Rated loading capacity(tons)  270

  Wheel Base(mm)  1550

  Wheel Track(mm)  735/1820

  Tyres(pcs)  96  Size:215/75R17.5  Double Coin brand
  Wheel Rims(pcs)  96  Size:6.00-17.5  Zhengxing brand
  Main material  Q550D

  Max.steering angle for the first wheel(℃)  55

  Suspension travel(mm)  ±300

  Axle (pcs)  24
  YUEK
  Connectors

  DMASS
  Multiple Unit Vales

  Bondioli&Pavesi
  Relay Vales

  WABCO
  Diesel Engine
